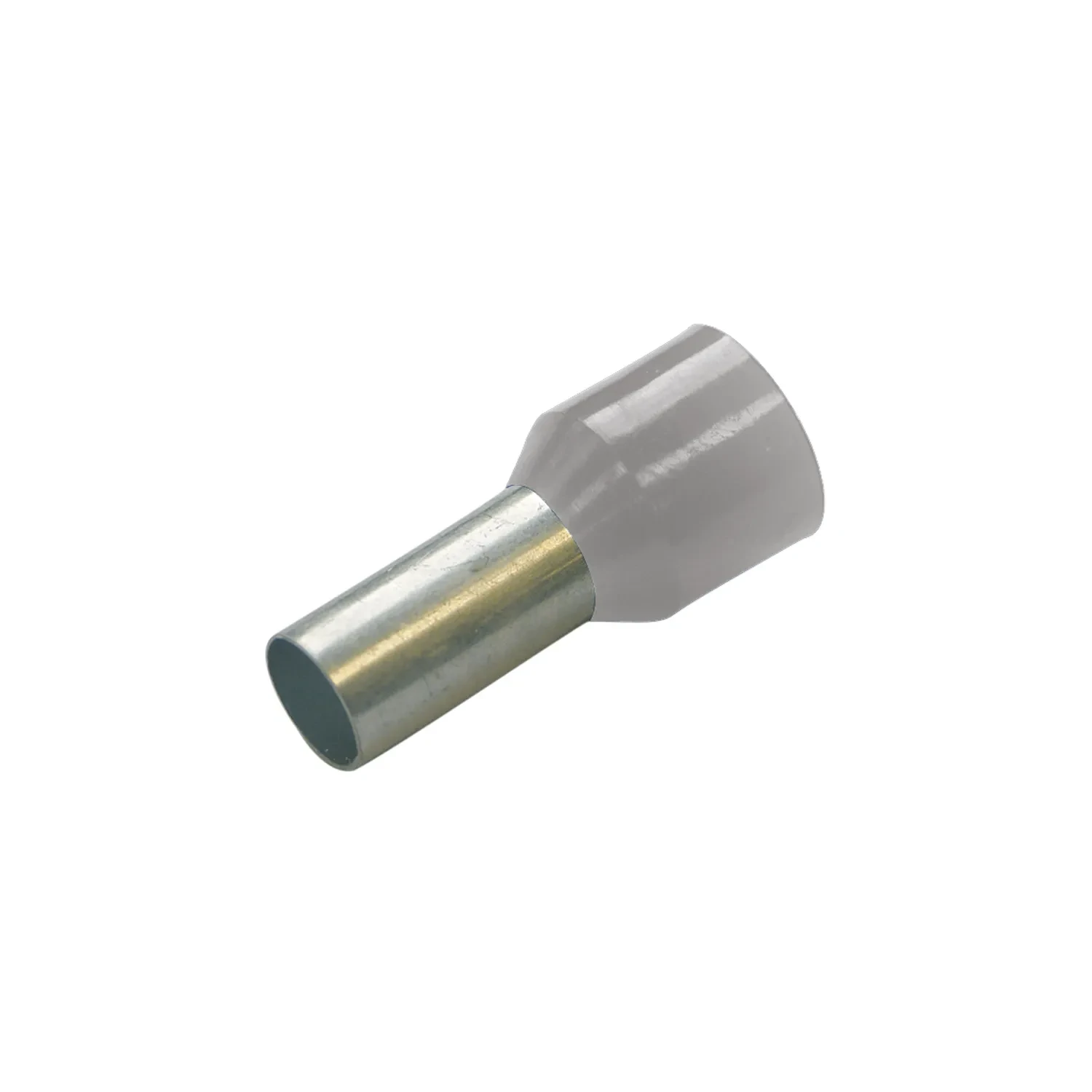

Haupa Bootlace Ferrule 4mm2 18mm Grey DIN 46228 Part 4

Photo is representative

Haupa Bootlace Ferrule 4mm2 18mm Grey DIN 46228 Part 4

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 270816
GTIN 4011923096526
Stock status: In stock

bag of 100

More arriving soon

Net price: £3.64

Gross price

£4.37

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Insulated bootlace ferrule for 4mm2 flexible stranded conductors. DIN 46228 Part 4 dimensions, grey colour coding to DIN colour range III.

Suited to terminal blocks and control panel wiring where strand fraying at terminations needs to be controlled.

  • Conductor size: 4mm²
  • Pin length: 18mm
  • Total length: 25.7mm
  • Material: electrolytic copper, tin-plated
  • Colour: grey (DIN colour range III)
Specifications

Conductor Size

4 mm²

Pin Length

18 mm

Total Length

25.7 mm

Inner Diameter (d1)

2.9 mm

Outer Diameter (d2)

5.6 mm

Wall Thickness (s1)

0.2 mm

Colour

Grey

Material

Electrolytic copper, tin-plated

Insulated

Yes

Standard

DIN 46228 Part 4

DIN Colour Range

III

Pack Quantity

100
