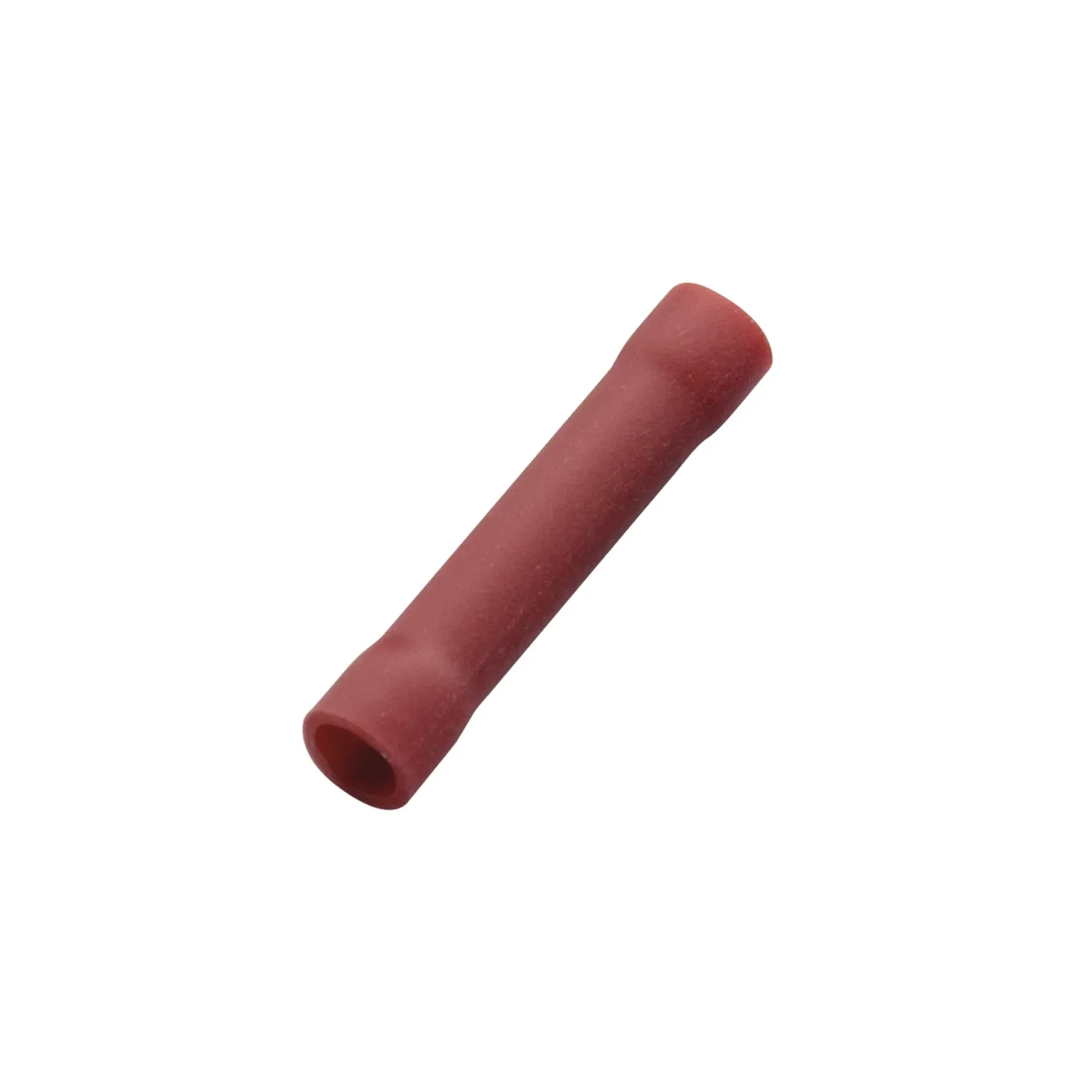

Haupa Insulated Butt Connector 0.5-1.0mm² Red PVC DIN Version

Photo is representative

Haupa Insulated Butt Connector 0.5-1.0mm² Red PVC DIN Version

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 260350
GTIN —
Stock status: In stock

bag of 100

More arriving soon

Net price: £8.19

Gross price

£9.83

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Tin-plated electrolytic copper butt connector for 0.5–1.0mm² wire. PVC-insulated with an expanded insulating sleeve — no secondary heat shrink needed. Suitable for harmonised cables. DIN version.

  • Wire range: 0.5–1.0mm²
  • Insulation: PVC, red, expanded sleeve
  • Barrel: tin-plated copper, percussion crimp
  • Total length: 22.7mm | Barrel length: 15mm
  • Inner bore (d1): 1.7mm | Outer dia (d2): 4mm
Specifications

Wire Cross Section

0.5–1.0mm²

Insulation Colour

Red

Insulation Material

PVC

Conductor Material

Copper

Surface Finish

Tinned

Connection Type

Percussion connector

Model Standard

DIN version

Total Length (TL)

22.7mm

Barrel Length (I)

15mm

Inner Bore Diameter (d1)

1.7mm

Outer Diameter (d2)

4mm
