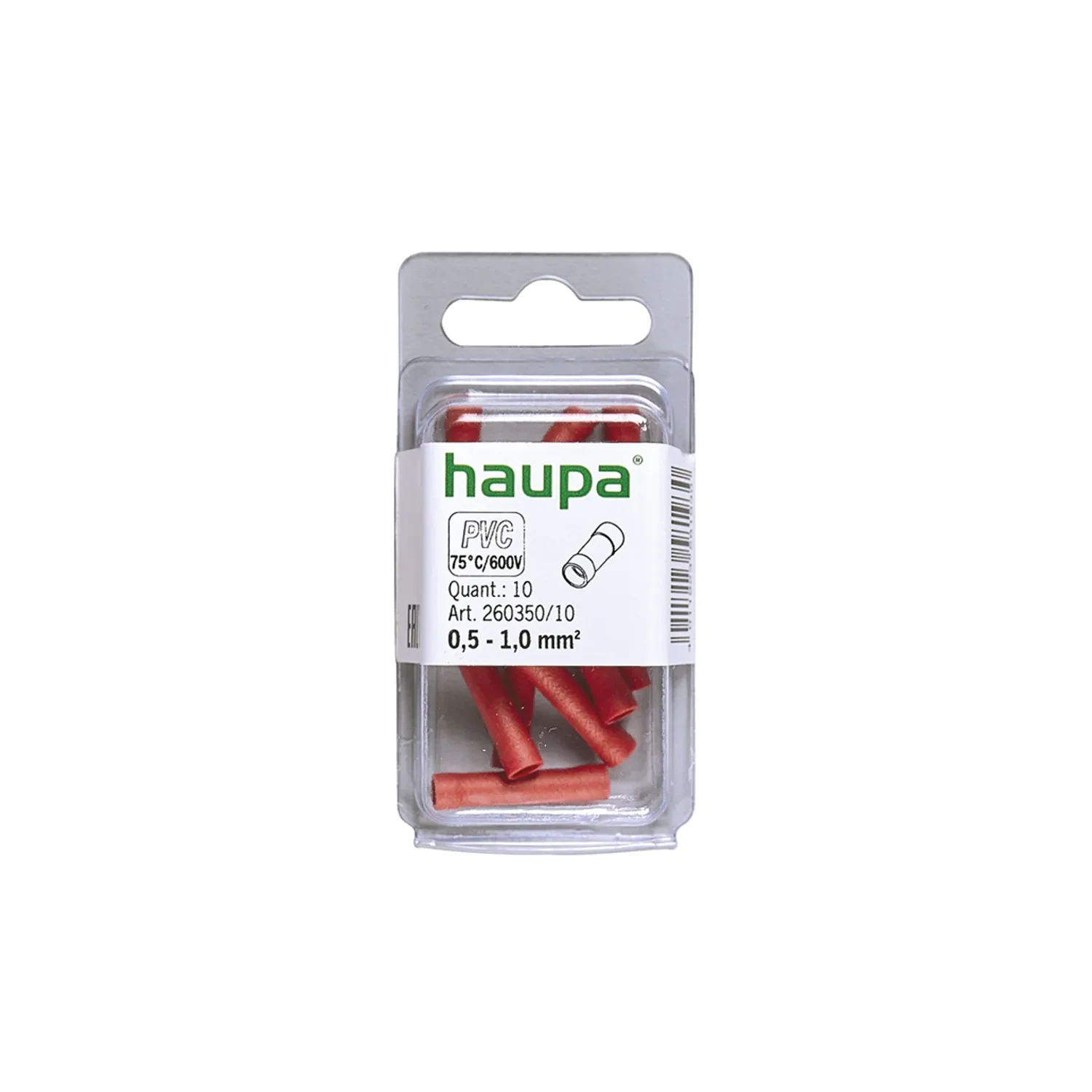

Haupa Insulated Butt Connector 0.5-1.0mm2 Red PVC DIN

Photo is representative

Haupa Insulated Butt Connector 0.5-1.0mm2 Red PVC DIN

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 26035010
GTIN —
Stock status: In stock

pack of 10

Net price: £2.27

Gross price

£2.72

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Tin-plated electrolytic copper butt splice, PVC-insulated with an expanded insulating sleeve. DIN version, sized for 0.5–1.0mm² harmonised cables.

Suitable for low-voltage crimped joints where a single-piece insulated splice is needed. No secondary heat shrink required.

  • Wire range: 0.5–1.0mm²
  • Barrel (TL): 22.7mm total length, 15mm crimp length
  • Barrel bore (d1): 1.7mm, outer diameter (d2): 4mm
  • Insulation: PVC, red
  • Material: Electrolytic copper, tin-plated
Specifications

Wire Cross Section

0.5–1.0mm²

Insulation Colour

Red

Insulation Material

PVC

Conductor Material

Copper

Surface Finish

Tinned

Total Length (TL)

22.7mm

Crimp Length (I)

15mm

Bore Diameter (d1)

1.7mm

Outer Diameter (d2)

4mm

Standard

DIN version

Connection Type

Percussion connector
