HAUPA Insulated Butt Connector 1.5 2.5mm2 Blue PVC DIN Version

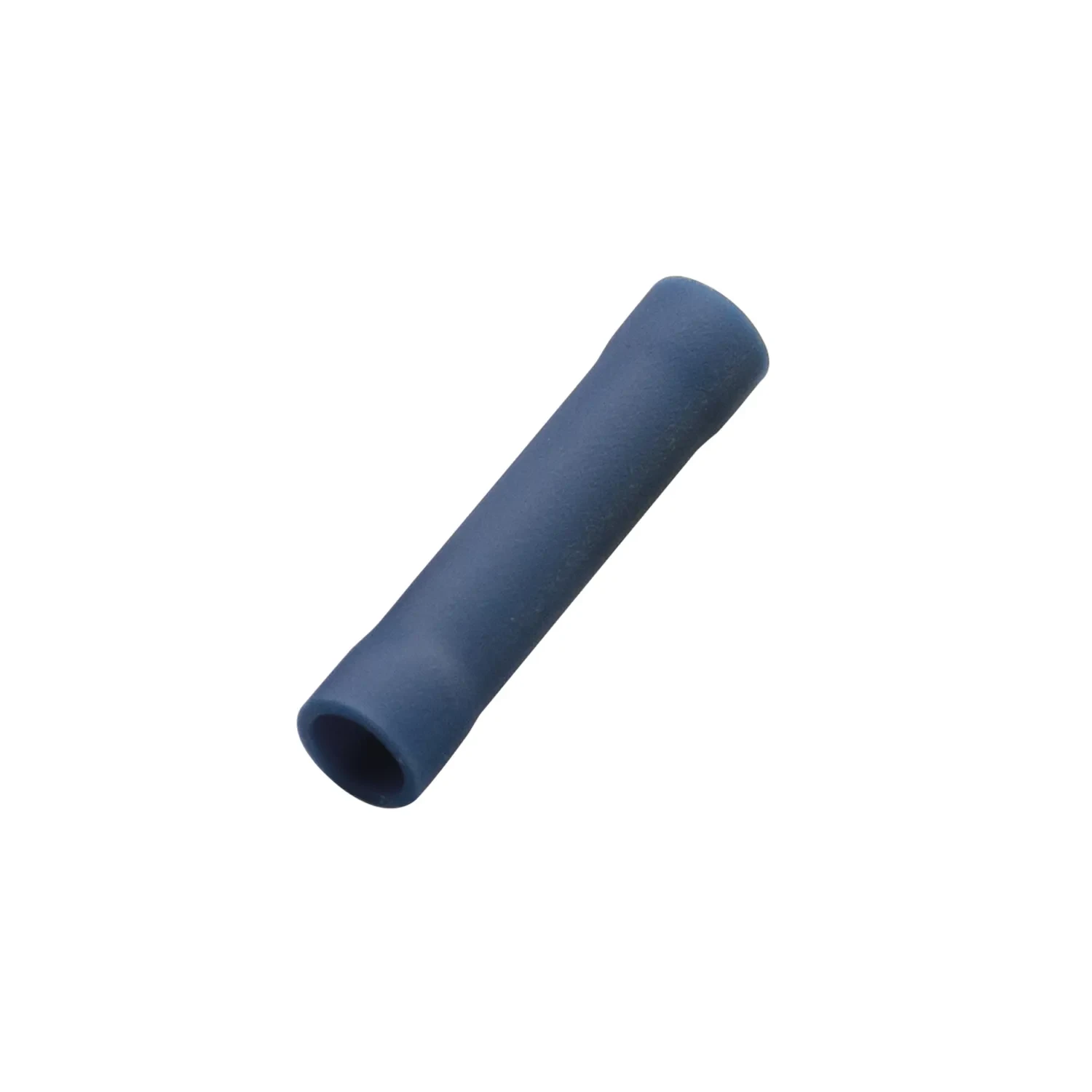

Photo is representative

HAUPA Insulated Butt Connector 1.5 2.5mm2 Blue PVC DIN Version

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 260352
GTIN —
Stock status: In stock

bag of 100

More arriving soon

Net price: £12.04

Gross price

£14.45

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Tin-plated electrolytic copper butt connectors from HAUPA, DIN version. Blue PVC insulation with expanded insulating sleeve — no secondary heat shrink needed. Suitable for harmonised cables in the 1.5–2.5mm² range.

Easy entry barrel speeds up termination on the job.

  • Wire range: 1.5–2.5mm²
  • Barrel inner diameter (d1): 2.3mm
  • Outer diameter (d2): 4.5mm
  • Total length: 22.7mm
  • Insulated length: 15mm
Specifications

Wire Range

1.5–2.5mm²

Colour

Blue

Insulation

PVC

Material

Copper

Surface Protection

Tinned

d1 (Inner Barrel Diameter)

2.3mm

d2 (Outer Diameter)

4.5mm

Total Length (TL)

22.7mm

Insulated Length

15mm

Model

DIN version

Connection Type

Percussion connector
