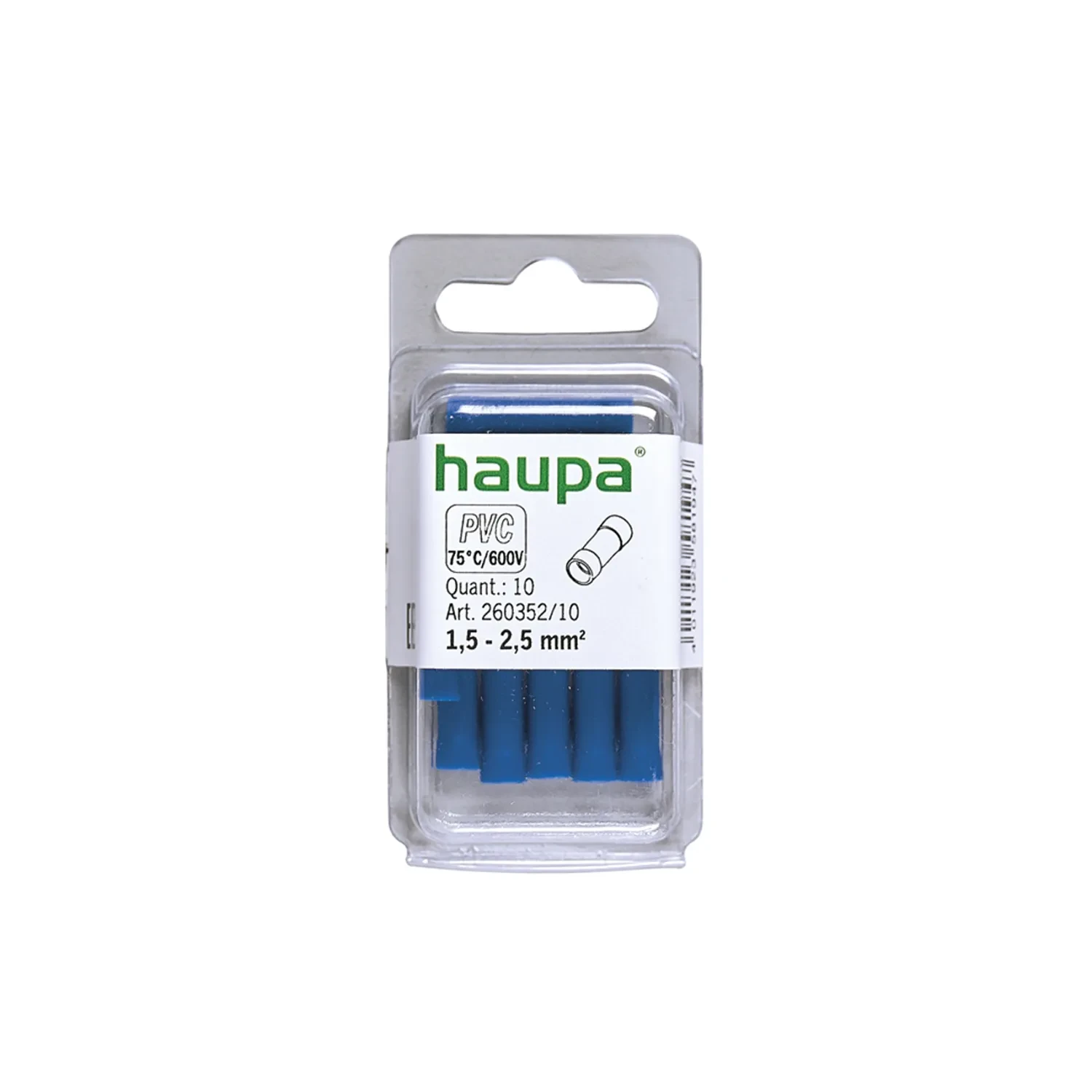

Haupa Insulated Butt Connector 1.5 2.5mm² Blue PVC Pack of 10

Photo is representative

Haupa Insulated Butt Connector 1.5 2.5mm² Blue PVC Pack of 10

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 26035210
GTIN —
Stock status: In stock

pack of 10

Net price: £2.21

Gross price

£2.65

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Tin-plated electrolytic copper butt connector from Haupa, PVC-insulated, DIN version. Suits 1.5–2.5mm² harmonised cables. Blue colour-coding for quick identification on the bench or in the panel.

Expanded insulating sleeve makes entry easier and keeps the crimp protected without secondary heat shrink.

  • Wire range: 1.5–2.5mm²
  • Insulation: PVC, blue
  • Barrel: tin-plated copper, 22.7mm total length
  • Inner bore (d1): 2.3mm, outer (d2): 4.5mm
  • DIN version — suitable for harmonised cables
Specifications

Wire Range

1.5–2.5mm²

Insulation Colour

Blue

Insulation Type

PVC

Material

Electrolytic copper, tin-plated

Total Length (TL)

22.7mm

Crimp Length (I)

15mm

Inner Diameter (d1)

2.3mm

Outer Diameter (d2)

4.5mm

Connection Type

Percussion connector

Standard

DIN version
