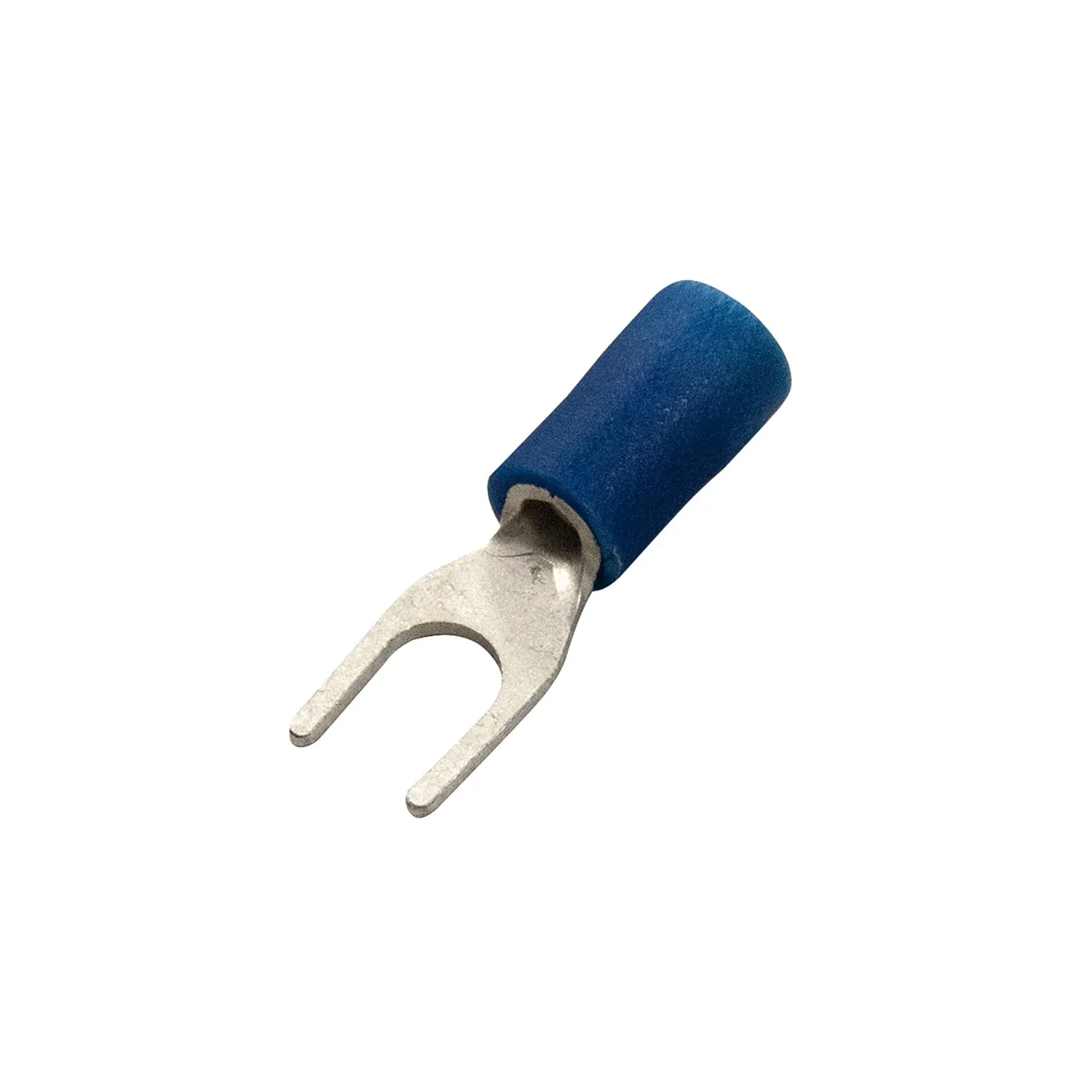

Haupa Insulated Fork Terminal M4 1.5-2.5mm Blue Bag of 100

Photo is representative

Haupa Insulated Fork Terminal M4 1.5-2.5mm Blue Bag of 100

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 370314
GTIN —
Stock status: 6 in stock

bag of 100

Net price: £5.50

Gross price

£6.60

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Haupa ECO-Line fork terminals for M4 threaded connections. Tin-plated electrolytic copper, not soldered. PVC-insulated with an expanded insulating sleeve — no secondary heat shrink needed.

Compatible with harmonised cables. Colour-coded blue for 1.5-2.5mm² wire.

  • Wire range: 1.5-2.5mm²
  • Stud size: M4 (4.3mm fork opening)
  • Total length: 21mm
  • Insulation: blue PVC with expanded sleeve
Specifications

Wire Cross Section

1.5-2.5mm²

Stud Size

M4

Fork Opening (d2)

4.3mm

Bore Diameter (d1)

2.3mm

Flange Width (B)

6.4mm

Total Length (TL)

21mm

Insulation Entry (d4)

4.5mm

Insulation Type

PVC with expanded insulating sleeve

Conductor Material

Tin-plated electrolytic copper

Flange Shape

Fork

Colour

Blue
