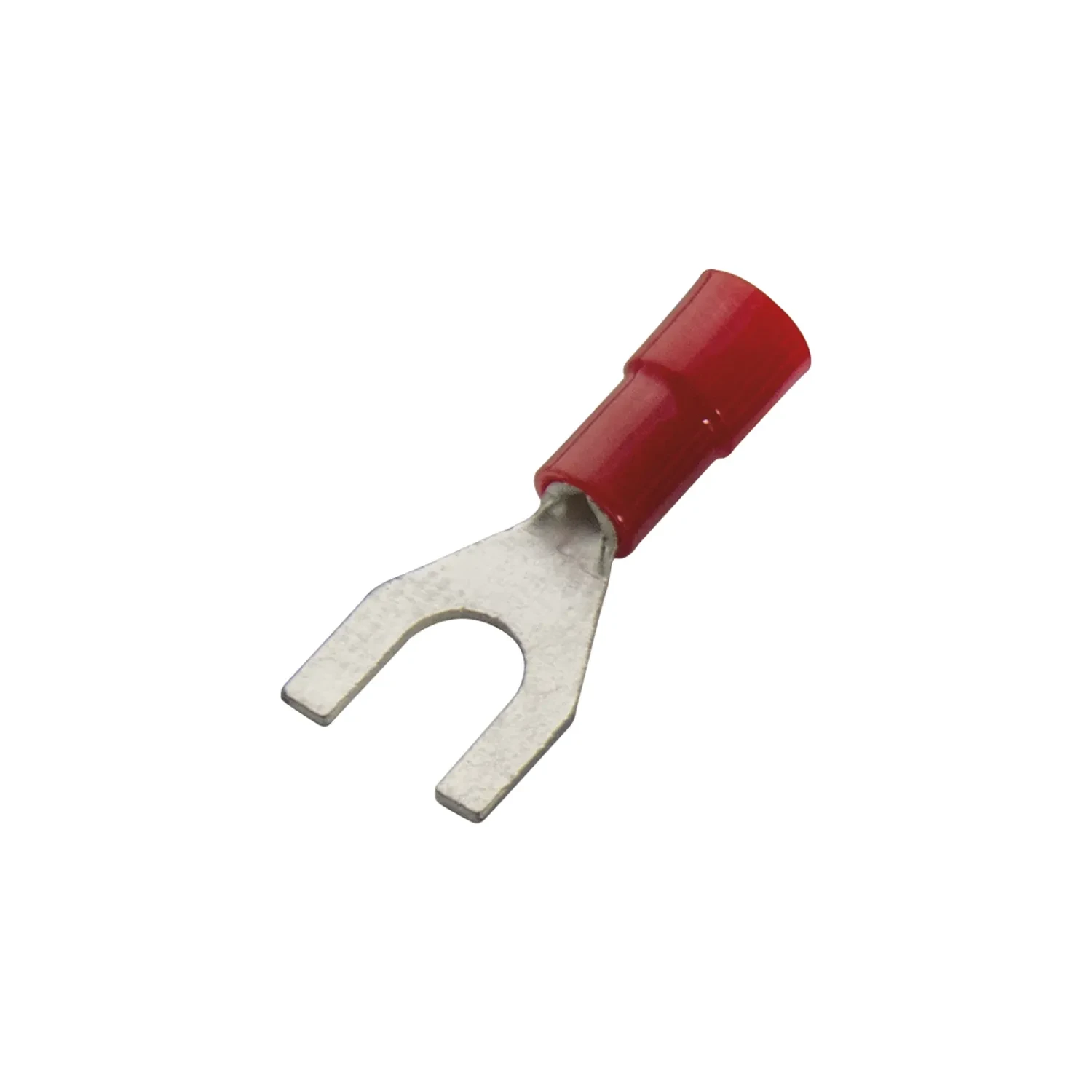

Haupa Insulated Fork Terminal M6 Stud 0.5-1.0mm² Red DIN 46237

Photo is representative

Haupa Insulated Fork Terminal M6 Stud 0.5-1.0mm² Red DIN 46237

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 260308
GTIN —
Stock status: In stock

bag of 100

Net price: £7.34

Gross price

£8.80

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Haupa insulated fork terminal for M6 stud connections. PVC insulation with expanded insulating sleeve. Suits harmonised cables in the 0.5–1.0mm² range.

Colour-coded red for straightforward size identification on the job.

  • Wire range: 0.5–1.0mm²
  • Stud size: M6 (d2 6.2mm)
  • Total length: 22.4mm
  • Fork width: 9.2mm
  • DIN 46237
Specifications

Wire Cross Section

0.5–1.0mm²

Stud Size

M6

Flange Shape

Fork

Insulation

PVC, with expanded insulating sleeve

Colour

Red

Total Length (TL)

22.4mm

Fork Width (B)

9.2mm

d1

1.95mm

d2

6.2mm

d4

4.2mm

Barrel Length (E)

8.3mm

Insulation Wall (s)

0.8mm

Standard

DIN 46237
