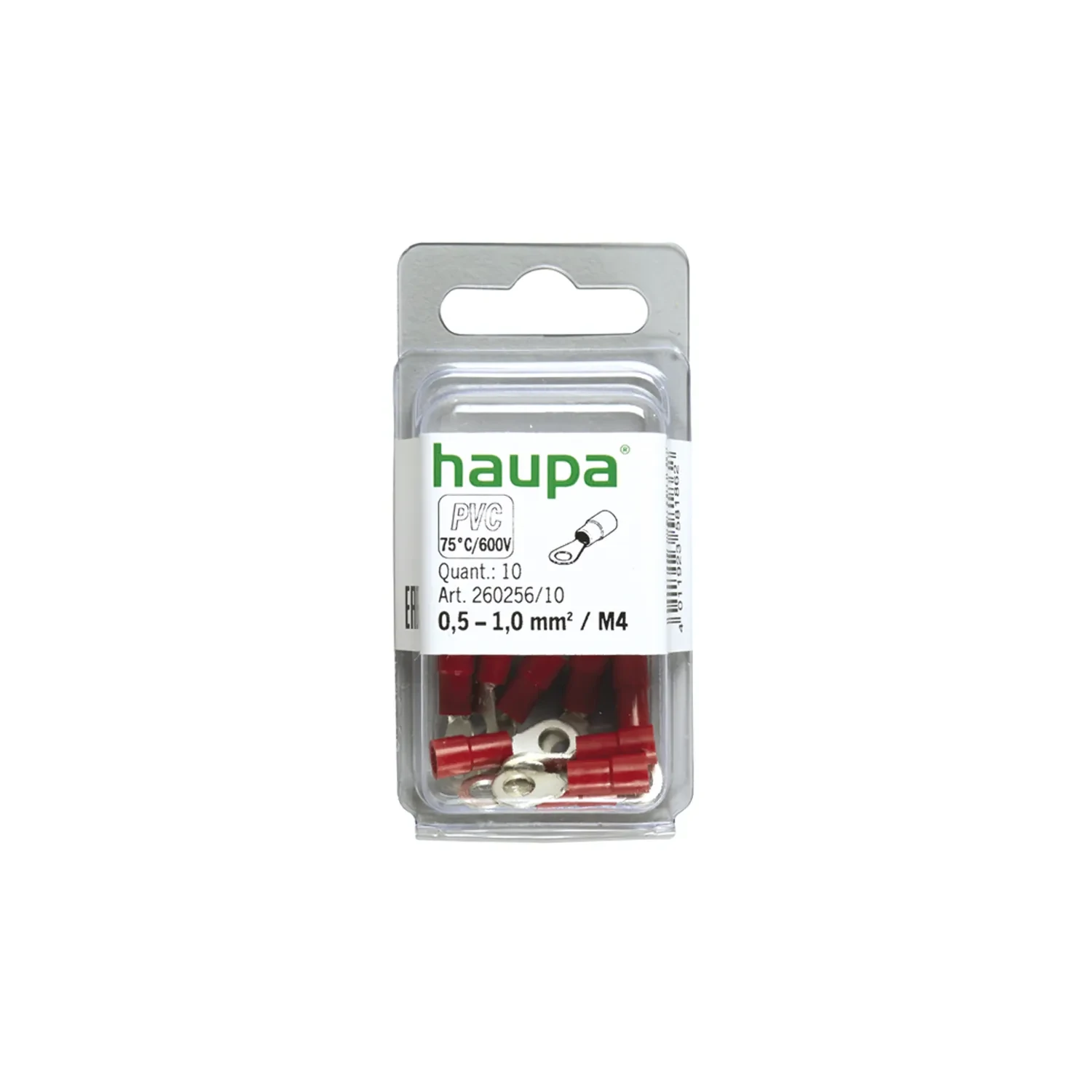

Haupa Insulated Ring Terminal M4 0.5-1.0mm² Red Pack of 10

Photo is representative

Haupa Insulated Ring Terminal M4 0.5-1.0mm² Red Pack of 10

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 26025610
GTIN —
Stock status: In stock

pack of 10

Net price: £2.15

Gross price

£2.58

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Haupa insulated ring terminal for M4 stud connections. PVC-insulated with expanded insulating sleeve. Rated for 0.5–1.0mm² harmonised cable.

Conforms to DIN 46237. Red colour-coding indicates the 0.5–1.0mm² wire range — standard across insulated terminal systems.

  • Stud size: M4 (4.2mm hole diameter)
  • Wire range: 0.5–1.0mm²
  • Total length: 22mm
  • Barrel diameter (d1): 1.95mm
  • Insulation: PVC with expanded sleeve
Specifications

Wire Cross Section

0.5–1.0mm²

Stud Size

M4

Hole Diameter (d2/d4)

4.2mm

Barrel Diameter (d1)

1.95mm

Total Length (TL)

22mm

Width (B)

8mm

Overall Length (A)

10.4mm

Insulation Thickness (s)

0.8mm

Flange Shape

Ring

Insulation Type

PVC with expanded insulating sleeve

Colour

Red

Standard

DIN 46237
