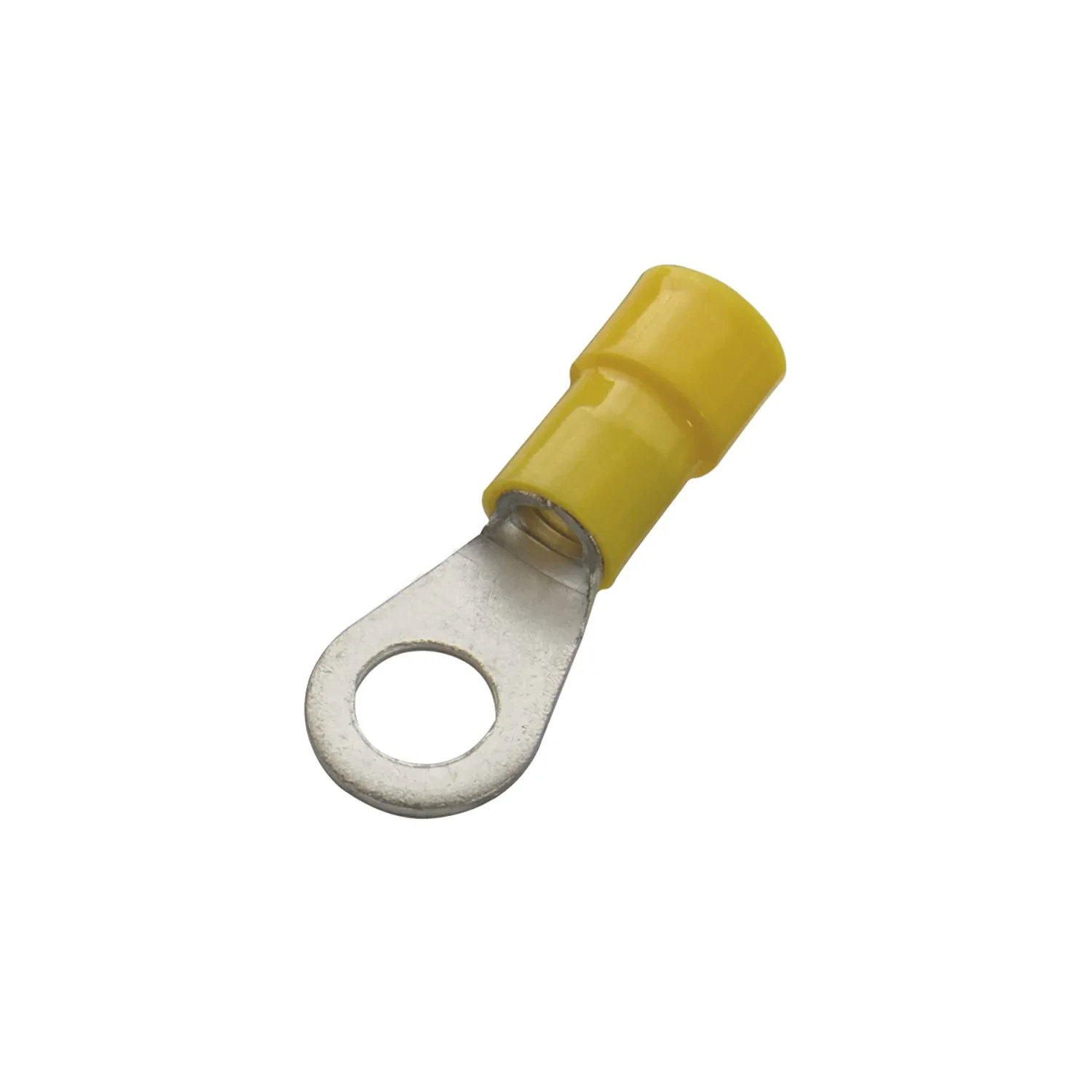

Haupa Insulated Ring Terminal M4 4-6mm² Yellow DIN 46237 Bag of 100

Photo is representative

Haupa Insulated Ring Terminal M4 4-6mm² Yellow DIN 46237 Bag of 100

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 260284
GTIN —
Stock status: 9 in stock

bag of 100

Net price: £9.26

Gross price

£11.11

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Tin-plated electrolytic copper ring terminal with PVC insulation and expanded insulating sleeve. M4 stud size, suits 4-6mm² harmonised cable. Complies with DIN 46237.

Expanded sleeve entry makes feeding cable through straightforward. No secondary heat shrink needed — PVC insulation covers the crimp.

  • Wire range: 4-6mm²
  • Stud: M4 (4.2mm hole)
  • Barrel bore (d1): 3.5mm
  • Total length: 26.5mm
  • Material: tin-plated electrolytic copper, soldered
Specifications

Wire Cross Section

4-6 mm²

Stud Size

M4

Hole Diameter (d2)

4.2 mm

Barrel Bore (d1)

3.5 mm

Flange Diameter (d4)

6.6 mm

Total Length (TL)

26.5 mm

Material

Electrolytic copper, tin-plated, soldered

Insulation

PVC with expanded insulating sleeve

Colour

Yellow

Flange Shape

Ring

Standard

DIN 46237
