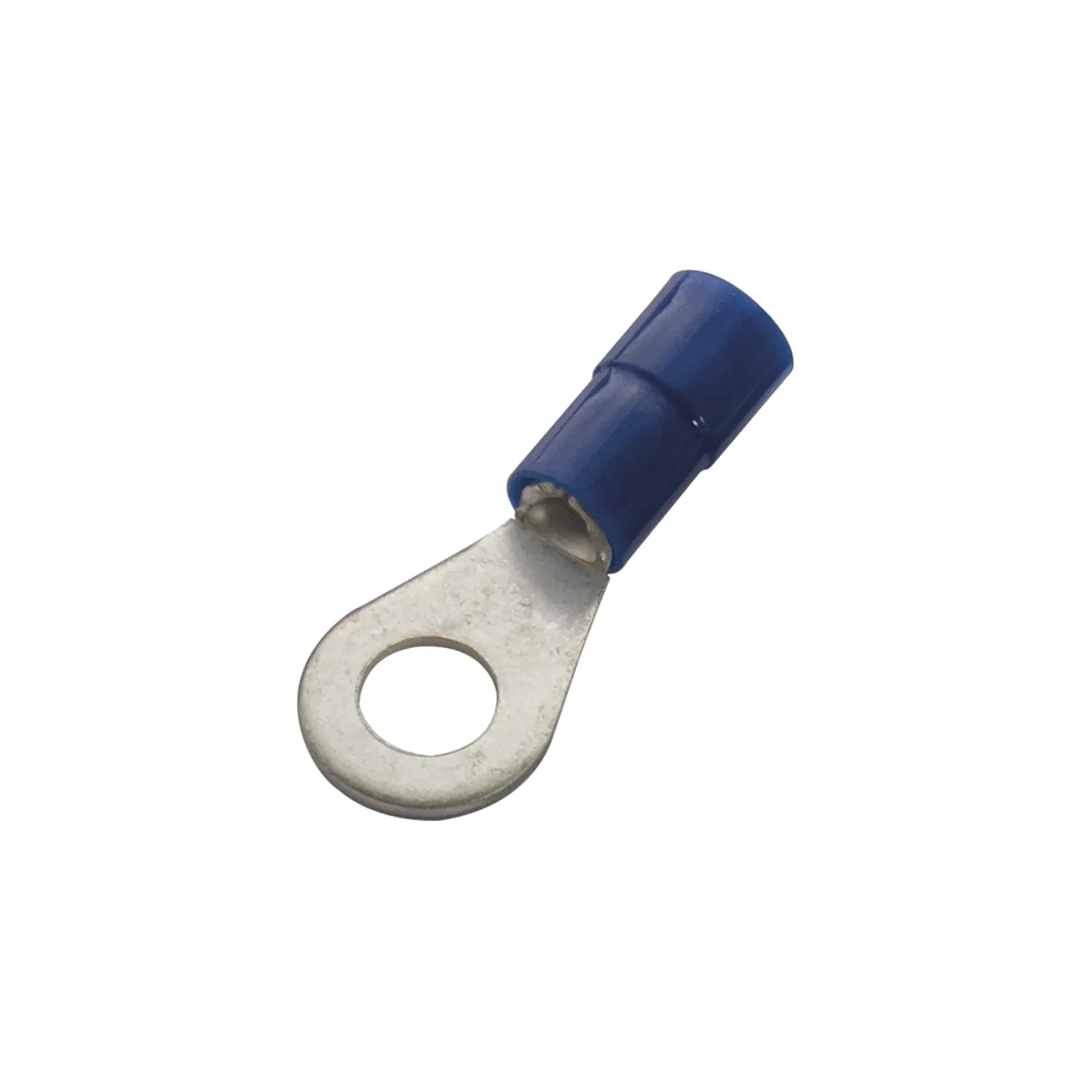

Haupa Insulated Ring Terminal M5 1.5-2.5mm2 Blue Bag 100 DIN 46237

Photo is representative

Haupa Insulated Ring Terminal M5 1.5-2.5mm2 Blue Bag 100 DIN 46237

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 260272
GTIN —
Stock status: In stock

bag of 100

More arriving soon

Net price: £7.70

Gross price

£9.24

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Tin-plated electrolytic copper ring terminal, soldered construction, PVC-insulated with expanded insulating sleeve for easier wire entry. M5 stud size, suits harmonised cables 1.5–2.5mm². DIN 46237 compliant.

Fits M5 fixing points in panels, switchgear, and equipment terminations where a reliable crimped ring connection is needed.

  • Wire range: 1.5–2.5mm²
  • Stud: M5 (5.2mm hole)
  • Overall length: 26mm
  • Material: Tin-plated electrolytic copper, soldered
  • Insulation: Blue PVC with expanded entry sleeve
Specifications

Wire Cross Section

1.5–2.5mm²

Stud Size

M5

Colour

Blue

Hole Diameter (d2)

5.2mm

Barrel Diameter (d1)

2.45mm

Barrel Length (d4)

4.8mm

Overall Length (TL)

26mm

Wall Thickness (s)

0.8mm

Flange Shape

Ring

Insulation

PVC, blue, expanded insulating sleeve

Material

Electrolytic copper, tin-plated, soldered

Standard

DIN 46237
