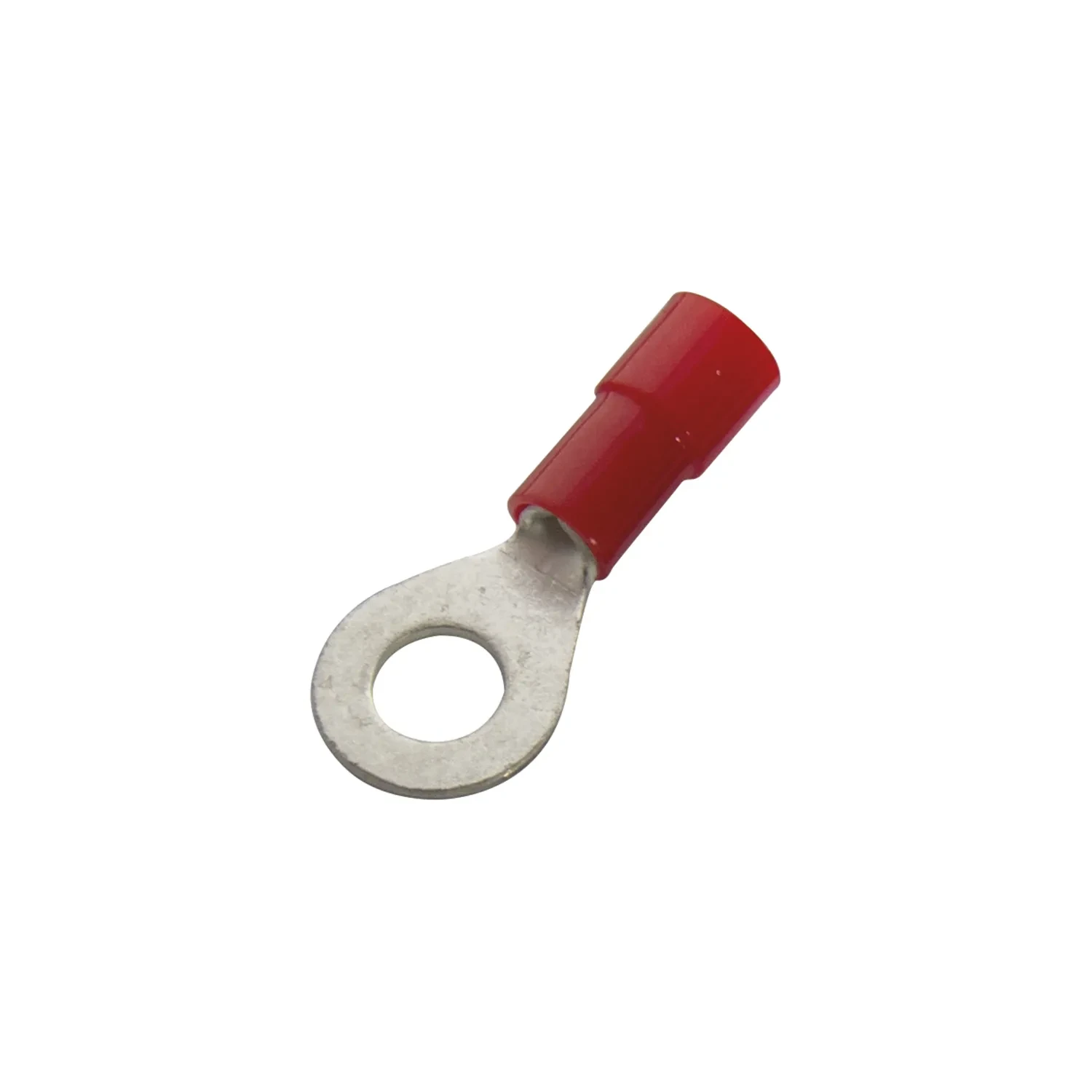

Haupa Insulated Ring Terminal M6 Stud 0.5-1.0mm² Red DIN 46237

Photo is representative

Haupa Insulated Ring Terminal M6 Stud 0.5-1.0mm² Red DIN 46237

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 260260
GTIN
Stock status: In stock

bag of 100

Net price: £7.83

Gross price

£9.40

Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 30 day returns

Haupa insulated ring terminals for M6 stud connections. PVC-insulated with an expanded insulating sleeve — suits harmonised cables in the 0.5-1.0mm² range.

Colour-coded red for quick gauge identification on the job.

  • Wire range: 0.5-1.0mm²
  • Stud size: M6 (d2 6.2mm)
  • Total length: 23.7mm
  • Standard: DIN 46237
  • Pack: bag of 100
Specifications

Wire Cross Section

0.5-1.0mm²

Stud Thread

M6

Flange Shape

Ring

Insulation

PVC with expanded insulating sleeve

Colour

Red

Total Length (TL)

23.7mm

Barrel Diameter (d1)

1.95mm

Hole Diameter (d2)

6.2mm

Inner Barrel Diameter (d4)

4.2mm

Width (B)

10mm

Standard

DIN 46237
