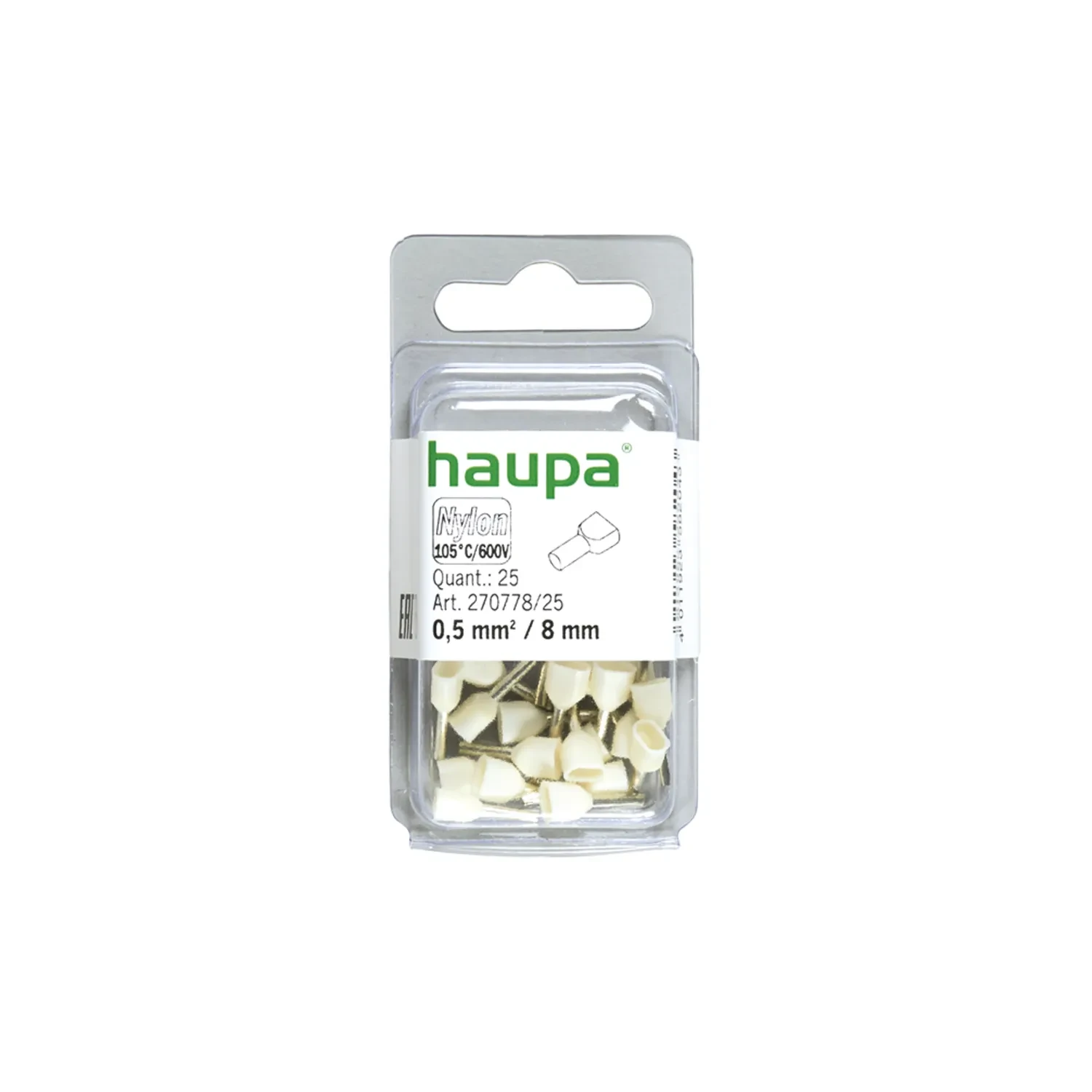

Haupa Twin Bootlace Ferrule 0.5mm2 8mm White Pack of 25

Photo is representative

Haupa Twin Bootlace Ferrule 0.5mm2 8mm White Pack of 25

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 27077825
GTIN —
Stock status: In stock

pack of 25

More arriving soon

Net price: £2.36

Gross price

£2.83

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Twin-end crimp ferrule rated for two 0.5mm² stranded conductors terminated into a single connection point. Electrolytic copper sleeve, galvanically tin-plated, with a polypropylene insulation collar.

Used where two flexible conductors need to share one terminal — common in control panels and DIN rail terminal blocks.

  • Pin length (I): 8mm
  • Total length (TL): 15mm
  • Sleeve bore (d1): 1.5mm
  • Wall thickness (s1): 0.15mm
  • Heat-resistant to 105°C
Specifications

Conductor Size

0.5 mm²

Pin Length

8 mm

Total Length

15 mm

Sleeve Bore (d1)

1.5 mm

Wall Thickness (s1)

0.15 mm

Colour

White

Sleeve Material

Electrolytic copper, galvanically tin-plated

Collar Material

Polypropylene (PP)

Heat Resistance

105°C

Type

Twin-end sleeve, two cables

Pack Quantity

25
