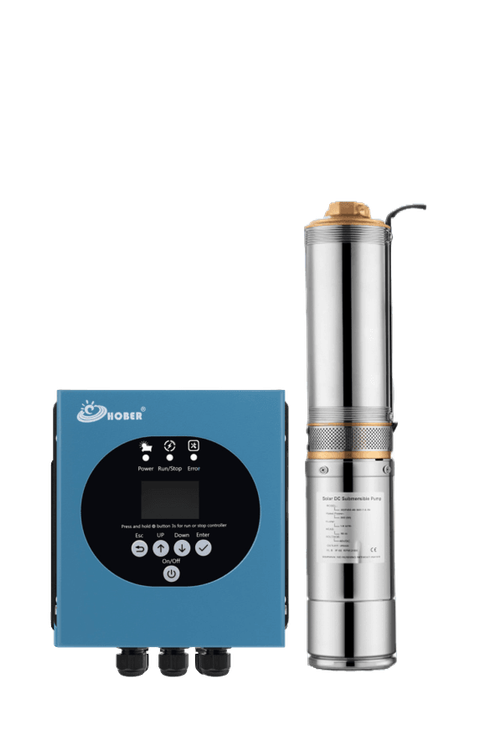

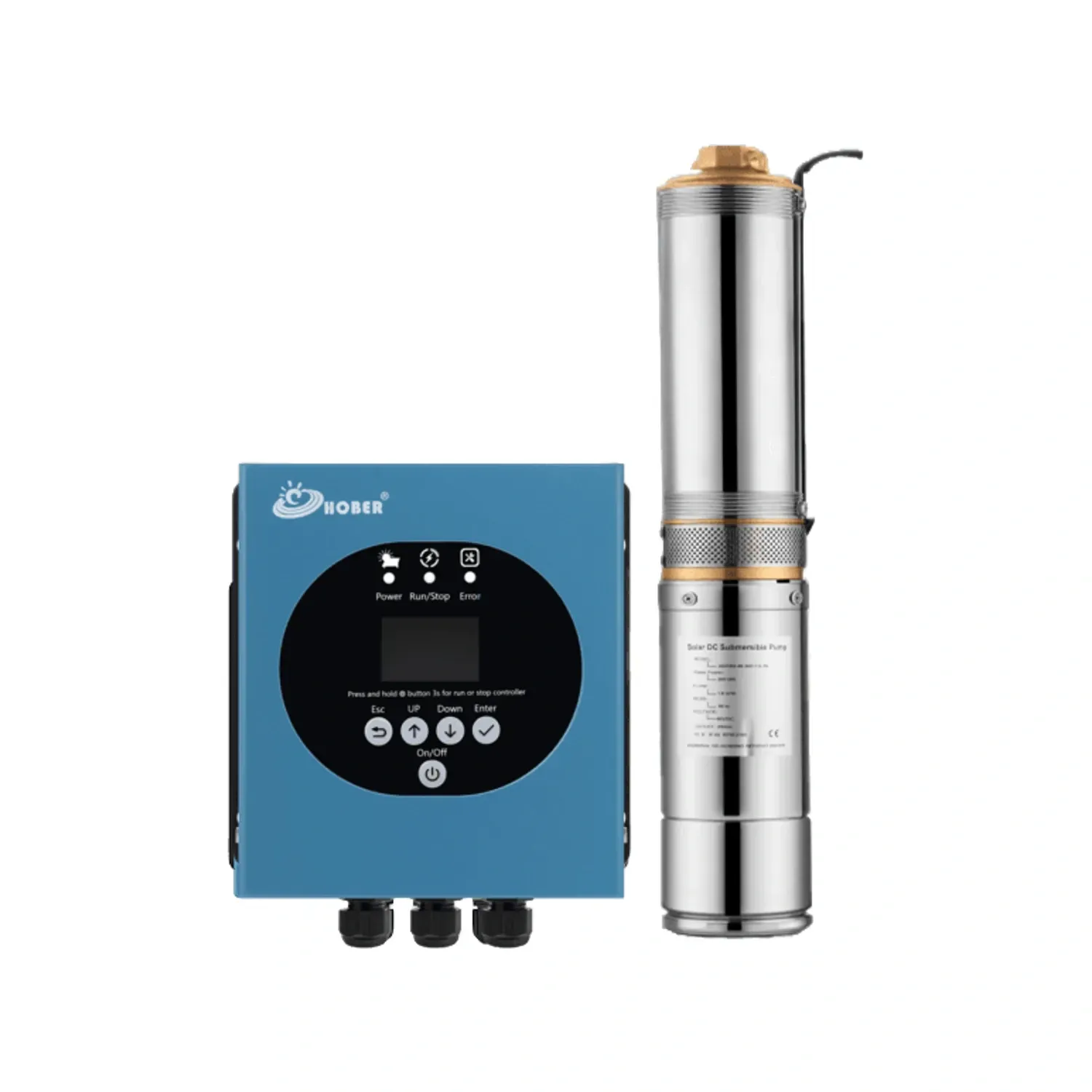

HOBER HBP4C-48-400 solar pump kit, 7,200 liters/hour

Photo is representative

HOBER 400W 48V Solar DC Water Pump System, 7.2m³/h Flow, 25m Head, Includes IP68 Pump & Controller

The HOBER HBP4C-48-400 is a complete solar water pumping solution designed for efficient, reliable, and cost-effective water supply. This package includes the high-performance 400W, 48V centrifugal pump and the robust 750W solar pump controller. Engineered for durability, the pump is constructed from AISI 304 stainless steel and is fully submersible with an IP68 rating. It delivers an impressive maximum water flow of 7.2m³/h (7,200 liters per hour) and can achieve a maximum head of 25 meters. The included controller features MPPT technology and can handle a maximum DC input voltage of 150V, making it a versatile core for your off-grid water system.

  • High-Performance Pump: A powerful 400W motor delivers a max flow of 7.2m³/h and a max head of 25m to meet demanding water needs.
  • Durable Construction: The pump body is made of corrosion-resistant AISI 304 Stainless Steel for a long operational life.
  • Fully Submersible: With an IP68 enclosure class, the pump is designed to operate reliably while fully submerged in water.
  • Advanced MPPT Controller: The included 750W controller maximizes power extraction from your solar panels for superior efficiency throughout the day.
  • Wide Solar Compatibility: The controller accepts a maximum DC input of 150V, allowing for flexible solar panel configurations.
  • Standardized Fit: Designed to fit into a 100mm (4”) well and features a standard 1 1⁄2” outlet for easy connection.

Please Note: This system does not include solar panels. To power the pump, you will need a solar array with a recommended MPPT voltage greater than 48V. The total open-circuit voltage of your panel array must not exceed the controller’s maximum input of 150V.

Product Information

Stock Code HBP4C-48-400
MPN —
GTIN —
Stock status: 9 available
Price: £803.19
incl. VAT, 20% priced per set

Product Features
Pump Model HBP4C-48-400-7.2-25
Pump Motor Power 400W
Pump Type Centrifugal Pump 48V
Pump Max Depth 25m
Pump Max Water Flow 7.2m³/h
Pump Outlet Diameter 40mm G 1 1/2"
Pump Well Adapter Diameter 100mm
Pump Dimensions Length: 690 mm, Diameter: 4"
Pump Weight 11kg
Controller Model HBDC750
Controller Power 750W
Max. DC Input Voltage 150V
Recommended MPPT Voltage >48V
Enclosure Material Stainless Steel
Dimensions (W x H x D) 210mm x 190mm x 110mm
Pump Warranty 1 year
Controller Warranty 18 months
Ambient Water pH Range 6.5 - 8.0
Ambient Water Temperature 1 - 35°C
Controller Ambient Temp -20~60°C

Box Content
  • 1 x HBP4C-48-400 Pump Unit
  • 1 x MPPT Solar Pump Controller

Documents

Applications & Use Cases

Agricultural Irrigation

Reliably irrigate fields, orchards, and greenhouses without relying on the grid. The HBP4C-48-400 provides consistent water flow perfect for drip systems, sprinklers, or flood irrigation, helping to increase crop yields and reduce operational costs.

Livestock & Farm Watering

Ensure a constant supply of fresh water for your livestock. This solar pump can fill water troughs, tanks, and ponds across remote pastures where electricity is unavailable, improving animal health and simplifying farm management.

Off-Grid Homes & Cabins

Achieve water independence for your remote home, cabin, or community. This system is powerful enough to supply water for daily household needs, from filling storage tanks to providing pressurized water for kitchens and bathrooms.

Pond Management & Aeration

Maintain healthy water levels and improve circulation in ponds, dams, and large water features. The consistent flow helps prevent water stagnation, supports aquatic life, and keeps your water features clean and vibrant.
