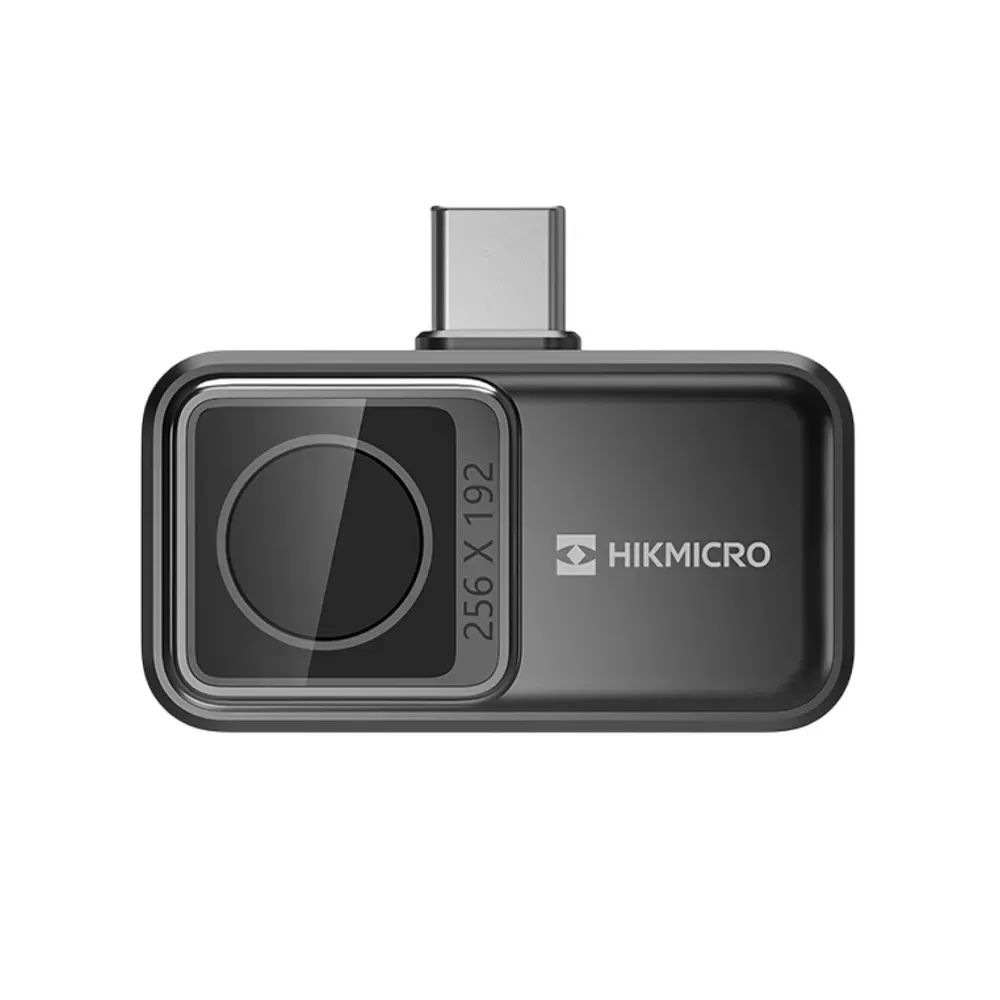

HIKMICRO Mini2 smartphone thermal camera for Android devices

Photo is representative

HIKMICRO Mini2 Thermal Camera for Android – USB-C & 256×192

The HIKMICRO Mini2 is a compact smartphone thermal camera for electrical and HVAC inspections, delivering high-resolution infrared imaging via a USB-C connection.

  • 256×192 thermal resolution with 25 Hz refresh rate
  • NETD < 40 mK for high sensitivity
  • Temperature range: -20°C to 350°C (-4°F to 662°F)
  • Multiple color palettes and user-definable measurement spots
  • Lightweight (20g) and IP40-rated for portability and durability

Product Information

Stock Code MINI2-V2
MPN MINI2
GTIN —
Stock status: 4 available
Price: £261
incl. VAT, 20% priced individually

Product Features
NETD < 40 mK (@ 25°C, F# = 1.0)
Weight 20 g
Accuracy ±2°C (-20°C to 100°C) ; ±2% (100°C to 350°C)
Interface USB Type-C (Android)
Focus Mode Focus Free
Focal Length 3.5 mm
Field of View 50° × 37.2°
IR Resolution 256 × 192 (49,152 pixels)
Drop Resistance 1m (3.28 ft)
Image Frequency 25 Hz
Measurement Tools Center Spot, Hot Spot, Cold Spot, 3 user-definable spots, 3 rectangles
Power Consumption 360 mW
Protection Rating IP40
Temperature Range -20°C to 350°C (-4°F to 662°F)
mpn MINI2

Documents

Brand

HIKMICRO
