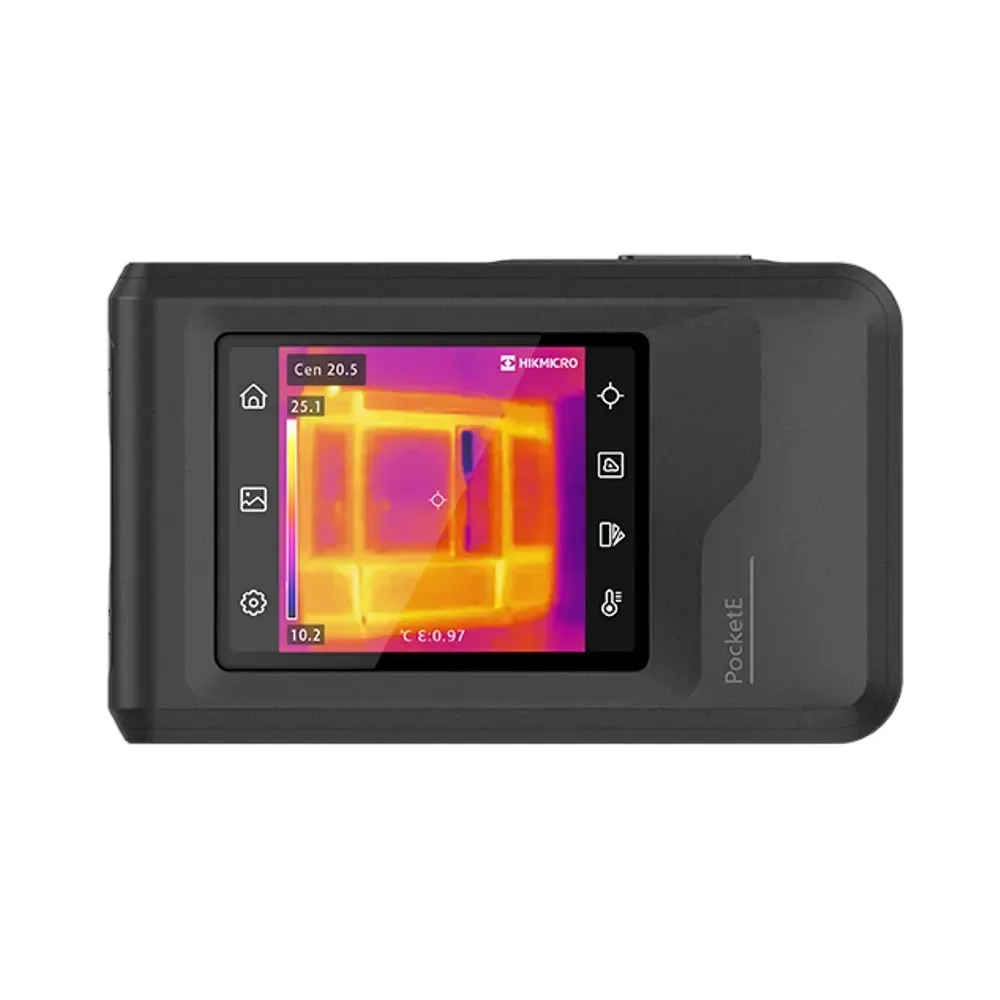

HIKMICRO PocketE thermal camera for HVAC and electrical diagnostics

Photo is representative

HIKMICRO PocketE Thermal Camera – Compact & High-Resolution

The HIKMICRO PocketE is a compact, high-resolution thermal camera designed for HVAC, electrical, and building inspections.

  • 96×96 infrared resolution with SuperIR enhancement
  • Temperature range: -20°C to 350°C (-4°F to 662°F)
  • 25 Hz image frequency for smooth thermal imaging
  • 3.5in LCD touchscreen with intuitive controls
  • Wi-Fi connectivity for real-time sharing

Product Information

Stock Code POCKETE
MPN HM-TP40-1AQF
GTIN —
Stock status: 3 available
More arriving soon
Price: £291.28
incl. VAT, 20% priced individually

Product Features
NETD < 50 mK (@ 25°C, F# = 1.0)
Wi-Fi 802.11 b/g/n (2.4 GHz)
Display 3.5” LCD touchscreen, 320 × 240 resolution
Storage 4 GB internal memory (~30,000 images)
SuperIR Yes, on captured images and live view
Accuracy ±2°C/3.6°F or ±2%
Image Modes Thermal, Fusion, PIP, Blending, Visual
Battery Life Up to 4 hours continuous operation
Digital Zoom 1.0x to 4.0x continuous
Charging Time Approx. 2.5 hours (USB-C)
IR Resolution 96 × 96 (9,216 pixels)
Visual Camera 0.3 MP (640 × 480)
Drop Resistance 2m (6.56 ft)
Image Frequency 25 Hz
Protection Rating IP54
Temperature Range -20°C to 350°C (-4°F to 662°F)
Distance to Spot Ratio 112:1
mpn HM-TP40-1AQF

Documents

Brand

HIKMICRO
