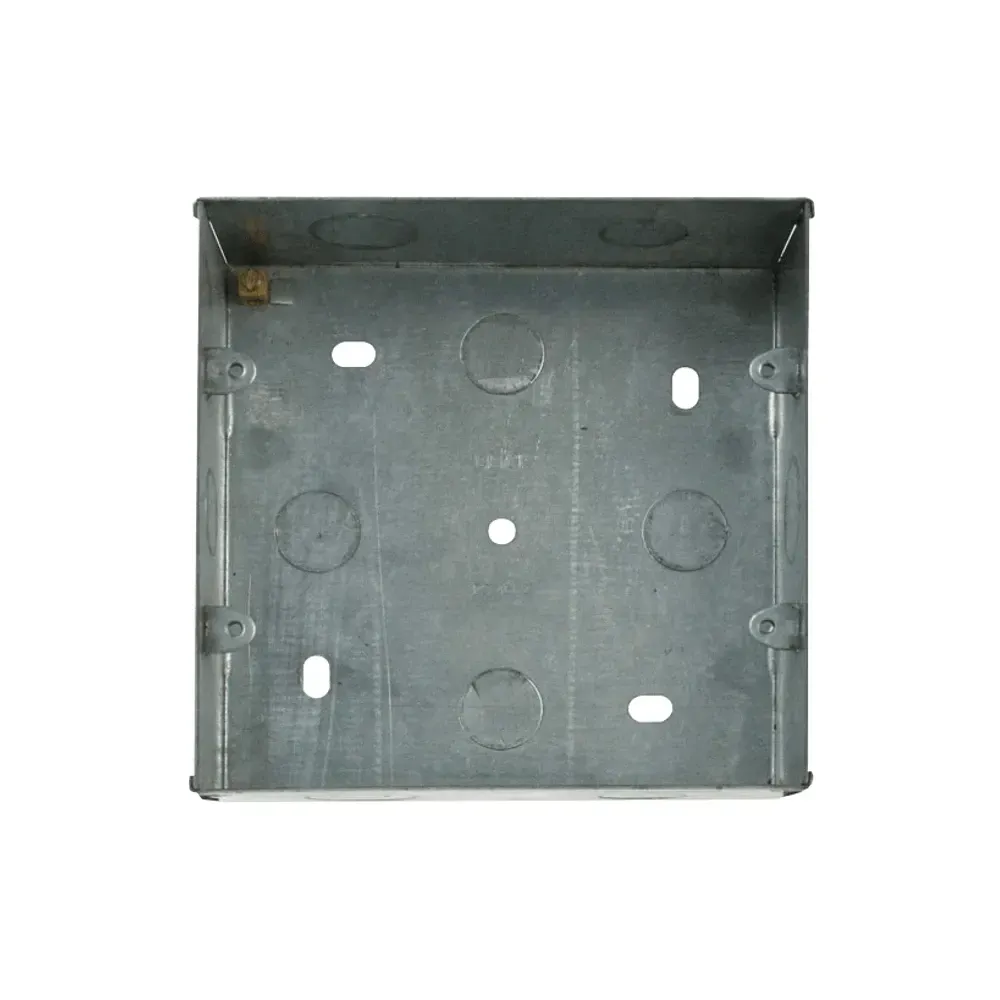

Click Essentials 2 Tier 47mm Galvanised Steel K.O. Box | BS 4662
The Click Essentials WA512, 2 Tier 47mm Deep Galvanised Steel K.O. Box is designed for compatibility with GridPro and Deco+ plates in 6, 9, and 12 module configurations. Its robust galvanised steel body and generous knockout options ensure versatile installation. An integrated earth terminal is supplied for enhanced safety, with precision brass fixing. Backed by a 10-year warranty, this knockout box meets BS 4662 standards and is ideal for professional electrical installations needing modular support
Online:
Product Features
| Product Code | WA512 |
|---|---|
| Depth | 47mm |
| Dimensions | 137mm (W) x 137mm (H) x 47mm (D) |
| Material | Galvanised Steel (body), Brass (earth terminal & screw) |
| Knockouts | 7 x Ø20mm, 3 x Ø25mm, positioned top/side/bottom/rear |
| Tier | 2 Tier |
| Modular Compatibility | Click Deco+ & GridPro Plates (6, 9, 12 mod) |
| Earth Terminal | Supplied |
| Warranty | 10 Years |
| Standards | BS 4662 |
Applications & Uses
Modular Grid Systems
Ideal for housing modular switches and outlets, this box supports GridPro and Deco+ plates in larger installations where multiple modules are required.
Commercial Installations
Used in commercial environments to provide secure back box mounting for multi-module switching setups, complying with UK regulatory standards.
Installation Guidelines
Knockout Utilisation
Select required knockouts for conduit or cable entry before mounting. Ensure knockouts are cleanly removed to prevent sharp edges or debris.
Earthing Procedures
Securely attach the earth terminal to the box and connect site earth cable as per BS 4662, using brass terminal for optimal conductivity.
Standards & Compliance
BS 4662
Ensures compliance for flush mounting boxes in the UK, suitable for fixed wiring accessories and professional installation.
Galvanised Steel Construction
Manufactured from galvanised steel for enhanced corrosion resistance and suitability in demanding installation environments.
Frequently Asked Questions
-
Is this K.O. box compatible with both GridPro and Deco+ modular plates?
Yes, the box is specifically designed for compatibility with Click GridPro and Deco+ plates, in 6, 9, and 12 module configurations for flexible modular installations.
-
How many knockouts are available on this 47mm box, and what are their sizes?
There are 7 knockouts at Ø20mm and 3 at Ø25mm, distributed across the top, sides, bottom, and rear for maximum installation flexibility.
-
What material is the earth terminal made from, and is it included?
The earth terminal and terminal screw are both high-quality brass, and the earth terminal is supplied with the product for secure earthing.
-
Which installation standards does this product conform to?
This knockout box is manufactured in compliance with BS 4662, meeting UK requirements for flush mounting of wiring accessories.
