4-Way TV Amplifier

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

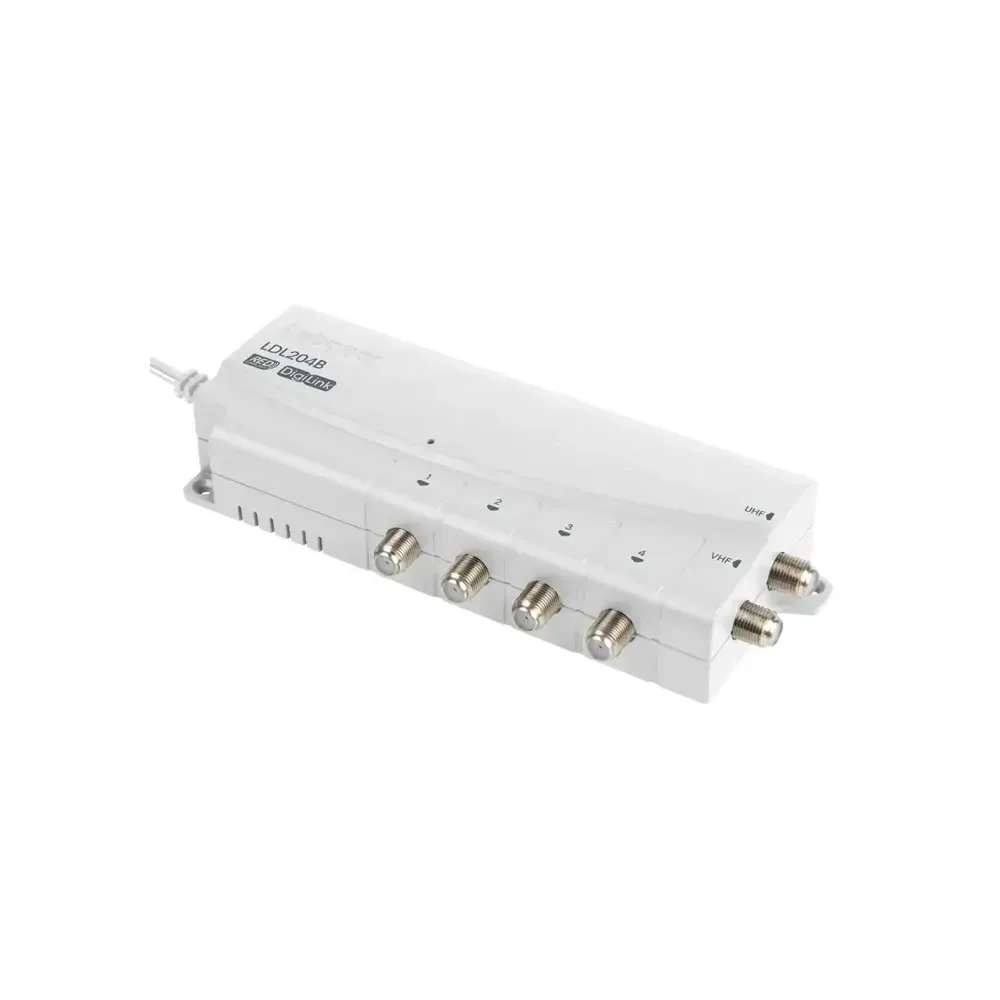

Labgear 4-way TV & Radio Aerial Amplifier

The Labgear LDL204R is a 4-way TV & Radio Aerial Amplifier designed to efficiently distribute signals. With dual input amps, F-type connections, and 9V DC output on every port for powering DigiLink eyes, this amplifier ensures strong signal reception and distribution.

Stock Code LDL204R
Few in stock
Price 52.86 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Dimensions

    184x85x35mm

  • Noise Figure

    <4dB

  • Gain Per Port

    10dB

  • Frequency Range

    VHF 87-230MHz & UHF 470-790MHz

  • IR Enabled Ports

    9V 15mA, Short Circuit Protected

  • Max Output Level

    90dBuv

  • Return Path Gain

    6dB

  • Return Path Range

    5-30MHz

  • No of Inputs/Outputs

    2 / 4

  • Built-in Power Supply

    220-240V~50Hz, <3W

  • Isolation Between Outlets

    20dB

  • mpn

    LDL204
