DL190B-FW

Photo is representative

LED Downlight 5–7W White Bezel | CCT Selectable | Dimmable | 68–75mm Cut-Out

The 5–7W LED Downlight delivers flexible lighting for residential, commercial, retail, and hospitality spaces. Easily select CCT settings from 2700K to 6000K for tailored ambience. The dimmable driver ensures smooth control, while the wide beam angle delivers even, low-glare illumination. A white bezel and compact cut-out size make installation simple—ideal for upgrades and new installations. Enjoy energy efficiency, long life, and low running costs in any project.

Stock Code: DL190B-FW
EAN, GTIN: 7426816891497

Online:

In stock
Price 8.76 £
incl. VAT, 20% priced individually

Product Features

Power Consumption 5–7W
CCT Selectable 2700K / 3000K / 4000K / 6000K
Dimmable Yes
Bezel Finish White
Cut-Out Size 68–75mm
Beam Angle Wide, even light distribution
Application Residential, commercial, retail, hospitality
Energy Efficiency Long lifespan, low running cost

Applications & Uses

Residential Lighting

Ideal for living areas, kitchens, and hallways, providing tailored ambience with selectable color temperatures and smooth dimming control.

Commercial & Retail

Suited for shops, offices, and display areas where wide, even light distribution and adaptable color tone enhance visual presentation and comfort.

Hospitality Spaces

Perfect for hotels, restaurants, and lobbies requiring a modern aesthetic and customized lighting, ensuring energy efficiency and longevity.

Installation Guidelines

Cut-Out Preparation

Ensure the ceiling cut-out is between 68 mm and 75 mm to guarantee a secure and flush fit for the downlight fixture.

Driver & Dimming

Connect to compatible leading or trailing edge dimmers. Confirm polarity and secure all wiring per local electrical codes for safe installation.

Frequently Asked Questions

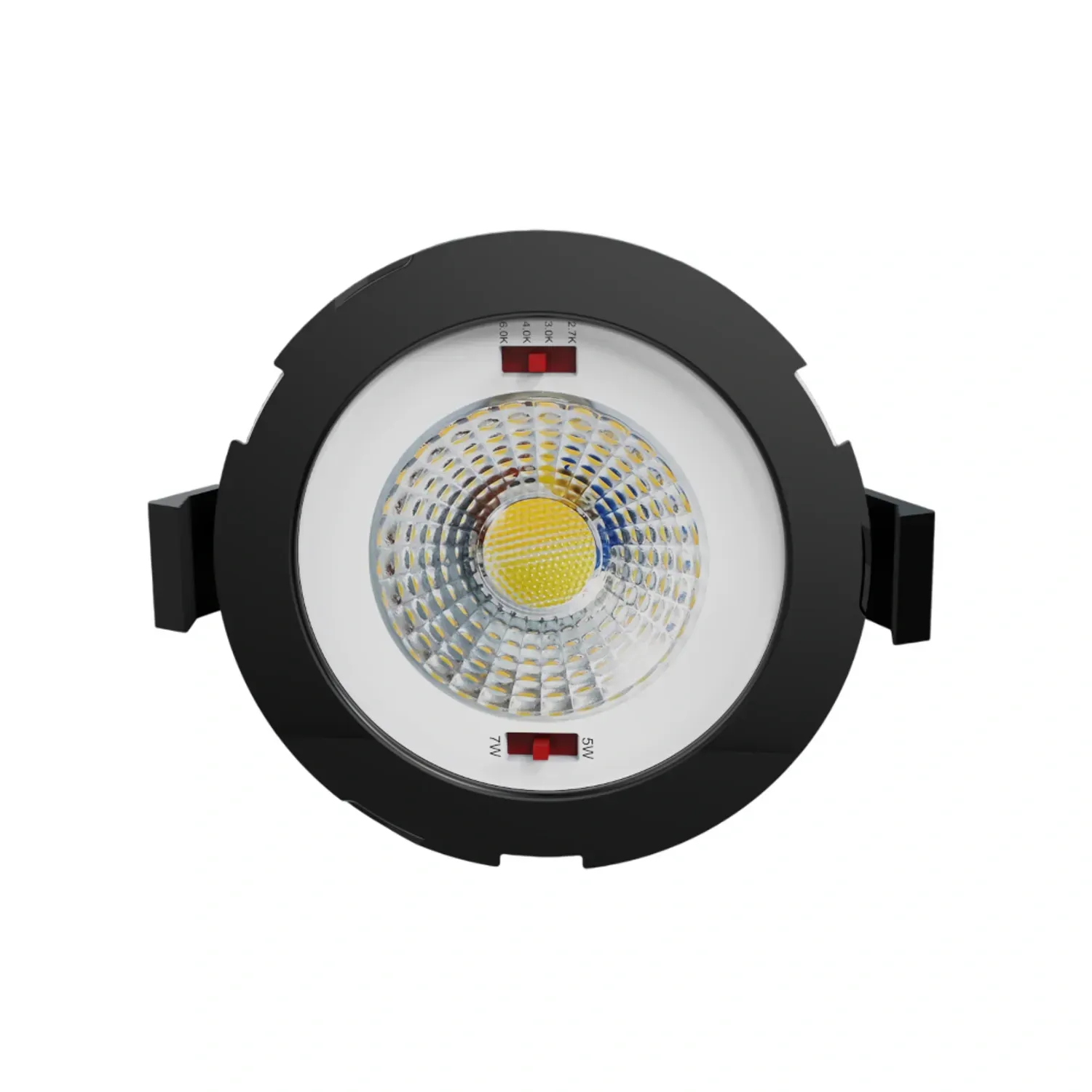

  • How do I select the CCT on this LED downlight?

    The LED downlight features a selectable CCT switch that allows you to choose between 2700K, 3000K, 4000K, and 6000K color temperatures before or during installation for tailored lighting.

  • What dimmer types are compatible with this LED downlight?

    This LED downlight supports leading and trailing edge dimmers for smooth brightness control. Verify dimmer compatibility with your specific LED driver and installation conditions.

  • What is the recommended cut-out size for installation?

    The downlight is designed for ceiling cut-out sizes between 68 mm and 75 mm, making it compatible with most retrofit and new installation scenarios.

  • Is this LED downlight suitable for commercial spaces?

    Yes, with a wide beam angle and selectable CCT options, this LED downlight provides flexible, energy-efficient illumination ideal for retail, hospitality, and office environments.

  • How energy efficient is this LED downlight?

    Operating at only 5–7W, this LED downlight offers high energy efficiency with a long lifespan, leading to reduced running and maintenance costs for both residential and commercial settings.
