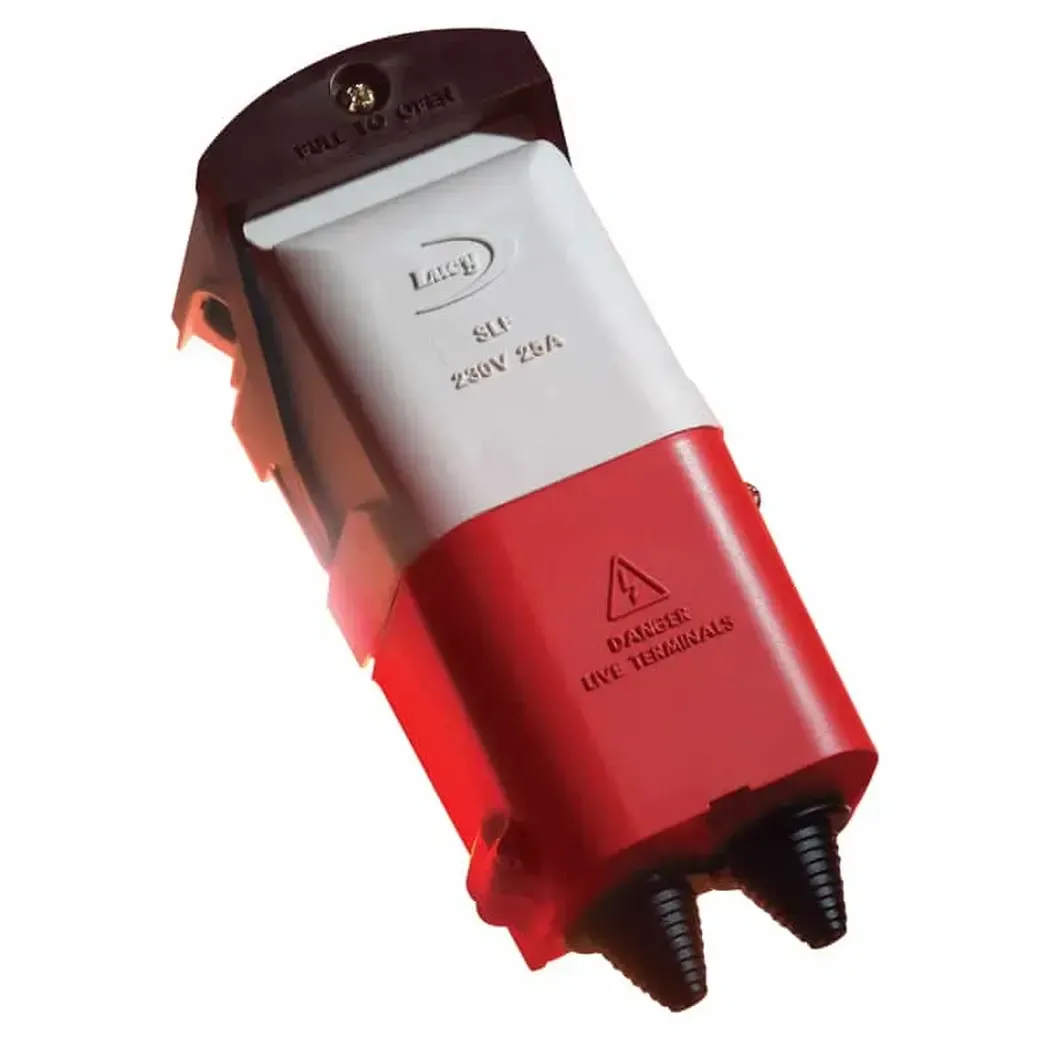

MC040SLE - Lucy Fuse Cut Out Takes LST-20

Photo is representative

Lucy Fuse Cut Out Single Pole CNE 25A 230VAC Street Lighting Type 2 IP22

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MC040SLE
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £24.65

Gross price

£29.58

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

SP street lighting cut out for CNE supply systems. Takes a 25A BS88 Part 1 / AC16 offset tag fuse link. Cam-operated lever for fuse disconnection without tools.

Compact enough for column bases from 114mm diameter. Terminal screws are 3mm hex head with torque-controlled tightening. Fit optional PVC grommets to upgrade to IP44.

  • Rated current: 25A continuous
  • Voltage: 230VAC, 50/60Hz
  • Terminal capacity: up to 25mm²
  • IP22 standard / IP44 with grommets
  • Dimensions: 150 x 76 x 60mm
Specifications

Configuration

Single Pole (SP)

System Type

CNE (Combined Neutral and Earth)

Rated Voltage

230VAC

Rated Frequency

50/60Hz

Rated Continuous Current

25A

Fuse Link Type

25A tag type — BS88 Part 1 / AC16 offset tag

IP Rating (covers in place)

IP22

IP Rating (grommets fitted)

IP44

Terminal Capacity

Up to 25mm²

Terminal Screw Head

3mm hex head

Terminal Torque (6mm standard screw)

2.25Nm

Terminal Torque (8mm IPC screw)

3.5Nm

Operating Temperature

-25 to +40°C

Min. Column Base Diameter

114mm

Cable Entry

Two 20mm diameter PVC conical grommets

Height

150mm

Width

76mm

Depth

60mm

Weight

287g

Body Material

PA6 glass filled thermoplastic

Terminal Material

Electro-tin plated brass

Contact Clips Material

Electro-tin plated phosphor bronze

Standards

BS 7654, BS EN 60529
