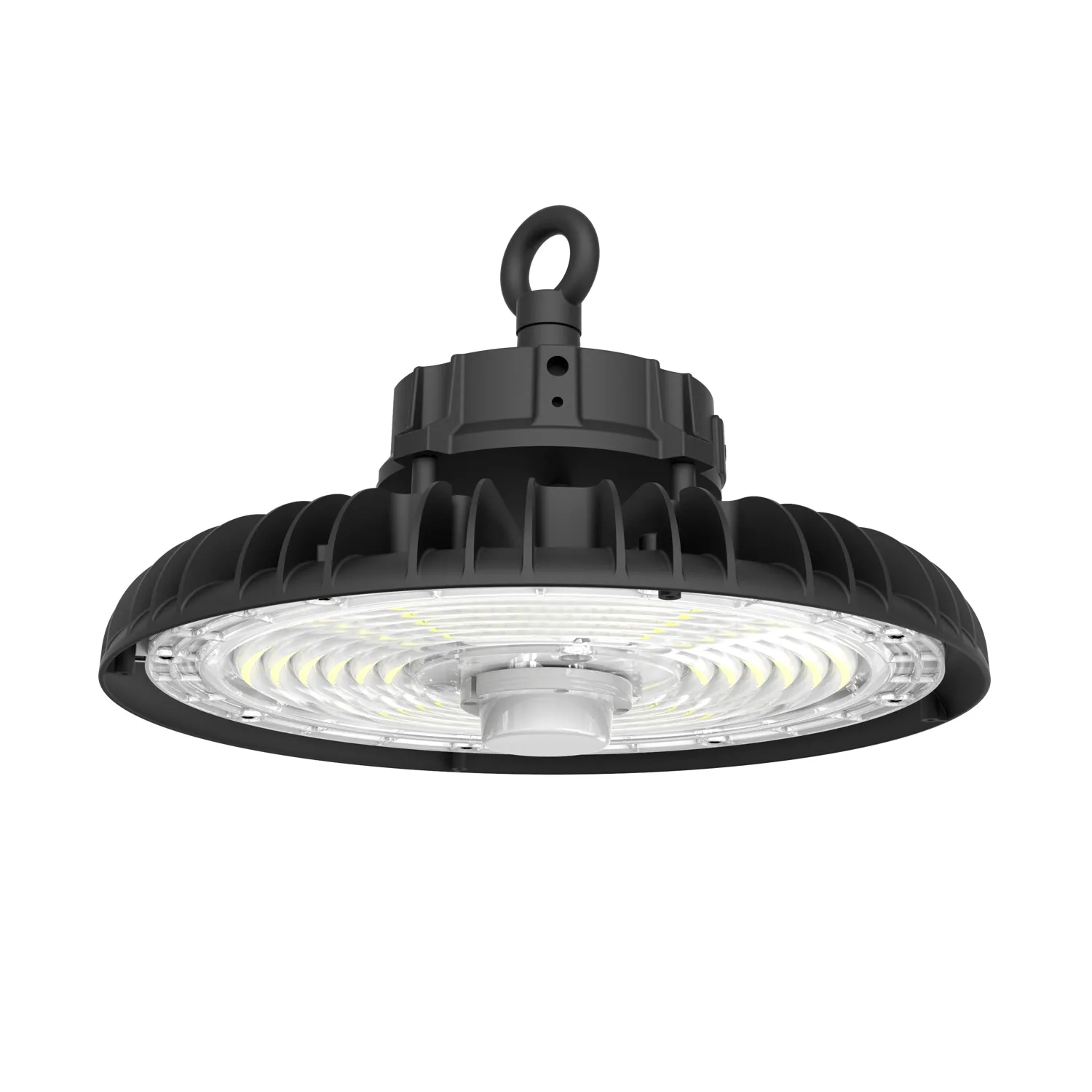

LUXUS LED UFO High Bay 120-150-200W

Photo is representative

New product

120-150-200W LED UFO High Bay IP65 - 32,000lm Selectable CCT

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code HD-HB152-200WD
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £74.39

Gross price

£89.26

Energy Rating

120-150-200W LED UFO High Bay IP65 - 32,000lm Selectable CCT

HD-HB152-200WD Fiche

HD-HB152-200WD Energy Label

The LUXUS LED UFO high bay is a versatile circular high-bay luminaire designed for industrial warehouses, factories, distribution centres, and sports halls. Rated IP65, it provides dust-tight protection and resistance to water jets, making it suitable for demanding indoor environments. The UFO design delivers wide-area coverage with selectable beam angles to suit different ceiling heights and applications.

Delivering up to 32,000 lumens at the 200W setting with an efficacy of 160 lm/W at 5000K, this fixture offers field-selectable wattage (120W/150W/200W), colour temperature (4000K/5000K/5700K), and beam angle (60°/90°/120°) options. The colour rendering index is selectable between CRI 70 and CRI 80, with higher CRI recommended for manufacturing and inspection tasks. All settings are adjustable via integrated switches or dip switches.

Installation is via chain or hook suspension, with the integrated driver eliminating the need for external control gear. Operating on 120-240V AC at 50-60Hz, the fixture is suitable for ceiling heights typically 4-12m depending on the selected beam angle. An optional microwave sensor kit is available for occupancy-based control and energy savings.

Measuring Ø280mm x H125mm with a black finish, this high bay is backed by a 5-year manufacturer’s warranty. Not suitable for ceiling heights below 4m (use low-bay fittings) or outdoor exposed locations.

Specifications

Wattage

120W / 150W / 200W (selectable)

Lumen Output

32,000lm (at 200W setting)

Efficacy

160lm/W (at 5000K)

IP Rating

IP65

Type

UFO

CCT

4000K / 5000K / 5700K (selectable)

CRI

70/80 (selectable)

Beam Angle

60° / 90° / 120° (selectable)

Voltage

120-240V AC, 50-60Hz

Dimensions

Ø280mm x H125mm

Mounting

Chain/hook suspension

Driver

Integrated

Warranty

5 years

Frequently asked questions

What beam angle should I select for my ceiling height?

For 4-6m ceilings use 120° for wide coverage. For 6-10m use 90° for balanced illumination. For 10-12m+ heights use 60° for concentrated beam control. The beam angle is field-selectable via integrated switches.

Can I change the wattage and colour temperature after installation?

Yes, all three parameters (wattage: 120W/150W/200W, CCT: 4000K/5000K/5700K, beam angle: 60°/90°/120°) are field-selectable via switches or dip switches on the fixture, allowing adjustment without replacement.

Is this suitable for outdoor warehouse loading bays?

No. While rated IP65 for dust and water jet resistance, this fixture is designed for indoor use only. It is not suitable for direct weather exposure in outdoor locations. Use weatherproof outdoor-rated high bays for external loading areas.

What wattage setting replaces a 400W metal halide high bay?

The 150W setting typically replaces a 400W metal halide lamp with significantly higher efficacy at 160 lm/W. Use the 200W setting (32,000lm) for higher-output applications or taller mounting heights.

Can I add motion sensors for energy saving?

Yes, a microwave sensor kit is available as an optional accessory for occupancy-based control. This enables automatic on/off or dimming functionality to reduce energy consumption in areas with intermittent use.
