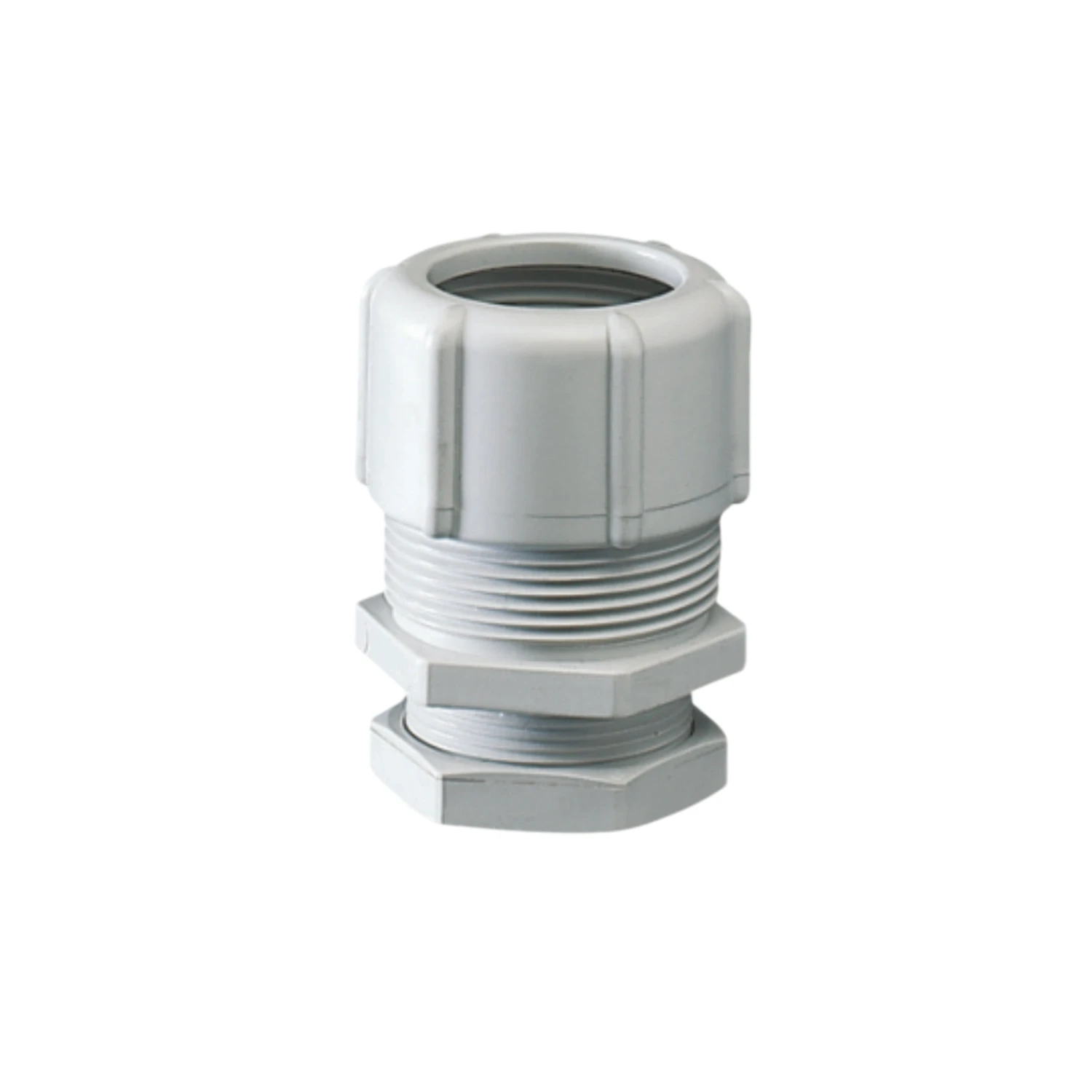

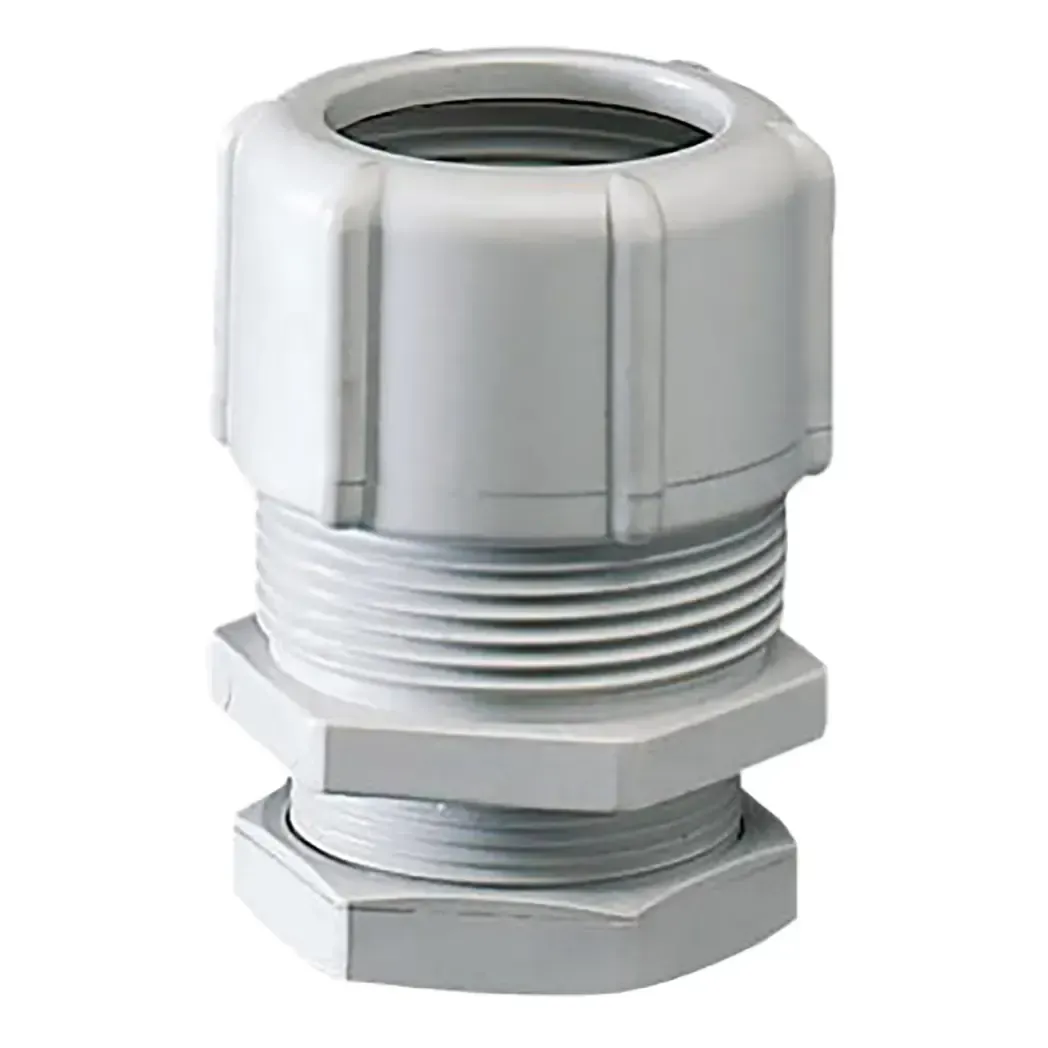

Standard PG16 Shockproof Polymer Conduit Gland Grey RAL 7035 GW50416

Photo is representative

Standard PG16 Shockproof Polymer Conduit Gland Grey RAL 7035 GW50416

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GW50416
GTIN —
Stock status: In stock

priced individually

Net price: £1.77

Gross price

£2.12

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Conduit entry gland for 20mm rigid or corrugated conduit. PG16 thread, mounts into a 23mm hole. Part of the Gewiss GW FIT Range for rigid pipe and flexible conduit systems.

Suited to residential, tertiary, and industrial installations.

  • Thread: PG16
  • External conduit Ø: 20mm
  • Mounting hole Ø: 23mm
  • IP66 with rigid conduit / IP54 with corrugated conduit
  • Material: Shockproof polymer, grey RAL 7035
  • Operating temp: -5°C to +60°C
  • Glow wire: 750°C
Specifications

Thread Size

PG16

External Conduit Diameter

20mm

Mounting Hole Diameter

23mm

IP Rating (Rigid Conduit)

IP66

IP Rating (Corrugated Conduit)

IP54

Material

Shockproof polymer

Colour

Grey RAL 7035

Operating Temperature

-5°C to +60°C

Glow Wire Test

750°C

Overall Length

33mm

Base Width

29mm

Standard

EN 61386-1, EN 60670-1
