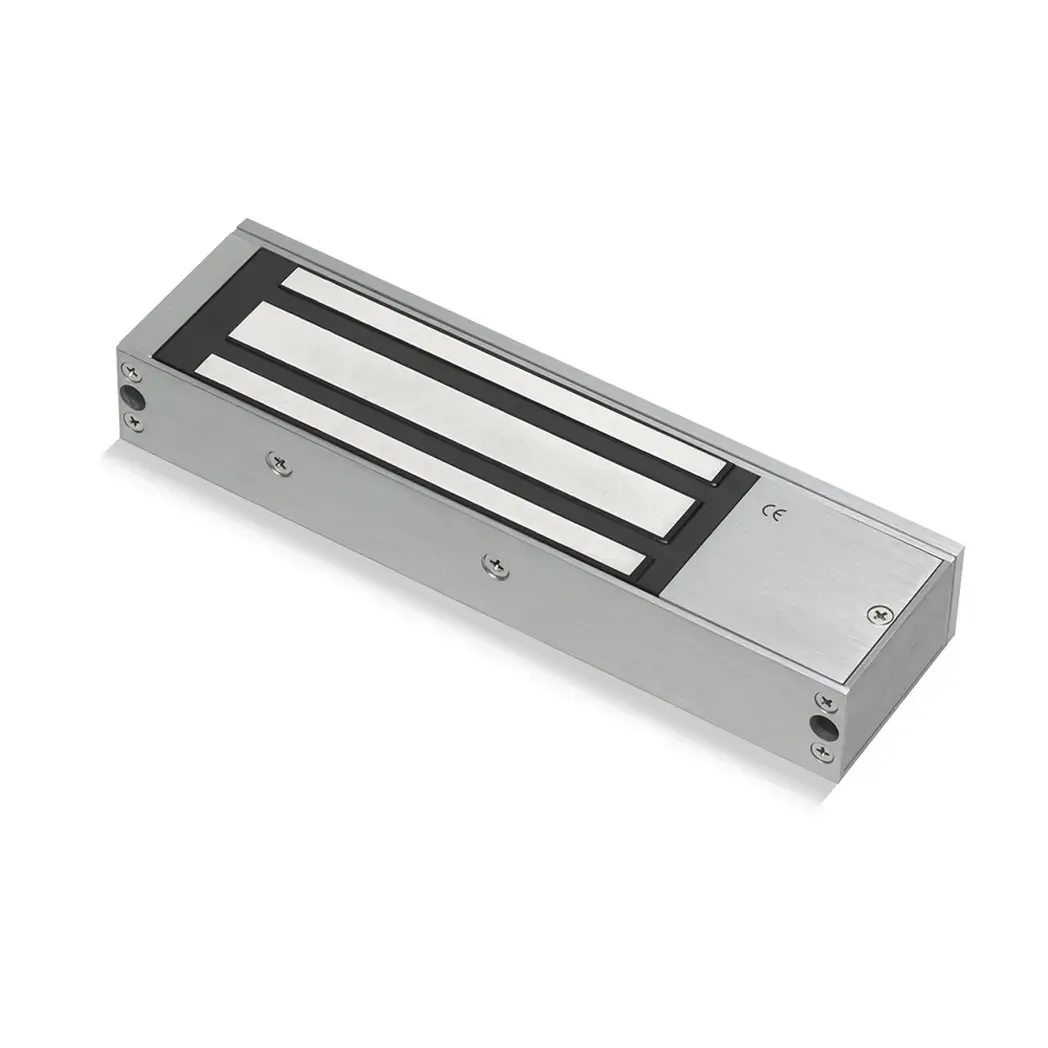

A10010 - Maglock Electromagnetic 12/24VDC 1200lb Pressure

Photo is representative

Maglock Electromagnetic 12/24VDC 1200lb Pressure

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code A10010
GTIN —
Stock status: 5 in stock

priced individually

More arriving soon

Net price: £63.14

Gross price

£75.77

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

This Maglock features an operating voltage of 12~24Vdc, with an aluminium housing and holding force of up to 1,200lbs x 2 (545Kg). Ideal for securing doors with high pressure requirements.

Specifications

Weight

5.0kg (approx)

Humidity

0~95% non-condensing

Current Draw

500mA at 12Vdc, 250mA at 24Vdc

Holding Force

1,200lbs x 2 (545Kg)

Armature Finish

Electro-less Nickel Plated

Housing Material

Aluminium

Operating Voltage

12~24Vdc

Voltage Tolerance

15%

Operating Temperature

-10~55 C (14 to 131 F)

Lock Surface Temperature

Current Temperature + 20%
