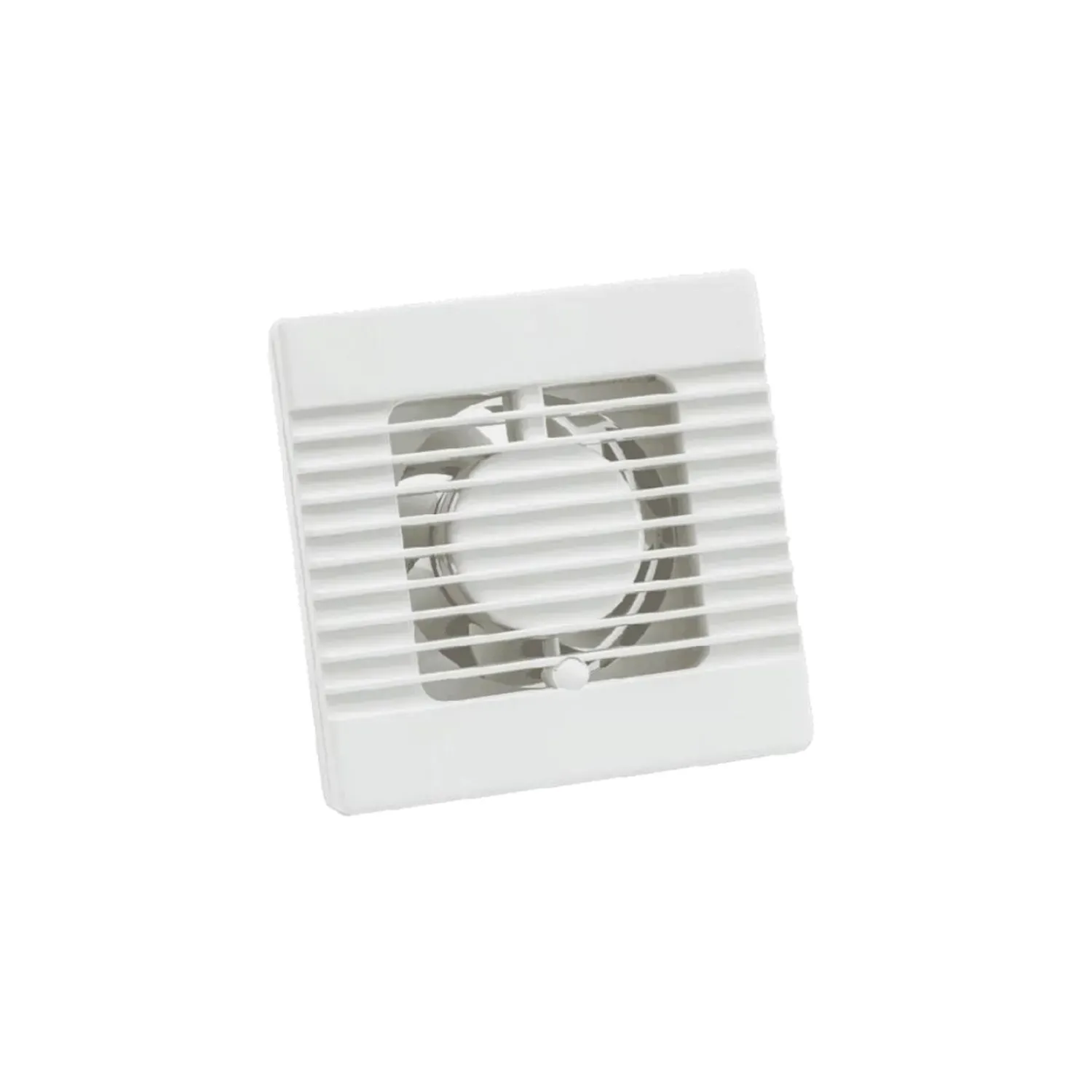

Manrose Intervent NVF100T 4 Inch Axial Timer Extractor Fan 220-240V White

Photo is representative

Manrose Intervent NVF100T 4 Inch Axial Timer Extractor Fan 220-240V White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code A10T
GTIN
Stock status: In stock

priced individually

More arriving soon

Net price: £10.87

Gross price

£13.05

100mm axial fan from Manrose’s Intervent range. Intermittent operation with an integral adjustable electronic timer — runs on for 1 to 20 minutes after the remote switching source (e.g. light switch) opens. Suited to domestic bathroom installations, wall or ceiling mount.

Class II double insulated — no earth required. IPX4 rated for bathroom zones.

  • Airflow: 85 m³/hr at max 20 Pa
  • Noise: 41.0 dB(A)
  • Max duct run: 1.5m
  • Spigot: 98mm (fits 100mm/4” ducting)
  • Fuse: 3A
Specifications

Airflow

23 l/s (85 m³/hr)

Noise Level

41.0 dB(A)

Max Static Pressure

20 Pa

Fan Speed

2400 RPM

Operation Type

Intermittent — integral adjustable electronic timer

Timer Range

1 to 20 minutes

Max Duct Run

1.5m

Duct Spigot Diameter

98mm (100mm/4" ducting)

Voltage

220-240V AC, 50Hz

Power Consumption

15W / 20W

IP Rating

IPX4

Insulation Class

Class II (Double Insulated — no earth required)

Fuse Requirement

3A

Max Operating Temperature

40°C

Facia Dimensions

155mm²

Facia Depth

27mm

Spigot Depth

50mm

Housing Material

ABS thermoplastic

Mounting

Wall or ceiling
