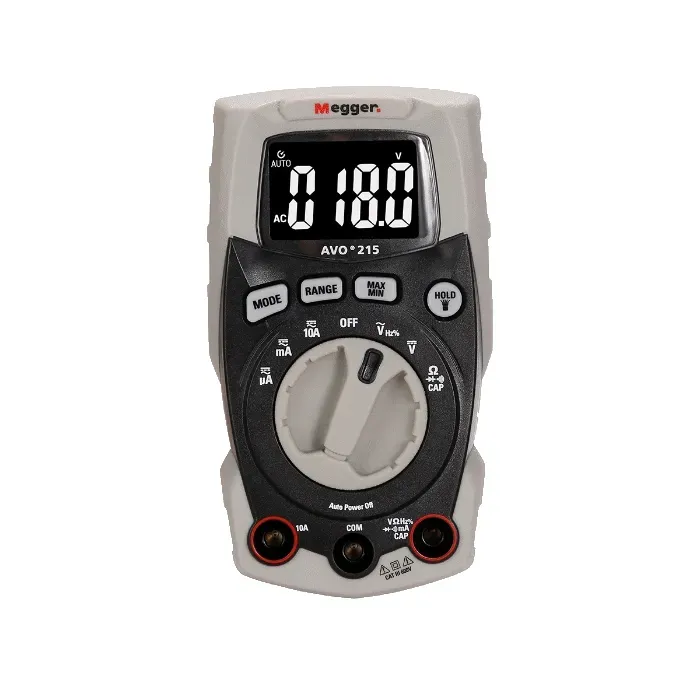

Megger 1015‑233 Digital Multimeter (AVO 215)
The Megger AVO 215 (1015‑233) is a compact, rugged True RMS digital multimeter designed for electricians and field technicians. With a CAT III 600 V safety rating and a high-contrast 4000-count LCD display with backlight, it delivers accurate measurements of AC/DC voltage up to 600 V, current up to 10 A, resistance, capacitance, frequency, duty cycle, and more. It also features continuity testing with audible/visual alerts, diode testing, MAX/MIN, data hold, an integrated flashlight, and a rear tilt stand. The device is robust, able to withstand drops up to 2 m, making it ideal for demanding environments
Online:
Product Features
Display | 4,000-count LCD with backlight |
---|---|
Voltage | AC/DC up to 600 V, True RMS |
Current | AC/DC up to 10 A (20 A for 30 s max) |
Resistance | 0 – 40 MΩ |
Capacitance | 0 – 4000 µF |
Frequency | 10 Hz – 10 kHz |
Box Content
- 1 x Megger AVO 215 multimeter
- 1 x Test leads (red & black)
- 1 x Carry pouch
- 1 x 2 × AAA batteries
- 1 x User manual & datasheet
Documents
Frequently Asked Questions
-
Is it True RMS?
Yes — ensures accurate measurements for non-sinusoidal waveforms
-
Does it have a flashlight?
Yes — built-in backlight for low-light work
-
What safety rating?
Rated CAT III 600 V, making it safe for distribution-level tasks
-
Can it handle 20 A current?
Yes — for up to 30 seconds at reduced accuracy
