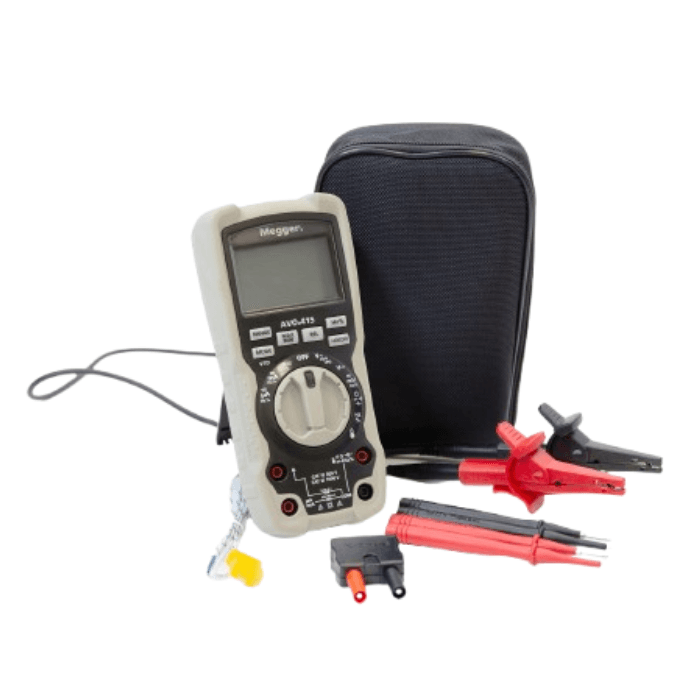

Photo is representative

Megger AVO415 TRMS Digital Multimeter (1015‑652)

The Megger AVO415 (1015‑652) is a rugged industrial-grade True RMS multimeter built for harsh environments—rated IP67 and safety CAT III 1000 V / CAT IV 600 V. It features a 6000‑count backlit LCD, VFD‑compatible voltage measurement (50–700 V), low‑pass filter, built-in thermocouple input, and robust 2 m drop protection

Product Information

Stock Code 1015652
MPN 1015-652
GTIN —
Stock status: 4 available
Price: £240.12
incl. VAT, 20% priced individually

Product Features
Voltage (AC/DC) 60 mV to 1000 V; VFD range 50–700 V; True RMS
Current (AC/DC) 600 µA to 10 A
Resistance Up to 60 MΩ
Capacitance 99.99 nF to 99.99 mF
Frequency 9.999 Hz to 9.999 MHz
Temperature via Type-K thermocouple, –40 to 1000 °C
Continuity / Diode Test Audible buzzer (<50 Ω), diode bias 3.2 V

Box Content
  • 1 x AVO415 multimeter
  • 1 x 1 m non‑fused right-angle test leads (x2)
  • 1 x 4 mm exposed metal probes (x2)
  • 1 x CAT II probing tips (x2)
  • 1 x Red and black crocodile clips
  • 1 x Type‑K thermocouple adapter & lead
  • 1 x Soft carrying case
  • 1 x 4 mm protective caps (x2)
  • 1 x 9 V battery
  • 1 x User guide & datasheet

Documents

Frequently Asked Questions

  • Q: Does it work with VFDs?

    Yes—built-in VFD range (50–700 V) and low-pass filter ensure accurate readings on variable-frequency drives

  • Q: Is it waterproof?

    Yes—the housing is rated IP67 and drop-tested to 2 m .

  • Q: What temperature range does it cover?

    –40 °C to +1000 °C via the included Type‑K thermocouple
