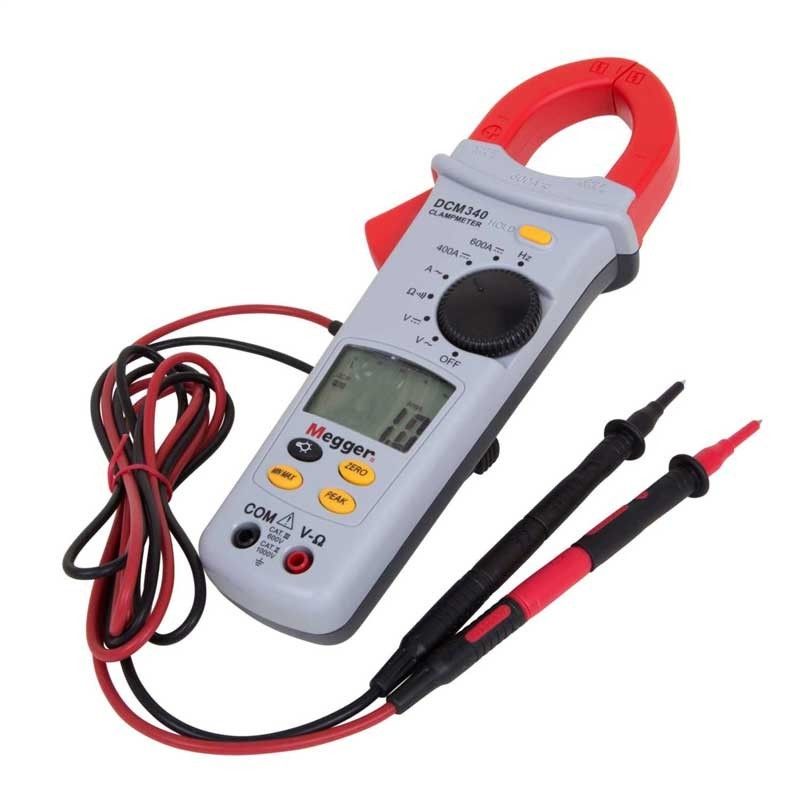

Megger DCM340 Digital Clamp Meter (1000‑305)

The Megger DCM340 is a versatile True‑RMS digital clamp meter, ideal for electricians, technicians, and maintenance professionals. It measures AC/DC current up to 600 A, voltage up to 600 V AC/DC, resistance up to 400 Ω, and frequency up to 400 Hz. Equipped with a 3½-digit, 4000-count LCD, a high-resolution bar graph, and backlight, it offers additional functions like peak/min/max, relative mode, continuity test, and data hold—all in a robust unit rated CAT III 600 V and drop-tested to 1.2 m

Stock Code: 1000305
Few in stock
Price 245.34 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Current (AC/DC)

    0–600 A

  • Voltage (AC/DC)

    0–600 V

  • Resistance

    Up to 400 Ω

  • Frequency

    20–400 Hz

  • Relative Mode (REL)

    Zero-offset measurements

  • Safety Rating

    CAT III 600 V, IEC 61010-1

  • Power Supply

    9 V PP3 (1 × 6LR61) battery

Box Content
  • 1 x Megger DCM340 clamp meter
  • 1 x Test leads
  • 1 x Carrying case
  • 1 x 9 V PP3 battery
  • 1 x User guide & datasheet

Documents

Frequently Asked Questions

  • Q: Can it measure both AC and DC current?

    A: Yes—up to 600 A for both AC and DC

  • Q: Are safety-rated for heavy‑duty use?

    A: Yes – CAT III 600 V rating and robust build

  • Q: Does it record min/max or peak values?

    A: Yes, includes peak/min/max and data-hold features

  • Q: How rugged is it?

    A: Drop-tested to 1.2 m and designed for mains distribution environments
