Megger MPU690 Proving Unit (Part No. 1001‑561)

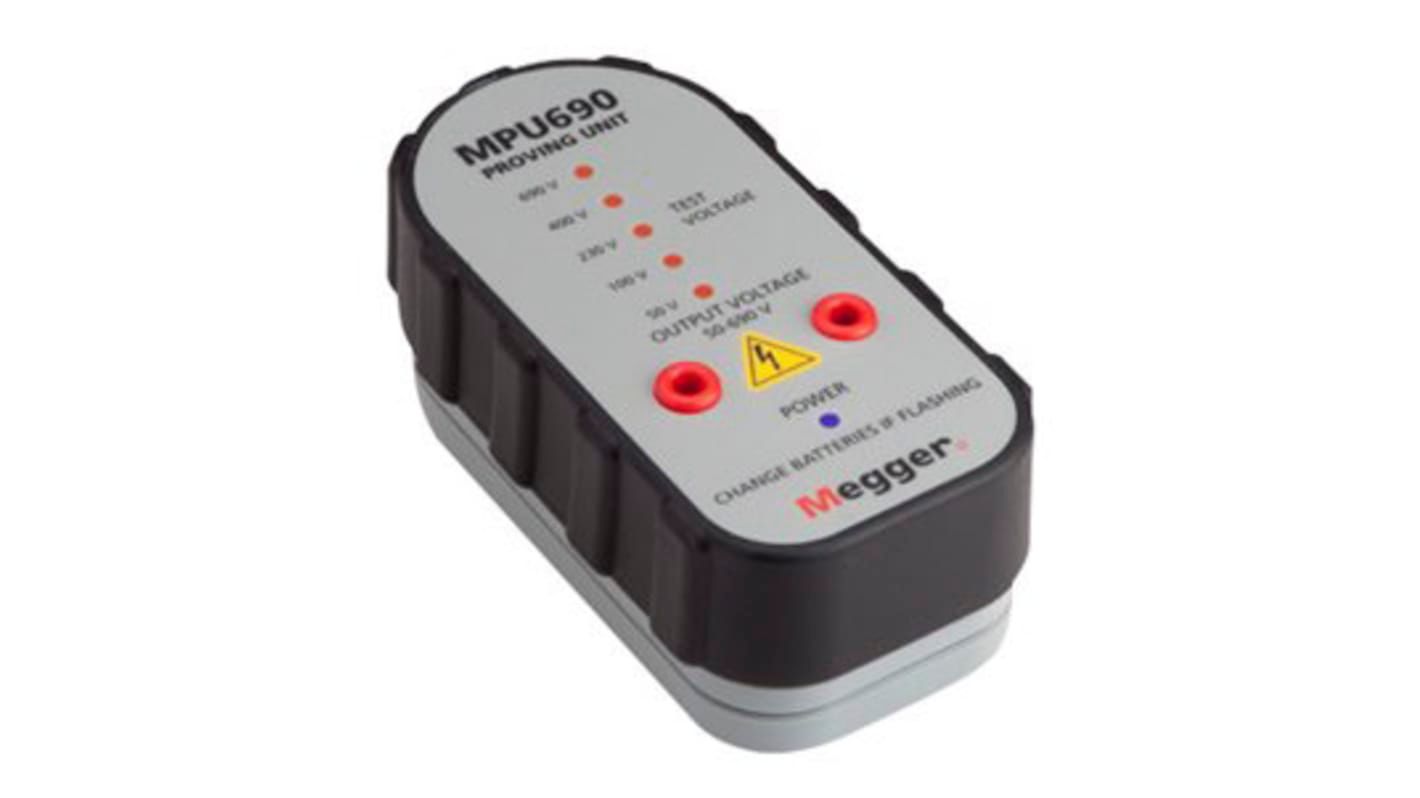

The Megger MPU690 is a portable, battery-powered proving unit that simulates AC mains voltage to verify the correct operation of 2‑pole voltage testers. It outputs five stepped voltage levels (690 → 400 → 230 → 100 → 50 V AC) automatically when test probes are inserted. LEDs indicate output level and battery status. It features a rugged case with a magnetic base and high output power for modern voltage testers including indicator lamps
Online:
Product Features
| Five-step output voltage | 50, 100, 230, 400, 690 V AC |
|---|---|
| Automatic operation | upon probe insertion |
| High output power (≈10 W) | suitable for test lamps |
| Rugged IP‑rated housing | travel-friendly |
Box Content
- 1 x Megger MPU690 proving unit
- 1 x Magnetic base integrated
- 1 x (Optionally) protective pouch or case may be included
- 1 x 6 × AA batteries installed or provided
Frequently Asked Questions
-
Q: What voltage levels does it generate?
A: It outputs five stepped nominal voltages: 690, 400, 230, 100, and 50 V AC
-
Q: Does it have an on/off switch?
A: No—it's totally automatic: it powers on when probes are inserted and switches off when removed
-
Q: What kind of batteries does it use?
A: Six AA (LR06) alkaline batteries—designed for long life
-
Q: Is it safe to use around test lamps?
A: Yes—the 10 W output and terminal spacing accommodate tester lamps
-
Q: Can it be used outdoors?
A: It's rugged with magnetic base, suitable for harsh environments; recommended for indoor use within spec range .
