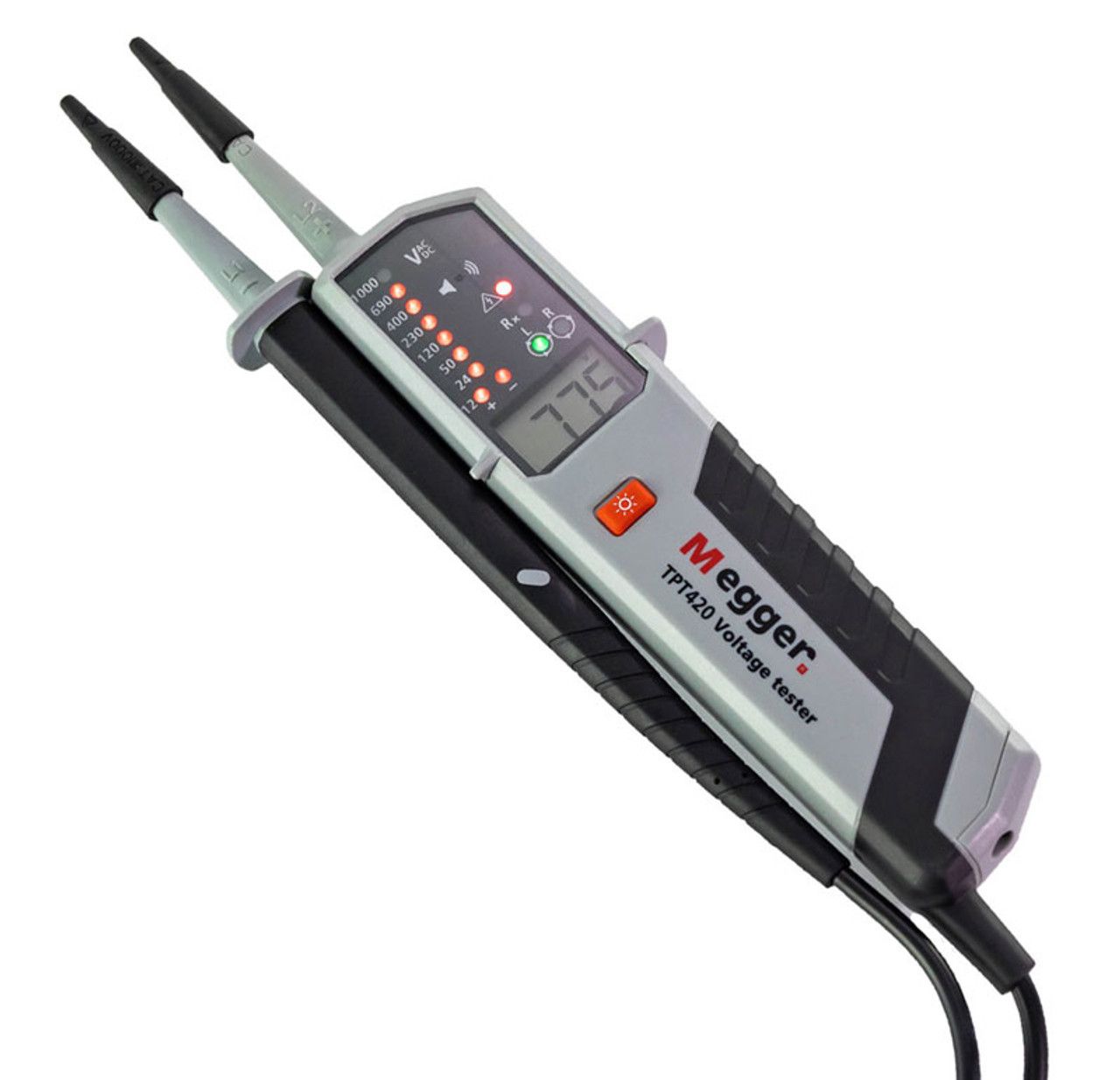

Megger TPT420 Digital 2‑Pole Voltage Tester (1013‑189)
The Megger TPT420 (part no. 1013‑189) is a rugged, user-friendly voltage tester combining LED and LCD displays for accurate AC/DC voltage checks up to 1000 V AC and 1500 V DC. It includes continuity testing with visual and audible alerts, simplified phase rotation, and single-pole voltage detection—all packaged in a CAT IV 1000 V and IP64-rated housing. Even with dead batteries, it still detects live voltage. An integrated torch makes it perfect for use in dim conditions .
Online:
Product Features
Display | Dual display with 13 LEDs and 4-digit LCD |
---|---|
Voltage range | AC 12–1000 V, DC 12–1500 V |
Continuity check | Audible and visual indication up to 500 kΩ |
Phase rotation | Simplified test without switching probes |
Single-pole detection | Detects AC voltage from 100–1000 V |
Safety rating | CAT IV 1000 V |
Ingress protection | IP64 rated housing |
Probe tip protection | GS38 compliant removable caps |
Box Content
- 1 x Megger TPT420 tester (1013‑189)
- 1 x Two test probes with GS38 shrouds
- 1 x Protective pouch (Megger 2005‑536)
- 1 x User instructions and safety documentation
- 1 x 2 × AAA batteries
Documents
Frequently Asked Questions
-
Can it detect voltage with flat batteries?
Yes—voltage detection still works via capacitive sensing even with dead batteries .
-
What voltage ranges are supported?
AC: 12–1000 V; DC: 12–1500 V; continuity via buzzer up to 500 kΩ
-
Does it support phase rotation testing?
Yes—simplified phase rotation feature without probe crossing
-
What are its safety and protection ratings?
CAT IV 1000 V, IP64, compliant with IEC 61243‑3, EN 61010, and DIN VDE standards
-
Is there a built-in light?
Yes, a bright integrated LED torch aids use in dimly lit environments
