Photo is representative

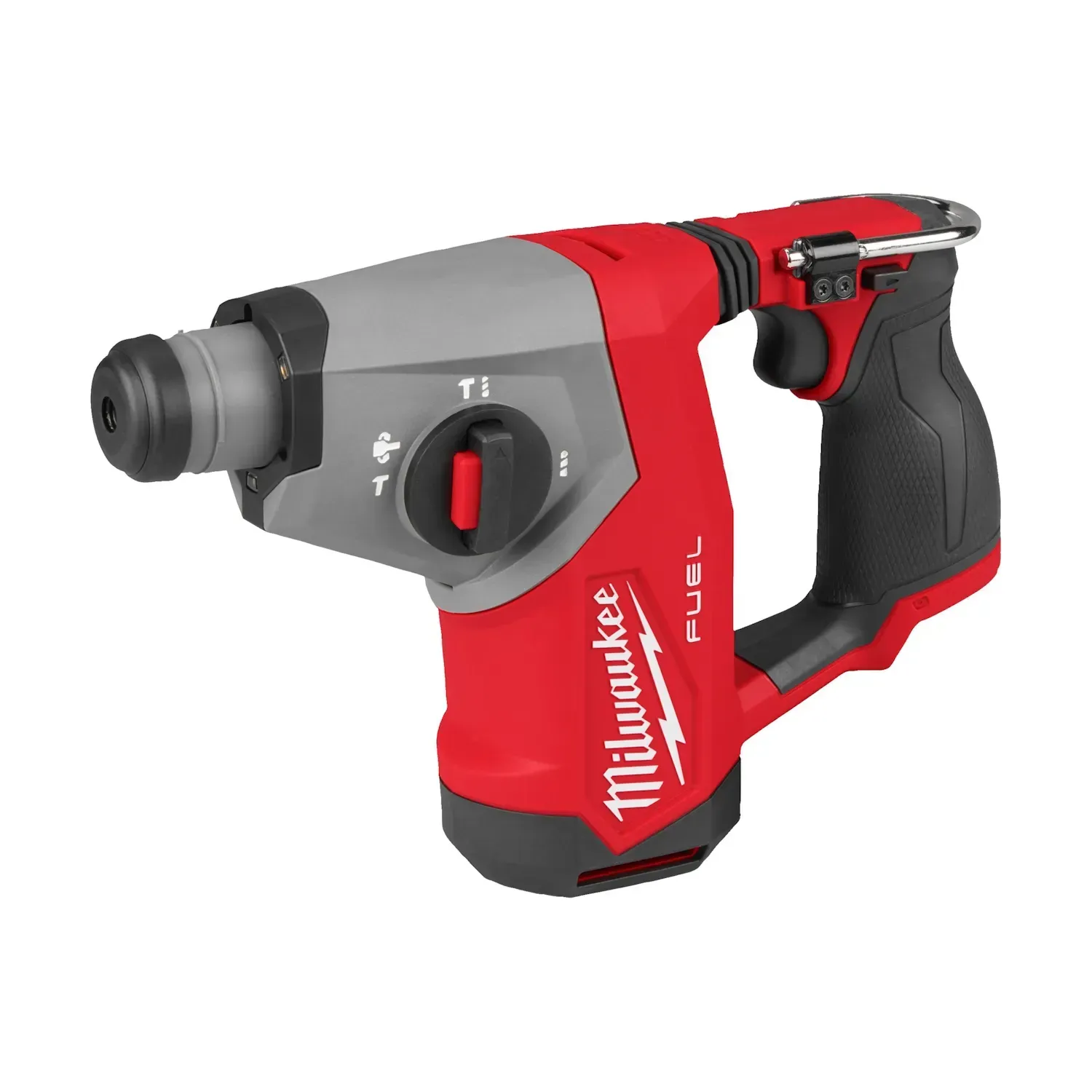

Milwaukee M12™ FUEL Compact SDS-Plus Rotary Hammer 1.15J 16mm - M12 FHAC16-0

Milwaukee M12™ FUEL compact SDS-Plus rotary hammer delivers 1.15J blow energy, 0–1,200 RPM, and 16mm maximum concrete drilling capacity.

4-mode operation: rotary hammer, hammer only, rotation only, variolock
POWERSTATE™ brushless motor, REDLINK PLUS™ electronics
AVS anti-vibration system and ergonomic side handle
Compatible with all M12™ RedLithium™ batteries
Optimised for 5–12mm hammer drilling in concrete
Model: M12 FHAC16-0

Stock Code M12FHAC16

MPN —

GTIN —

5 available

£240.17

incl. VAT, 20% priced individually

Product Features

Voltage	12V M12™ cordless
Impact Energy	1.15 Joules (EPTA)
Drilling Capacity (Concrete)	16mm maximum
Optimised Drilling Capacity	5–12mm in concrete
Percussion Rate	0–4,410 BPM
No Load Speed	0–1,200 RPM
Tool Reception	SDS-Plus
Weight (with battery)	2.3 kg (with M12 HB5)

Frequently Asked Questions

What battery system does this rotary hammer use?

The M12 FHAC16-0 uses Milwaukee M12™ RedLithium™ batteries and is compatible with all batteries in the M12™ range.
What is the impact energy and maximum drilling capacity?

It delivers 1.15 Joules of impact energy with a maximum drilling capacity of 16mm in concrete. Optimised for 5–12mm drilling.
Does this tool include batteries and charger?

No, the M12 FHAC16-0 is supplied as a bare tool only—batteries and charger are sold separately.
What professional applications is this rotary hammer designed for?

Ideal for light concrete fixing, electrical installations, HVAC fitting, and anchor setting in confined or overhead locations.
What vibration control features does the tool have?

It uses Milwaukee’s AVS anti-vibration system and includes an anti-vibration side handle for reduced user fatigue during extended use.
What operation modes are available?

Four-mode operation: rotary hammer, hammer only, rotation only, and variolock (selectable chisel position).
