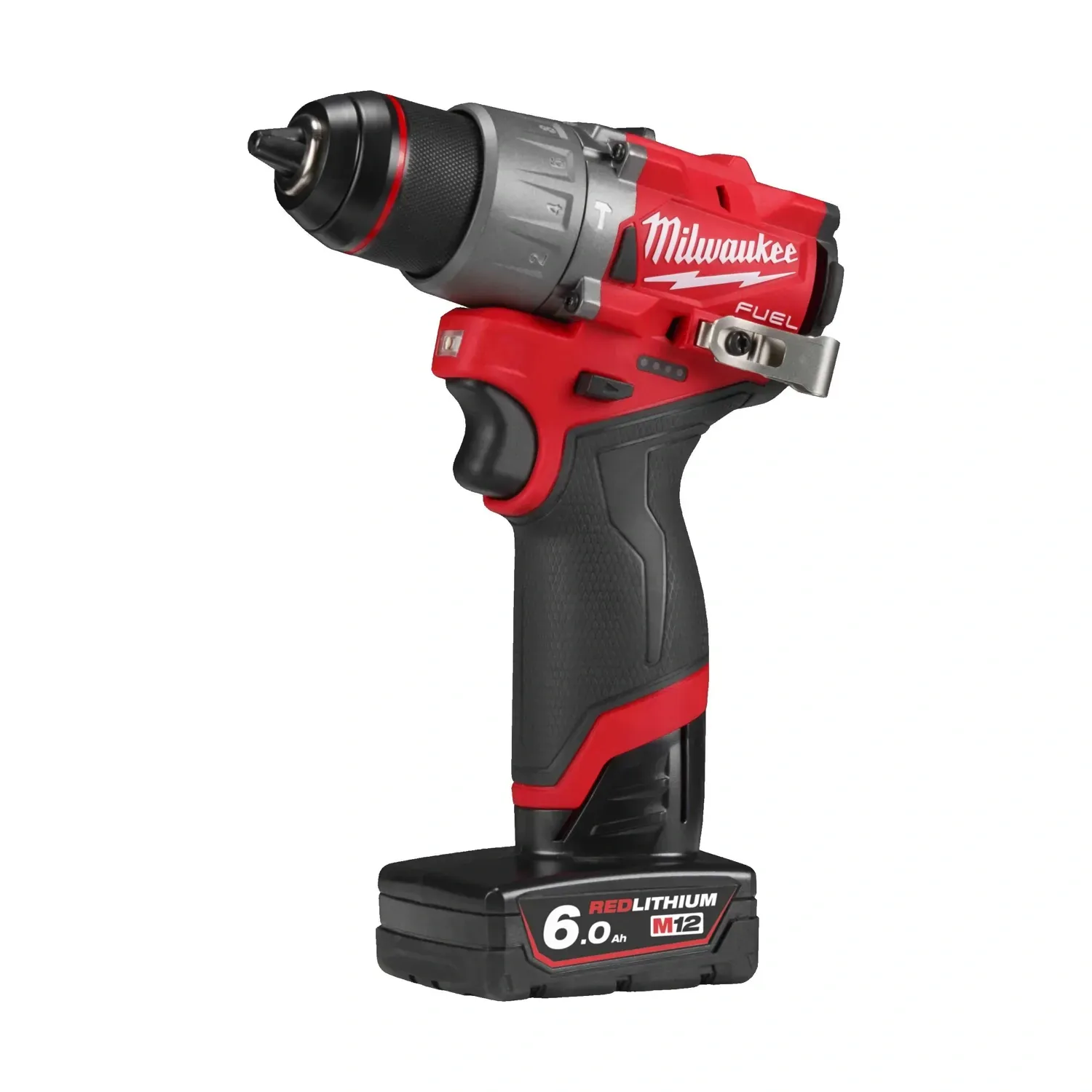

Milwaukee M12™ FUEL Sub Compact Percussion Drill 45Nm 2x6.0Ah Kit - M12 FPD2-602X
Milwaukee M12™ FUEL sub compact percussion drill delivers 45 Nm torque, 0-1,550 RPM, and 0-22,500 BPM percussion rate, with 152mm compact length. Supplied as a kit with 2x 6.0Ah M12™ batteries, charger, and HD Box.
- 13mm heavy-duty metal chuck for quick bit changes and retention
- 2-speed gearbox (0-450⁄0-1,550 RPM)
- Max drilling capacities: 35mm wood, 13mm steel/masonry
- Mechanical clutch with 13 torque settings plus hammer mode
- Only 1.4kg with battery (M12 B6) for overhead and tight access
Product Information
Product Features
Frequently Asked Questions
-
What battery system does this drill use?
This drill is compatible with all Milwaukee M12™ RedLithium™ batteries and is supplied with two 6.0Ah packs in this kit.
-
What is the maximum torque and speed delivered by this model?
The M12 FUEL percussion drill delivers 45 Nm maximum torque with two mechanical speeds: 0-450 RPM (low), 0-1,550 RPM (high), and up to 22,500 blows per minute in hammer mode.
-
Does this kit include batteries and a charger?
Yes, the kit (M12 FPD2-602X) includes two 6.0Ah M12™ Li-ion battery packs, an M12™ charger (C12 C), and an HD Box.
-
What professional applications is this tool suited for?
Suitable for electrical, plumbing, HVAC, and installation work requiring compact size and power, including drilling in wood (up to 35mm), steel, and masonry (up to 13mm), and screwdriving.
-
What is the chuck capacity and type?
It features a 13 mm heavy-duty metal chuck for quick, secure bit changes and retention.
-
How compact and lightweight is this drill?
With a length of only 152mm and weight of 1.4kg (with 6.0Ah battery), it's designed for overhead and tight space drilling.
