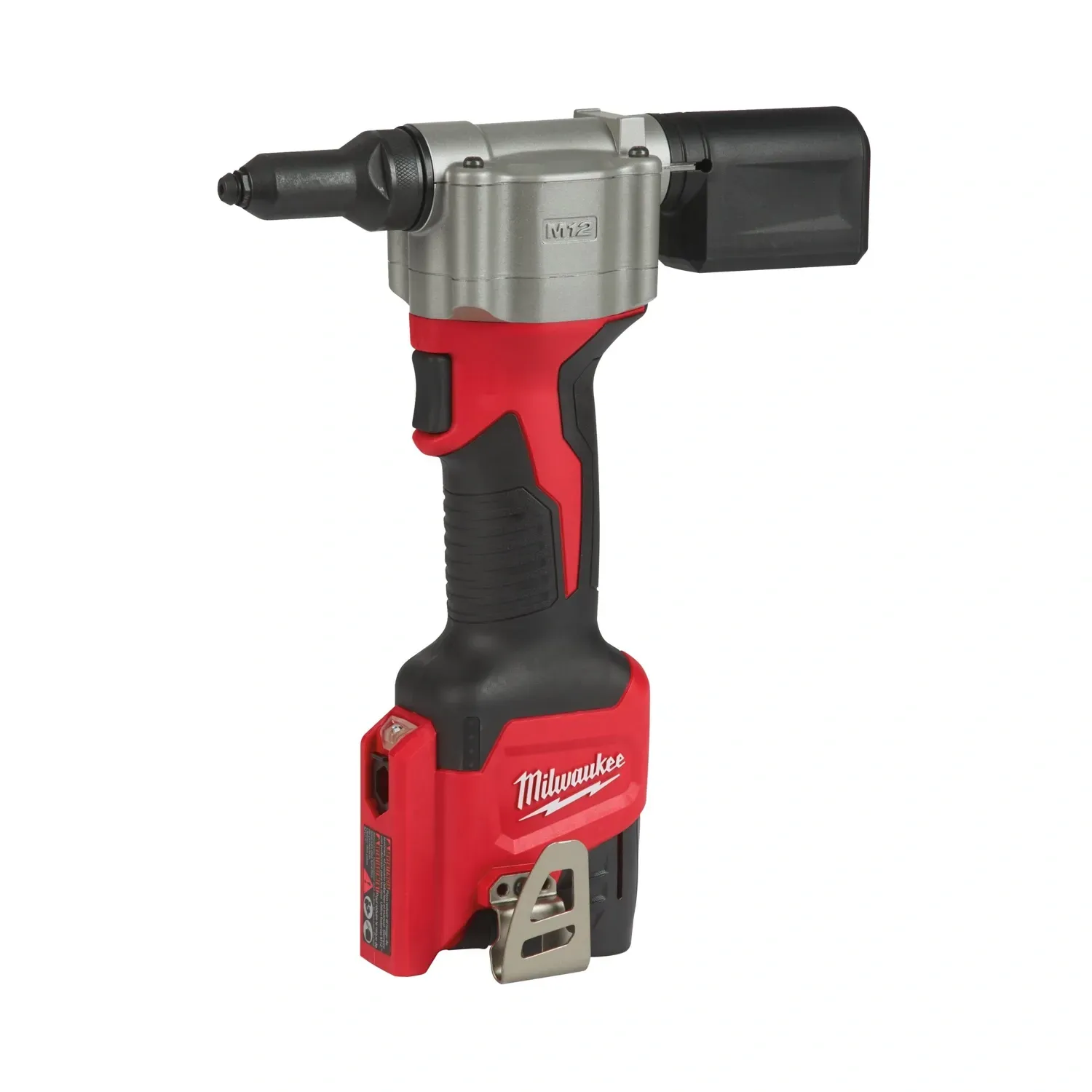

Milwaukee M12 sub compact rivet tool kit 9,000N pulling force

Photo is representative

Milwaukee M12™ Sub Compact Rivet Tool Kit 2.4–4.8mm 9,000N - M12 BPRT-201X

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 4933464406
GTIN —
Stock status: Out of stock

priced individually

Net price: £232.68

Gross price

£279.22

Milwaukee M12™ sub compact rivet tool kit with 9,000N pulling force, 20.32mm stroke length, and up to 325 x 4.8mm stainless steel rivets per charge (2.0Ah battery).

  • Compatible with all M12™ batteries; supplied with 2.0Ah M12 B2 battery
  • Rivets aluminium, steel, copper, stainless steel (2.4–4.8mm)
  • Tool-free jaw cleaning, nose piece storage, retention tip set (2.4, 3.2, 4.0, 4.8mm)
  • Includes charger, HD Box, and integrated belt hook
  • 273mm height, 66.8mm width, 165mm length (without mandrel collector)
  • Model: M12 BPRT-201X
Specifications

Voltage

12V M12™ cordless

Pulling Force

9,000N maximum

Stroke Length

20.32mm

Rivet Capacity

325 x 4.8mm stainless steel rivets per charge (2.0Ah)

Rivet Diameter Range

2.4–4.8mm

Compatible Rivet Materials

Aluminium, steel, stainless steel, copper

Kit Contents

M12 B2 2.0Ah battery, C12 C charger, HD Box, tips (2.4/3.2/4.0/4.8mm)

Dimensions

273mm (H) x 66.8mm (W) x 165mm (L) (tool only)

Frequently asked questions

What battery system does this rivet tool use?

The Milwaukee M12™ rivet tool uses all M12™ RedLithium™ batteries. This kit includes a 2.0Ah M12 B2 battery, and the tool is compatible with any Milwaukee M12™ battery pack.

What is the maximum pulling force and rivet range for this tool?

The tool delivers up to 9,000N maximum pulling force and drives rivets from 2.4mm up to 4.8mm diameter, handling aluminium, steel, stainless steel, and copper rivets.

What is included in the Milwaukee M12 BPRT-201X kit?

Kit includes the M12™ sub compact rivet tool, one M12 B2 2.0Ah battery, C12 C charger, HD Box, and four nose tips (2.4mm, 3.2mm, 4.0mm, 4.8mm).

What types of professional applications is this rivet tool designed for?

Perfect for electrical installation, HVAC duct mounting, general construction fastening, and maintenance tasks involving aluminium, steel, and stainless steel rivets.

How many rivets can be set per charge?

With the supplied 2.0Ah M12™ battery, you can set up to 325 x 4.8mm stainless steel rivets (results may vary with rivet size and material).

Does the tool feature tool-free jaw cleaning or parts storage?

Yes, the tool has tool-free access to clean the jaws, integrated on-board nose piece storage, and a retention tip for holding rivets in any orientation.
