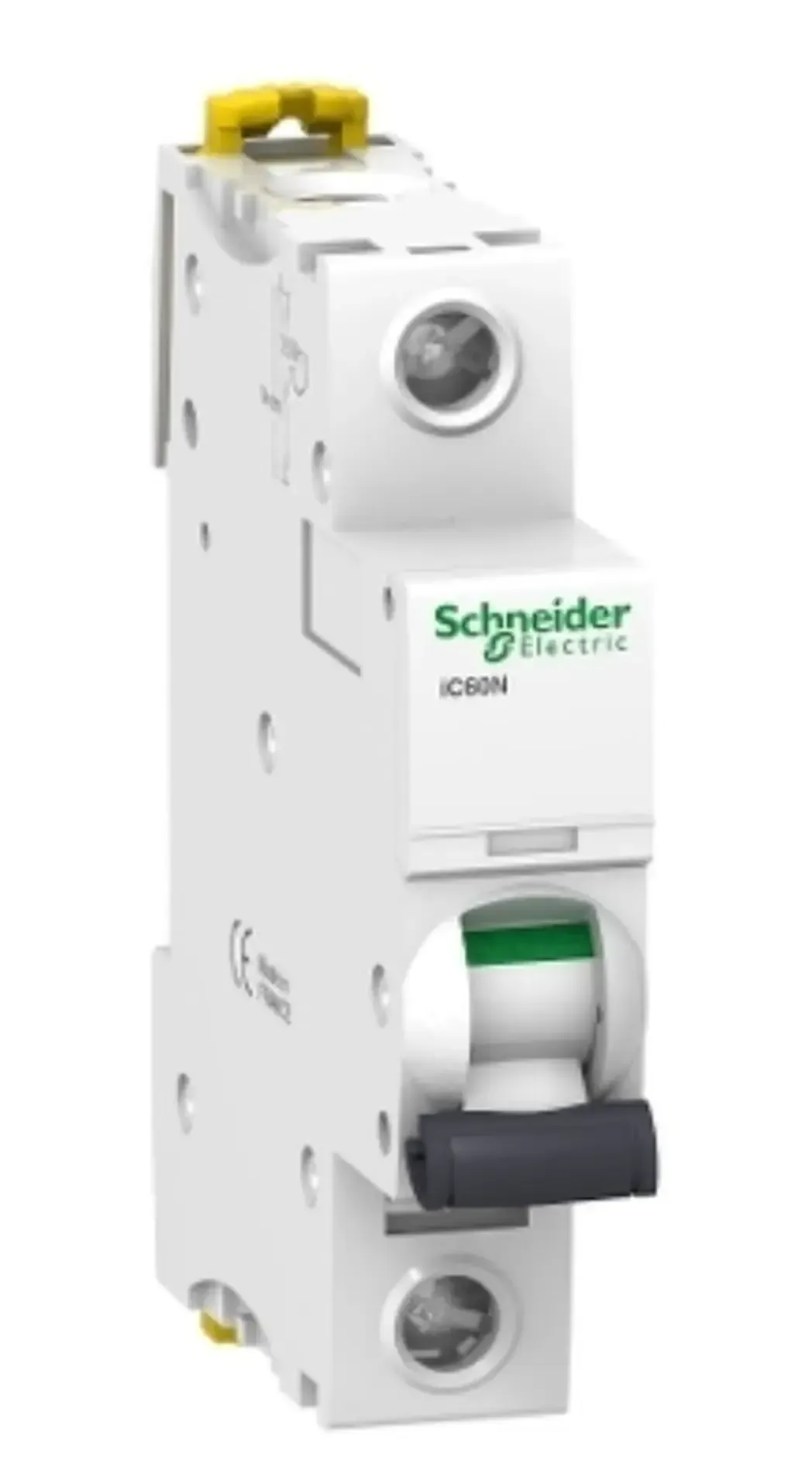

Miniature Circuit Breaker A9F74110 1P 10A Type C Schneider
The Miniature Circuit Breaker A9F74110 is a 1P circuit breaker with a 10A rated current and C tripping curve. It protects circuits against short circuit and overload currents, with a rated short circuit breaking capacity of 10kA at 220VAC to 240VAC. This MCB complies with industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. Features include a VisiTrip indicator for quick fault identification, VisiSafe green strip for downstream maintenance, and a fast closing mechanism for improved service life. The product is designed for DIN rail mounting, with dimensions of (W) 18mm x (H) 85mm x (D) 78.5mm.
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
SKU
A9F74110
-
Mounting
DIN Rail
-
Standards
EN/IEC 60898-1, EN/IEC 60947-2
-
Dimensions
(W) 18mm x (H) 85mm x (D) 78.5mm
-
Rated Current
10A
-
Tripping Curve
C
-
Unique Features
VisiTrip Indicator, VisiSafe Green Strip, Fast Closing Mechanism
-
Short Circuit Breaking Capacity
10kA at 220VAC to 240VAC
