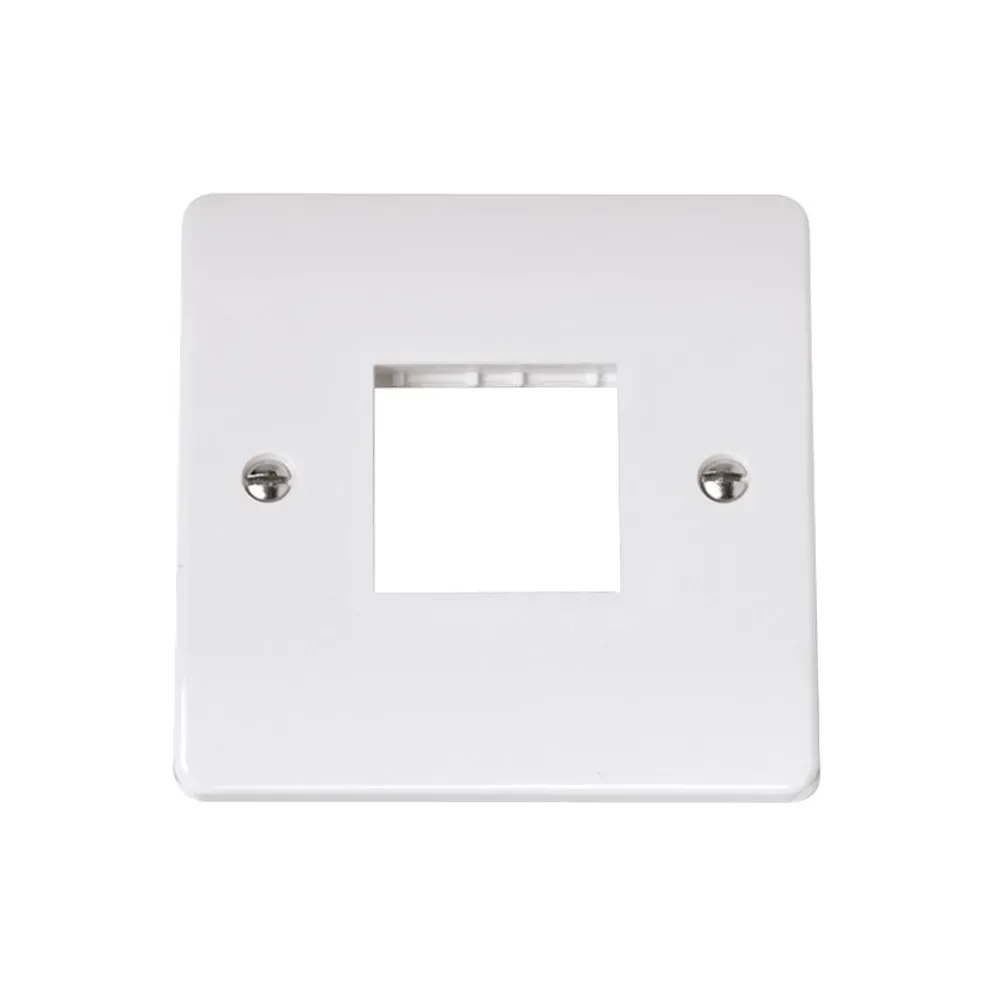

Click Mode 1-gang MiniGrid unfurnished plate 2 apertures polar white

Photo is representative

Click Mode 1-Gang MiniGrid Unfurnished Plate 2 Apertures - Polar White

1-gang MiniGrid unfurnished plate with 2 apertures for modular configuration in domestic installations. Accepts 2 single-width or 1 double-width MiniGrid modules with 86x86mm standard dimensions. BS 5733 compliant plate with antimicrobial silver ion technology providing 99.9% kill rate against bacteria and viruses. 60.3mm fixing centres compatible with standard backboxes. Click Mode rounded profile design with urea formaldehyde construction for professional durability. Installation depth varies by modules fitted, suitable for ring main and lighting circuits through compatible modules.

Stock Code: CMA402

Online:

In stock
Price 1.35 £
incl. VAT, 20% priced individually

Product Features

Gang Configuration 1-gang unfurnished plate
Aperture Count 2 apertures for modules
Module Compatibility 2 single-width or 1 double-width
Plate Dimensions 86 x 86 x 9.5mm
Fixing Centres 60.3mm horizontal spacing
Compliance Standard BS 5733 certified
Ingress Protection IP20 rated
Antimicrobial Protection 99.9% kill rate certified
Operating Temperature -5°C to +40°C
Construction Material Urea formaldehyde front plate
System Compatibility MiniGrid modular system
Warranty Period 25 years manufacturer warranty

Installation Requirements

Fixing Centres

60.3mm horizontal spacing matches standard UK backbox dimensions. Single central screw secures all fitted modules simultaneously.

Module Configuration

2 apertures accept any combination: 2x rocker switches, 1x dimmer + 1x switch, or 1x double USB socket.

Depth Planning

Unfurnished plate depth 9.5mm plus module depth. Plan total assembly depth against available backbox space.

Professional Applications

Custom Configurations

Create bespoke switch/socket combinations for client requirements. Mix lighting controls with power outlets in single plate.

Future-Proof Installation

Modules easily changed without rewiring. Upgrade from basic switches to dimmer or USB modules when required.

Healthcare Environments

Antimicrobial certification suitable for medical facilities, care homes, and food preparation areas requiring infection control.

Frequently Asked Questions

  • What backbox depth do I need for this MiniGrid plate?

    Backbox depth depends on modules fitted. Standard 35mm for basic modules, 47mm for complex modules like dimmers or USB outlets.

  • Can I fit 2 double-width modules in this plate?

    No, this 2-aperture plate accepts either 2 single-width modules OR 1 double-width module, not 2 double-width modules.

  • Is this compatible with other manufacturer's grid systems?

    No, Click MiniGrid system uses proprietary 50x25mm modules. Only compatible with Click MiniGrid range modules and accessories.

  • What's the antimicrobial certification for healthcare installations?

    Tested to kill 99.9% bacteria (MRSA, E-Coli, Salmonella, Klebsiella) and 99.9% enveloped viruses, 92% non-enveloped viruses within contact time.
