Click New Media MM1001WW 1W LED Module Warm White 50x50mm with 110mm fly lead
MM1001WW 1W LED Module 50x50mm Warm White 230V~

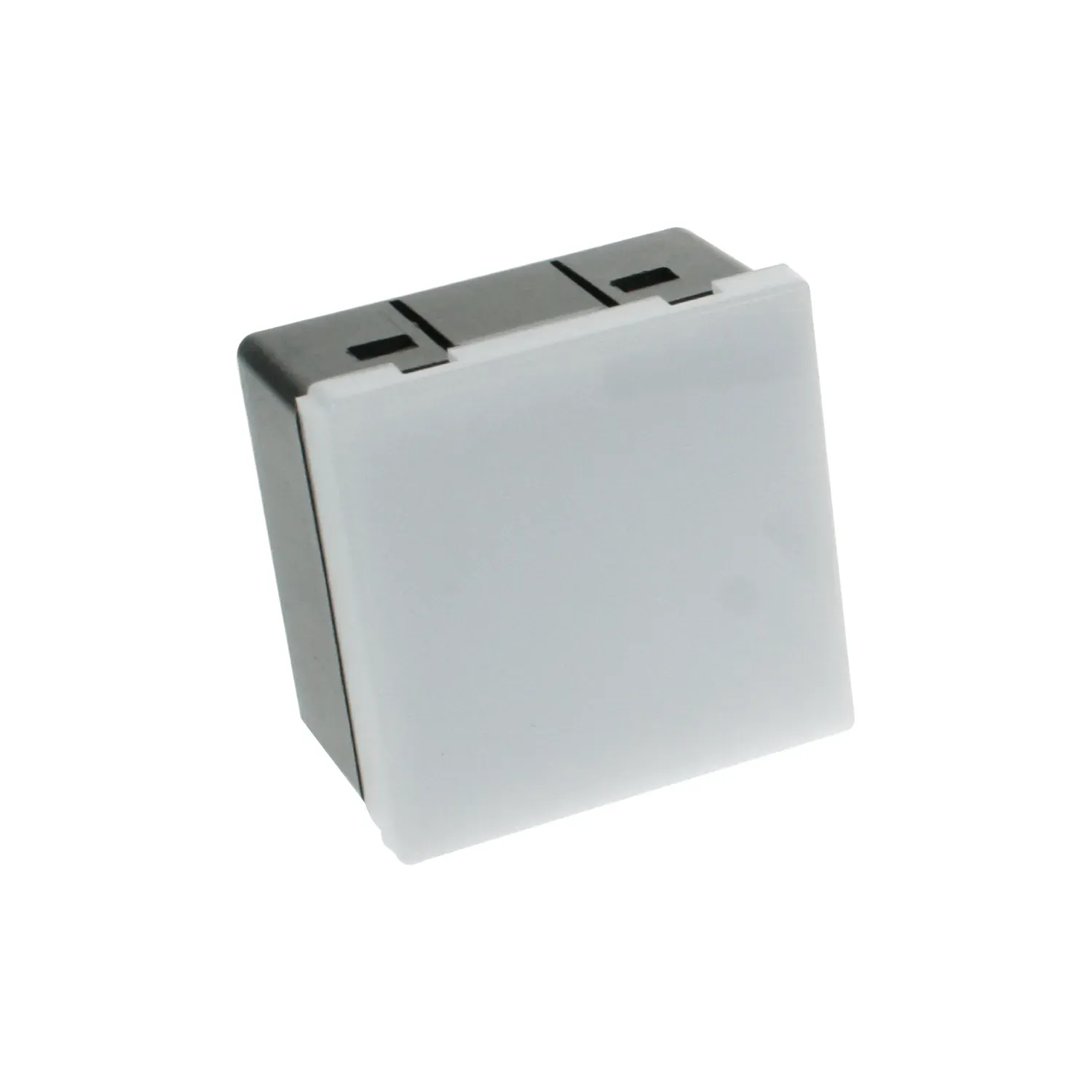

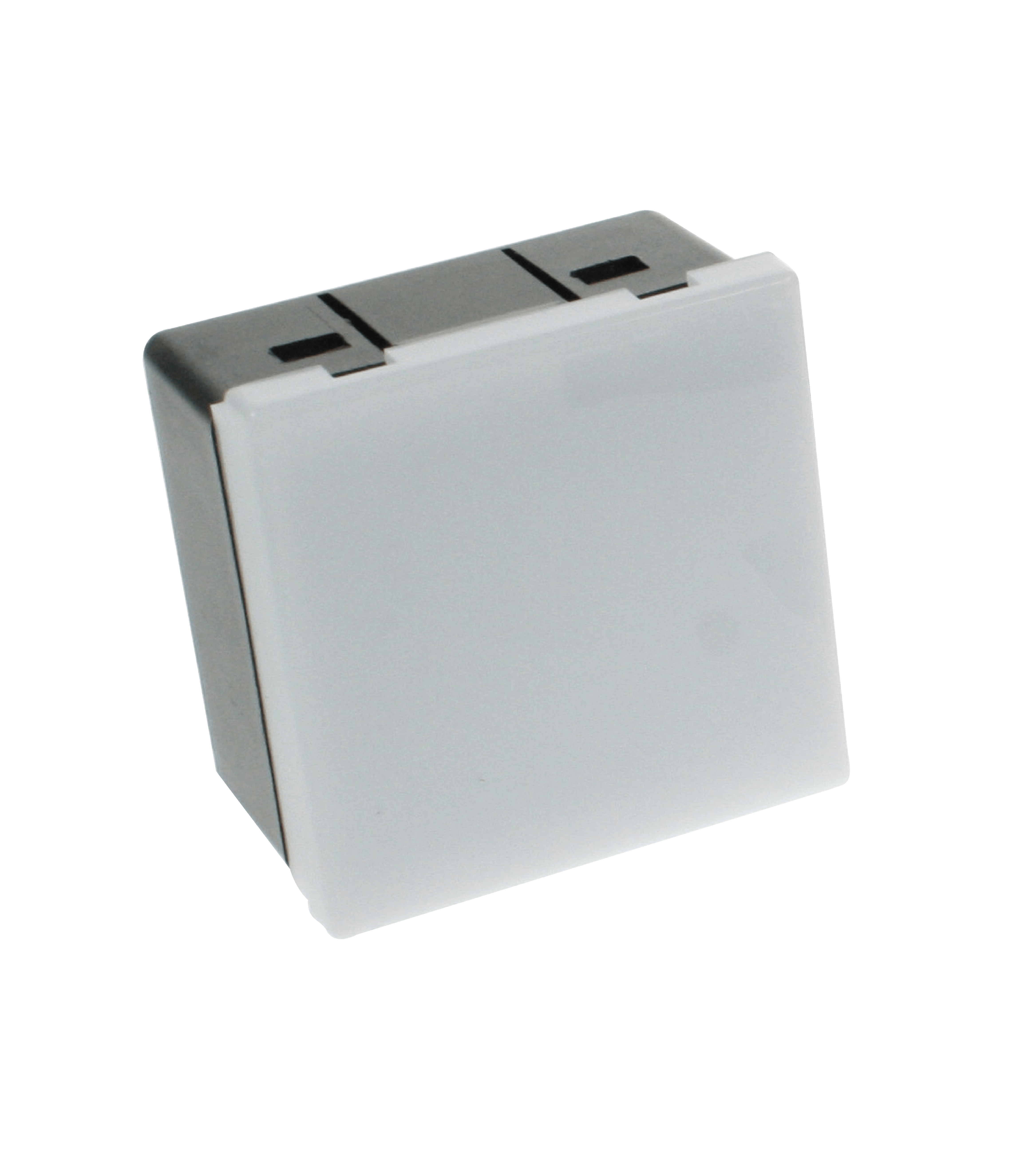

Photo is representative

Click New Media MM1001WW 1W LED Module Warm White 50x50mm with 110mm fly lead
MM1001WW 1W LED Module 50x50mm Warm White 230V~

MM1001WW 1W LED Module 50x50mm Warm White 230V~

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MM1001WW
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £14.42

Gross price

£17.30

1W warm white LED module for Click New Media plates. Euro-sized 50x50mm form factor, pre-wired with 110mm fly-lead (2G 0.75mm² H03VVH2-F cable).

  • Voltage: 230V~ 50Hz
  • Output: 1W warm white LED
  • IP20, double insulated
  • Polycarbonate diffuser and housing
  • Operates -5 to +40°C
  • Minimum back box depth 25mm (35mm flat plate)
Specifications

Operating Voltage

230V~ 50Hz

Power Output

1W

LED Colour

Warm White

Module Dimensions

50 (W) x 50 (H) x 30 (D) mm

IP Rating

IP20

Fly-Lead Cable Length

110mm

Cable Specification

2G 0.75mm² H03VVH2-F

Double Insulated

Yes

Operational Temperature

-5 to +40°C

Minimum Back Box Depth

25mm (35mm flat plate)

Diffuser Material

Polycarbonate

Housing Material

Polycarbonate

Warranty

2 years

What's included

1x LED Module 1W with fly lead

Installation instructions

Documents

datasheet MM1001WW Datasheet

Frequently asked questions

Will this fit other brand euro plates?

Yes, euro modules are interchangeable across brands. This 50x50mm module fits standard euro grid apertures from all manufacturers.

What depth back box do I need?

Minimum 25mm for standard back boxes. For flat plate installations, use 35mm depth back boxes.

What is the fly lead connection?

The module comes pre-wired with a 110mm cable (2G 0.75mm² H03VVH2-F) that connects to the mains supply, eliminating the need for terminal connections on the module itself.

What applications is this LED module suitable for?

This 1W warm white LED indicator is ideal for hallway indication, stair lighting, location marking, or subtle ambient lighting in domestic and light commercial installations.

How do modules attach to plates?

The module clips directly into the 50x50mm aperture on euro grid plates. No additional fixings required.
