MM405WH

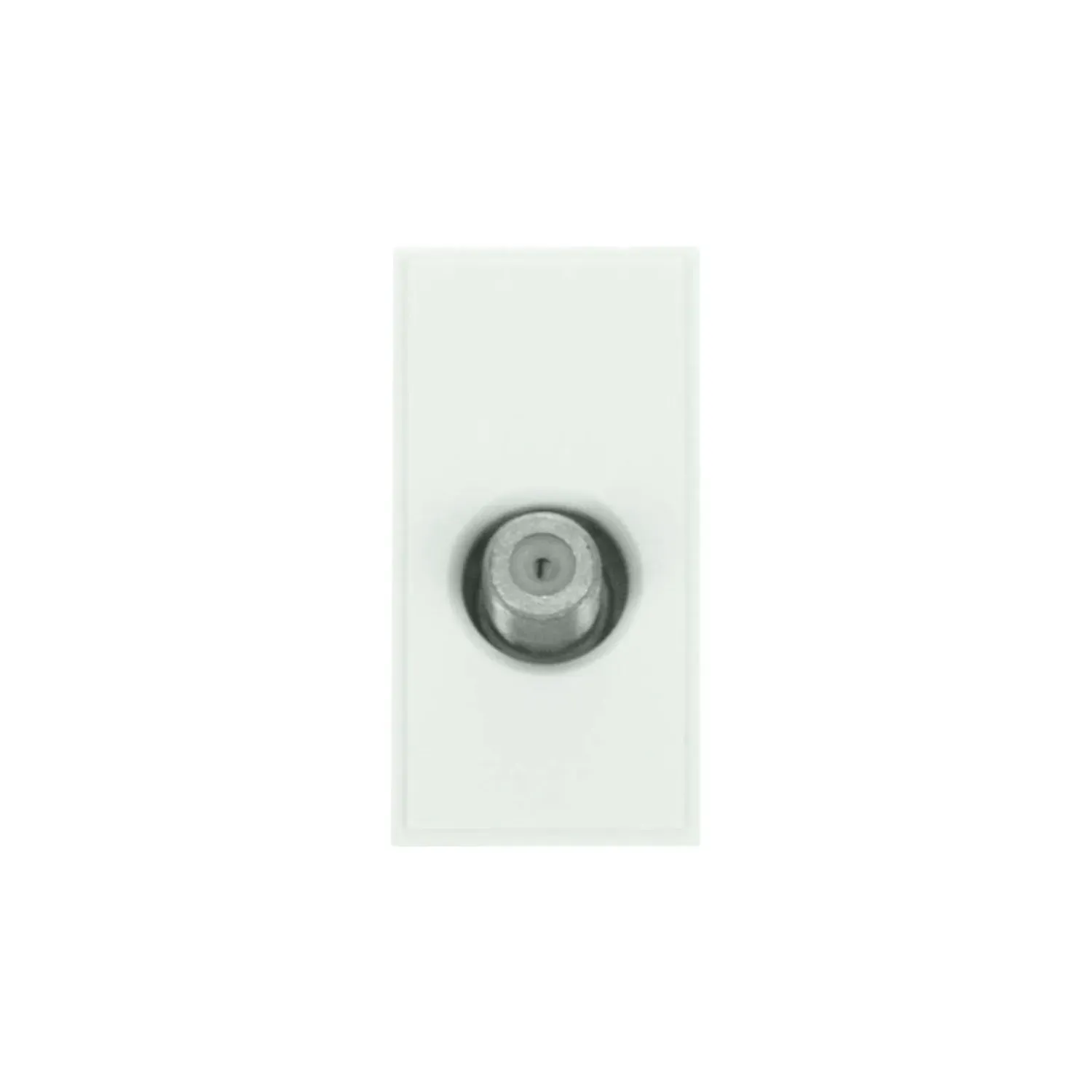

Single Female Satellite Module White - MM405WH

Photo is representative

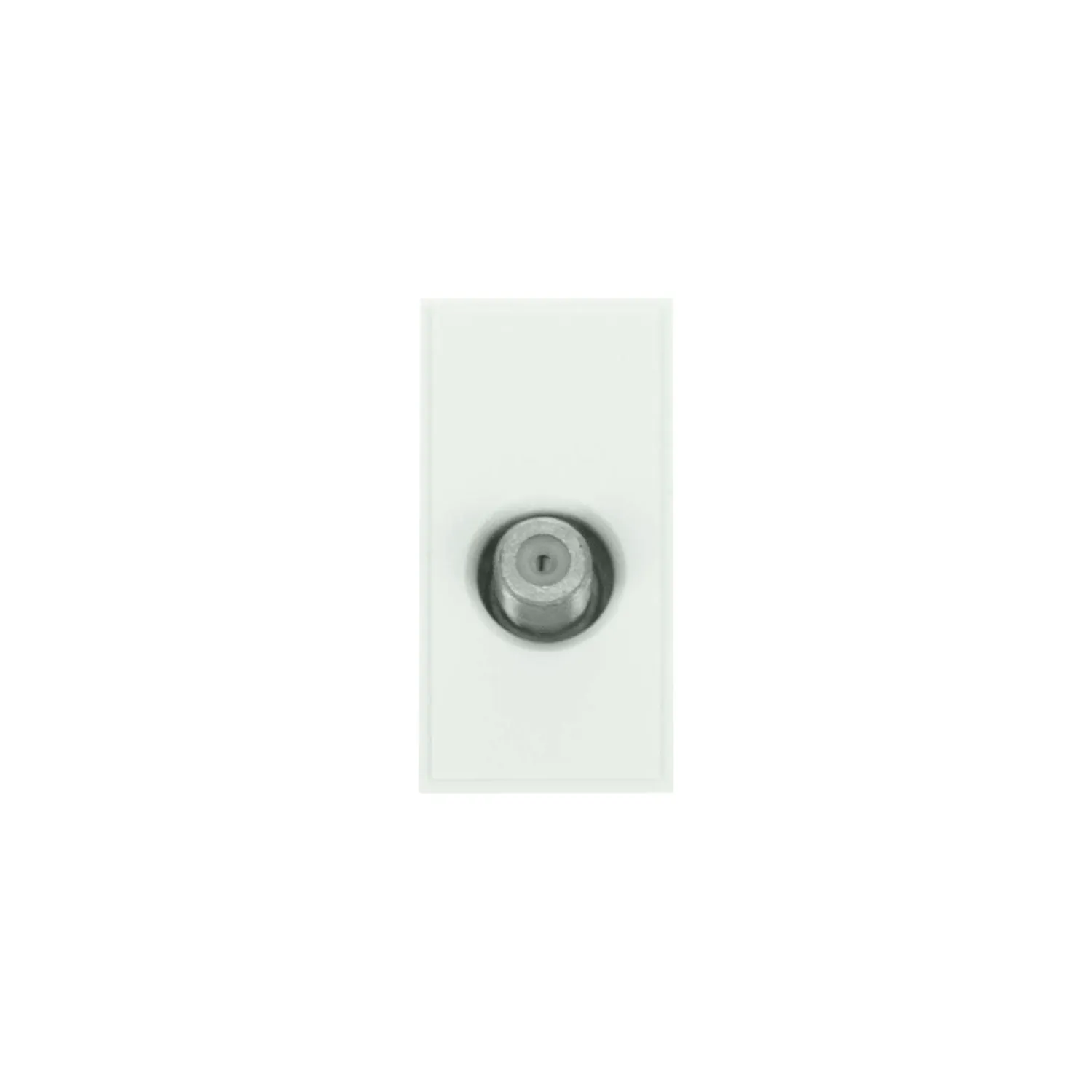

MM405WH
Single Female Satellite Module White - MM405WH

Single Female Satellite Module White - MM405WH

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code MM405WH
GTIN —
Stock status: In stock

priced individually

Net price: £8.61

Gross price

£10.33

Single female satellite module. Type F connection, shielded design. Enables 2-way signal transmission for satellite TV distribution systems.

  • Type F connection
  • Shielded
  • Non-isolated operation
  • Screw termination
  • IP20 rated
Specifications

Product Code

MM405WH

Description

Single Female Satellite Module

Colour

Polar White

Connection Type

Type F

Termination Type

Screw

Shielded

Yes

Non-Isolated

Yes

Ingress Protection

IP20

Dimensions (mm)

25 (W) x 50 (H) x 23 (D)

Overall Dimensions (mm)

25 (W) x 50 (H) x 30.5 (D)

Minimum Back Box Depth (mm)

25 (35 Flat Plate)

Operational Temperature Range

-5 to +40°C

Warranty

2 years

Documents

datasheet MM405WH Datasheet

Frequently asked questions

Will this module fit other brand euro grid plates?

Yes, this is a standard 25x50mm euro module that fits all euro grid plate systems including BG, MK, Knightsbridge, and other manufacturers. Euro modules are designed to be cross-compatible across brands.

What back box depth do I need for installation?

Minimum 25mm back box depth is required for standard installations. If using flat plate configurations, increase to 35mm minimum to accommodate the 30.5mm overall depth including terminals.

What is the difference between isolated and non-isolated satellite modules?

Non-isolated modules like this one enable 2-way signal transmission, which is required for modern satellite systems that send control signals back to the dish (such as Sky Q or multi-room setups). Isolated modules only allow 1-way signal transmission from the dish.

Can I use this for both standard and HD satellite signals?

Yes, the Type F connector and shielded design support all satellite signal types including standard definition, high definition, and 4K satellite broadcasts. The shielding prevents signal interference for reliable reception.
