CMA017

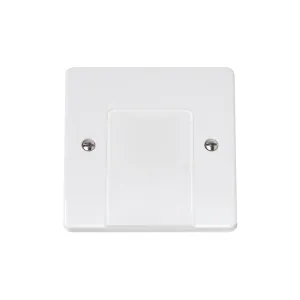

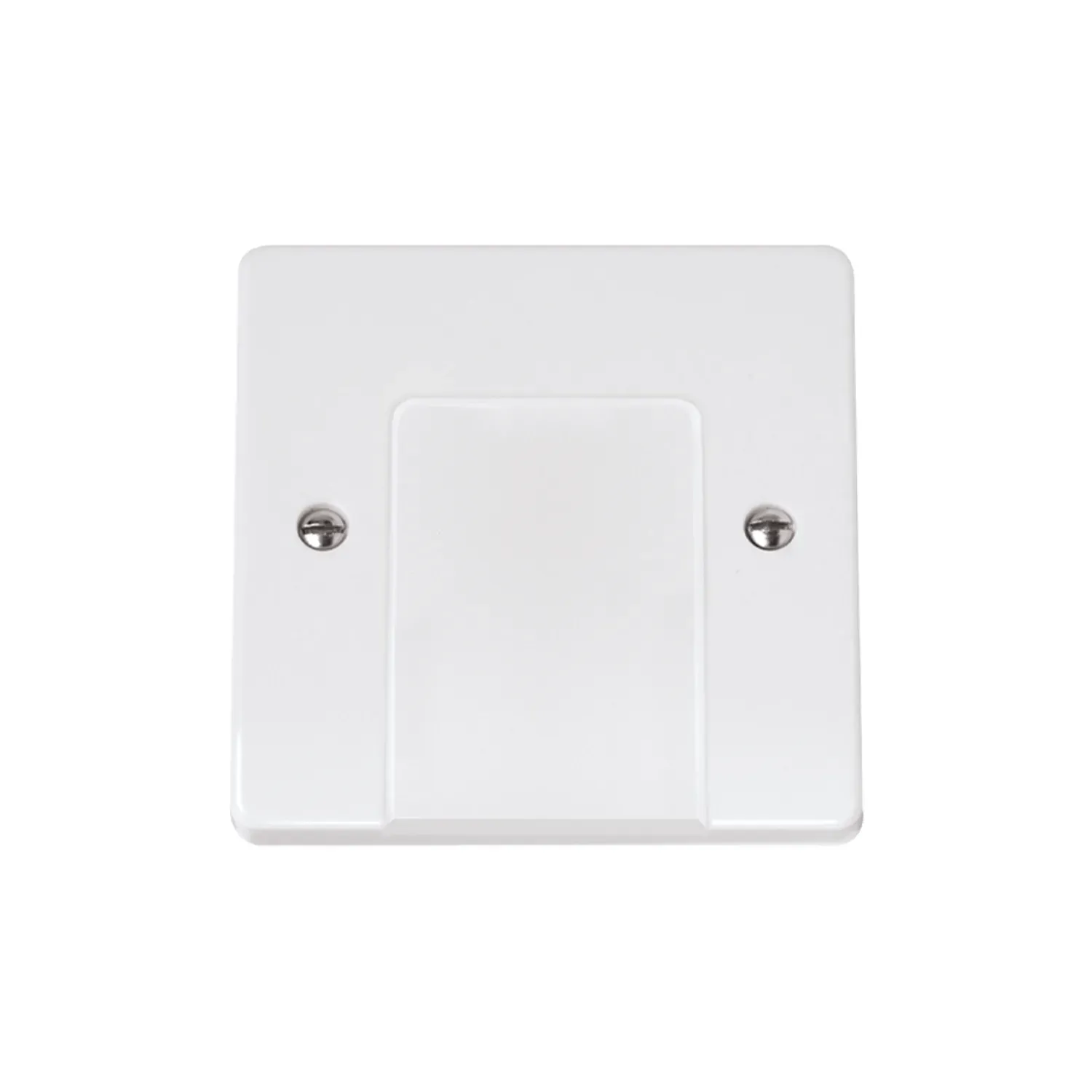

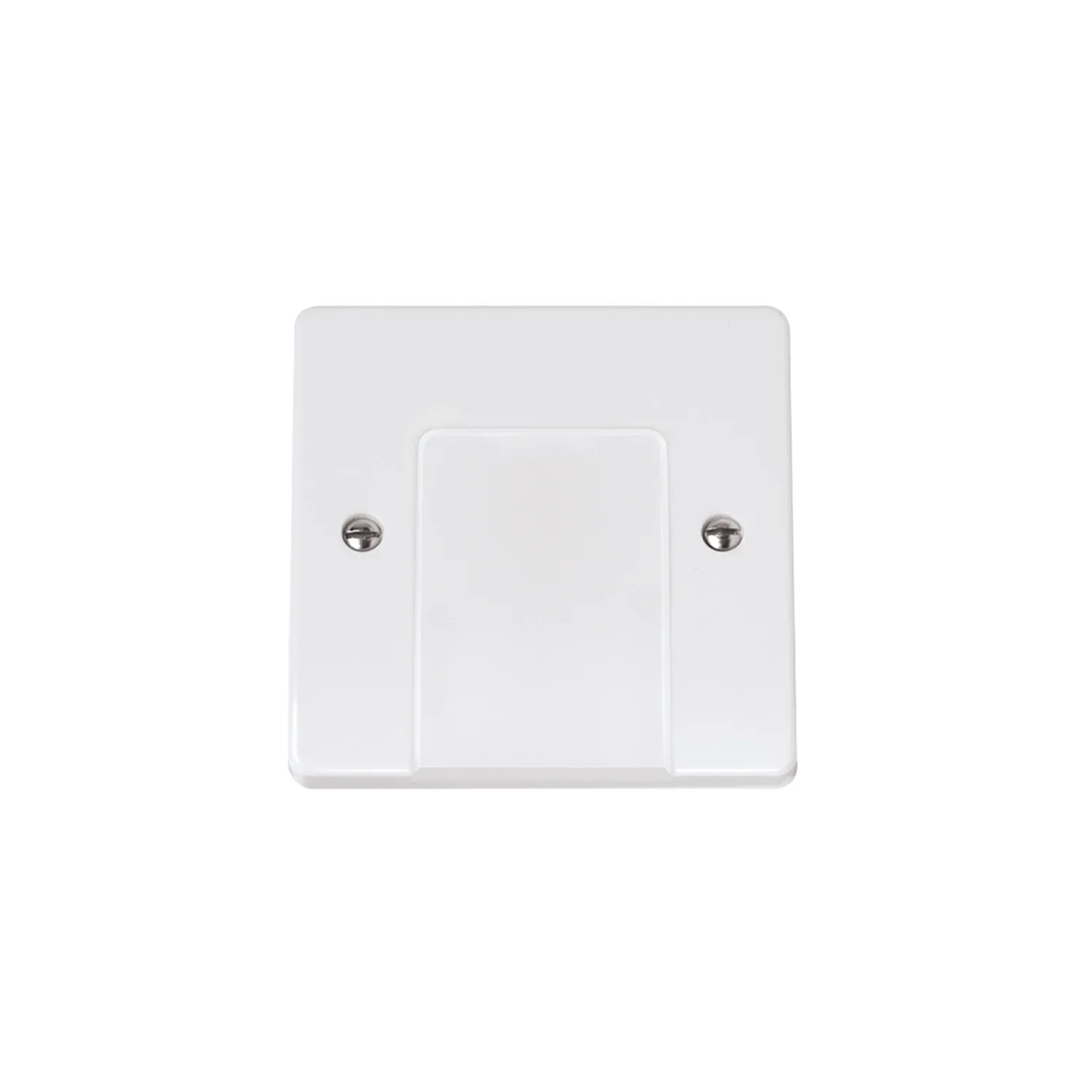

Mode Flex Outlet Plate 20A Polar White CMA017

Photo is representative

CMA017
Mode Flex Outlet Plate 20A Polar White CMA017

Click Mode Flex Outlet Plate 20A Polar White CMA017

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code CMA017
GTIN —
Stock status: In stock

priced individually

Net price: £2.26

Gross price

£2.71

Click Mode Flex Outlet Plate for the Click range. 20A rated, suitable for general outlet applications.

  • 20A resistive load rating
  • IP20 ingress protection
  • Screw terminals rated 2.5–4mm² solid cable
  • Rounded profile, polar white finish
  • Antimicrobial certified urea front plate
Specifications

Product Code

CMA017

Current Rating

20A

Operating Voltage

250V AC

Frequency

50Hz

IP Rating

IP20

Plate Dimensions

86 (W) x 86 (H) x 9.5 (D) mm

Termination Type

Screw Terminal

Terminal Size

Ø5 mm

Terminal Capacity

3 x 2.5 or 2 x 4 mm² solid

Terminal Torque

1.8 Nm

Operating Temperature

-5 to +40°C

Colour

Polar White

Compliance

BS 5733

Warranty

25 Years

Documents

datasheet CMA017 Datasheet

Frequently asked questions

What size cable will this flex outlet accept?

The flex outlet has a Ø10mm aperture suitable for flexible cables up to 10mm diameter. The internal terminals accept up to 3 x 2.5mm² or 2 x 4mm² solid conductors with 1.8Nm torque.

What is the minimum back box depth required?

This plate requires a minimum 16mm back box depth. Standard 25mm or 35mm metal boxes are suitable. The plate is 9.5mm deep overall.

What appliances is a 20A flex outlet suitable for?

Suitable for fixed appliances drawing up to 20A resistive load at 250V AC (5000W maximum). Commonly used for water heaters, immersion heaters, and other high-power fixed equipment where flex cable entry is required.

Can the flex exit from the bottom or front?

Yes, the flex outlet is available at both the front and bottom of the plate, allowing cable routing flexibility depending on installation requirements.
