Photo is representative

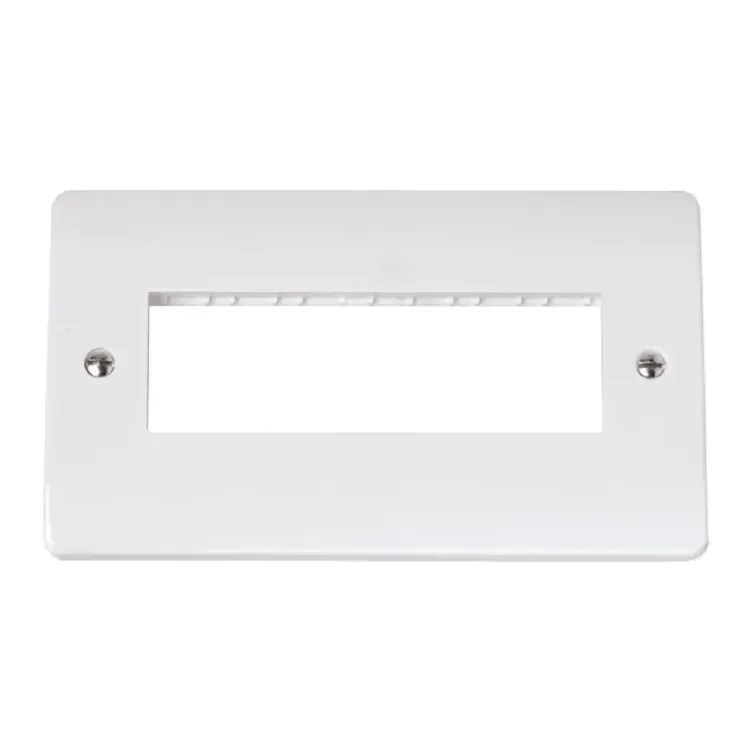

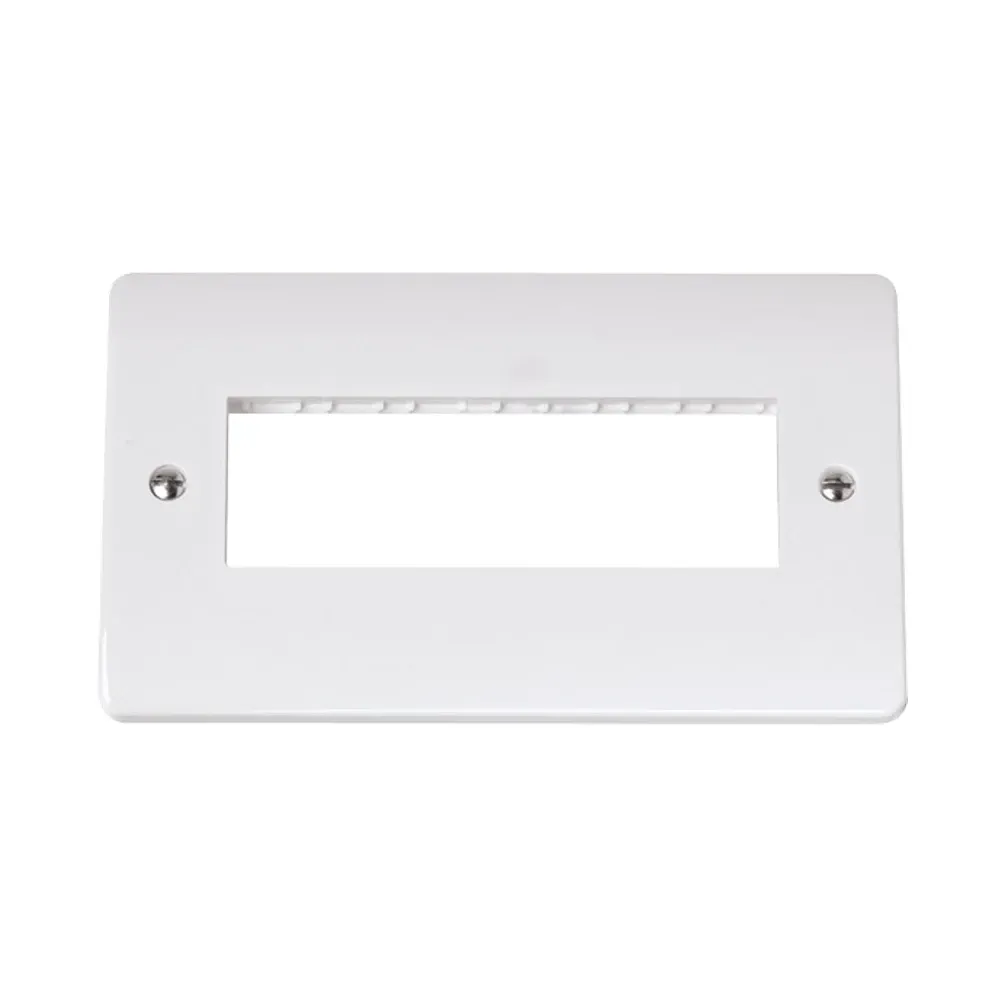

Click CMA426 2 Gang MiniGrid Unfurnished Plate 6 Apertures - White
2 gang MiniGrid unfurnished plate with 6 in-line apertures for maximum configuration flexibility. Accommodates up to 6 single-width or 3 double-width modules from the MiniGrid range. BS 5733 compliant modular system with antimicrobial silver ion protection and 25-year warranty. 146x86x9.5mm dimensions fit standard 35mm backbox installations. Professional-grade urea formaldehyde construction in polar white finish. UKCA marked for UK compliance. Ideal for creating custom switch and socket configurations in domestic and commercial installations where standard plates cannot meet specific requirements.
Product Information
Product Features
Installation Specifications
Mounting Requirements
Standard 86x86mm faceplate dimensions with 120.6mm horizontal fixing centres. Compatible with dual-gang backboxes, depth varies by module selection.
Module Configuration
6 apertures accept any combination of single/double-width modules. Each aperture secured with single 3.5mm screw through plate into backbox.
Temperature Rating
Operational range -5°C to +40°C suitable for most indoor environments. Urea formaldehyde construction maintains dimensional stability across temperature range.
Professional Applications
Custom Switch Arrays
Create bespoke lighting control panels with multiple switch modules. Ideal for commercial spaces requiring specific switching configurations not available in standard plates.
Mixed Media Installations
Combine data, audio, and power modules in single plate. Perfect for AV installations, meeting rooms, and home office setups requiring multiple connection types.
Retrofit Flexibility
Upgrade existing installations by changing modules without rewiring. Allows future-proofing installations as technology requirements change over time.
Frequently Asked Questions
-
What backbox depth is required for this MiniGrid plate?
Backbox depth depends on modules fitted. Single-width modules typically need 35mm depth, double-width modules may require 47mm. Check individual module specifications for exact requirements.
-
How many modules can I fit in the CMA426 plate?
The plate accepts up to 6 single-width modules or 3 double-width modules in any combination. Total apertures = 6, arranged in-line across the 146mm width.
-
Are Click MiniGrid modules compatible with other brands?
Click MiniGrid modules are proprietary to the Click system. Use only Click MiniGrid range modules to ensure proper fit, safety compliance, and warranty coverage.
-
Does this plate meet Part P Building Regulations?
Yes, when fitted with appropriate modules and installed correctly. BS 5733 compliance ensures the plate meets UK building regulations for domestic electrical installations.
-
What is the antimicrobial protection on this plate?
Silver ion antimicrobial technology provides 99.9% kill rate against MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae bacteria, plus 99.9% effectiveness against enveloped viruses.
