NYM-J 4 Core 1.5mm2 PVC Wiring Cable 300 500V Blue Brown Earth 500m Drum

Photo is representative

NYM-J 4 Core 1.5mm2 PVC Wiring Cable 300 500V Blue Brown Earth 500m Drum

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code BLUE415NYM5
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £1.38

Gross price

£1.65

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYM-J 4-core 1.5mm² PVC wiring cable supplied on a 500m drum. Rated 300/500V with solid copper Class 1 conductors. Suitable for dry, moist or wet areas including under plaster and in concrete.

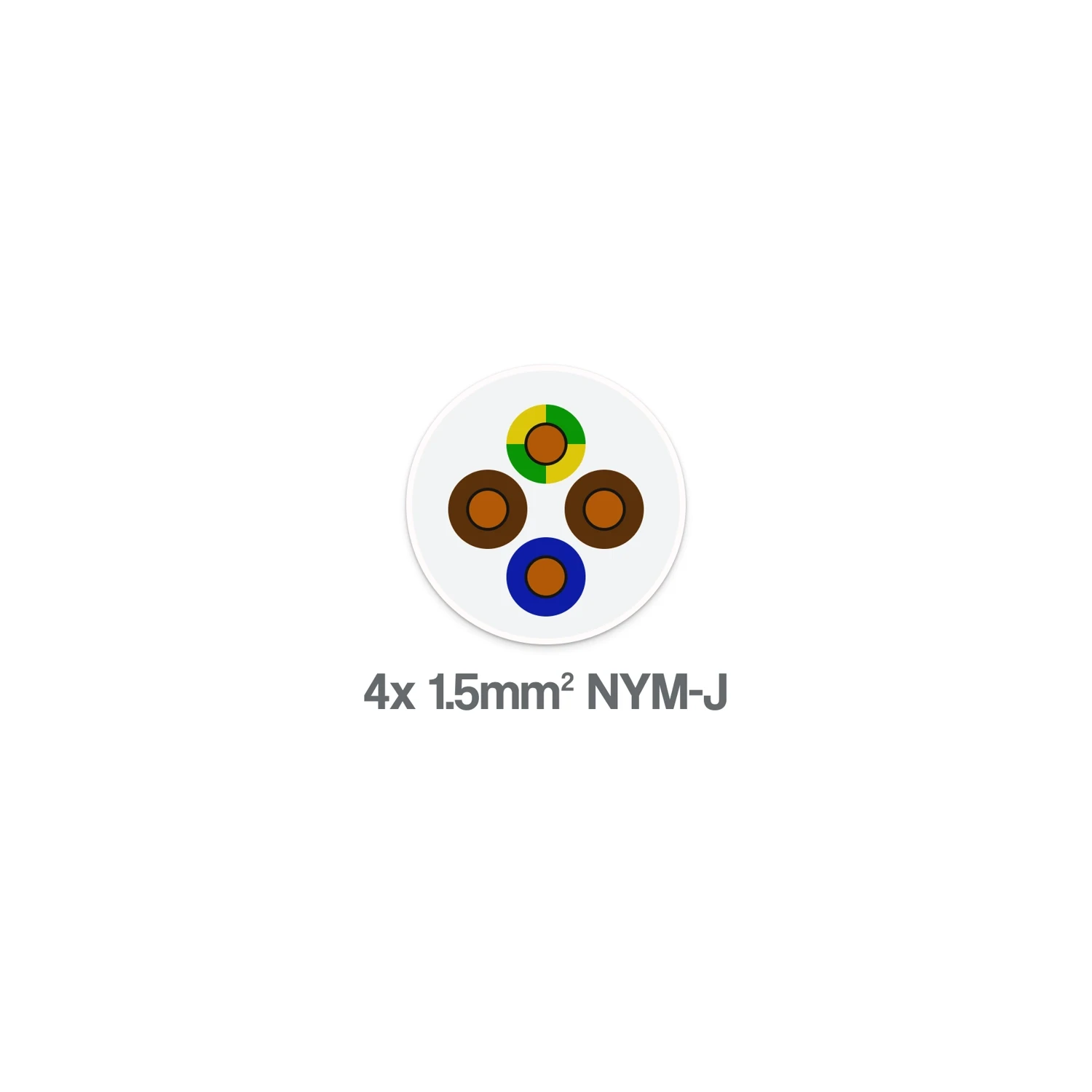

Core ID is Brown, Brown, Blue, Green/Yellow.

  • Conductor: 1.5mm² solid copper, Class 1 (1⁄1.38mm)
  • Voltage rating: 300/500V
  • Current capacity: 19A
  • Temp range: -30°C to +70°C (do not install below 0°C)
  • Standards: IEC 60502, VDE 0250, BS EN 50265-2-1
Specifications

Cable Type

NYM-J

Cores

4

Conductor Size

1.5mm²

Conductor Material

Solid copper, Class 1

Stranding

1/1.38mm

Insulation Material

PVC to IEC 60332-1-2

Sheath Material

PVC to IEC 60332-1-2

Voltage Rating

300/500V

Current Carrying Capacity

19A

Temperature Range

-30°C to +70°C

Installation Temperature

Not below 0°C

DC Resistance at 20°C

12.1 Ω/km

Voltage Drop

31 mV/A/m

Weight

140 kg/km

Core Identification

Brown, Brown, Blue, Green/Yellow

Standards

IEC 60502, VDE 0250, BS EN 50265-2-1
