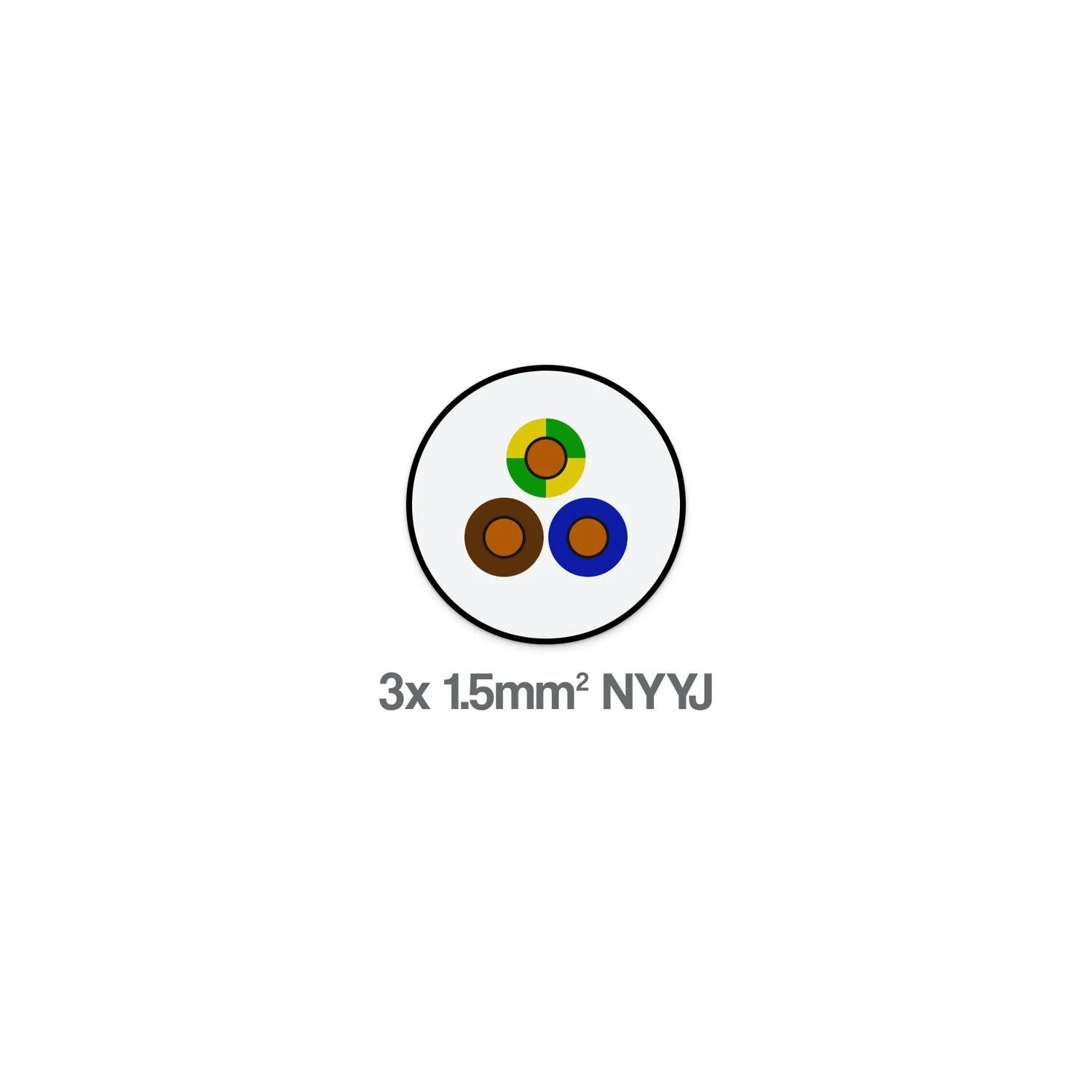

NYY-J 3 Core 1.5mm2 PVC Unarmoured Mains Cable 600 1000V Brown Blue Earth

Photo is representative

NYY-J 3 Core 1.5mm2 PVC Unarmoured Mains Cable 600 1000V Brown Blue Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £1.40

Gross price

£1.68

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J unarmoured 3 core 1.5mm² PVC cable for fixed power and control installations. Suitable for indoor use where mechanical damage risk is low — cable trays, conduit, or surface fixed to walls.

Class 1 solid copper conductors, PVC insulation and outer sheath throughout.

  • 600/1000V rated
  • 11mm overall diameter
  • Operating temp: -15°C to +70°C
  • Min bending radius: 12 x OD
  • Flame retardant to BS EN 60332-1-2
Specifications

Conductor Size

1.5 mm²

Number of Cores

3

Voltage Rating

600/1000V

Conductor Type

Class 1 solid copper

Stranding

1/1.38 mm

Insulation Material

PVC

Outer Sheath Material

PVC

Core Colours

Brown, Blue, Green/Yellow

Overall Diameter

11 mm

Weight

190 kg/km

Operating Temperature

-15°C to +70°C

Min Bending Radius

12 x overall diameter

Gland Size

20

Standards

VDE 0276-603, BS EN/IEC 60228, BS EN/IEC 60332-1-2, IEC 60502-1
