NYY-J 3 Core 6mm² PVC Unarmoured Power and Control Cable 600 1000V

Photo is representative

NYY-J 3 Core 6mm² PVC Unarmoured Power and Control Cable 600 1000V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 36NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £5.14

Gross price

£6.17

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J 3 core 6mm² unarmoured cable for fixed indoor power and control installations. Suitable for cable trays, conduit, and wall mounting where mechanical damage risk is low. Not suitable for direct burial.

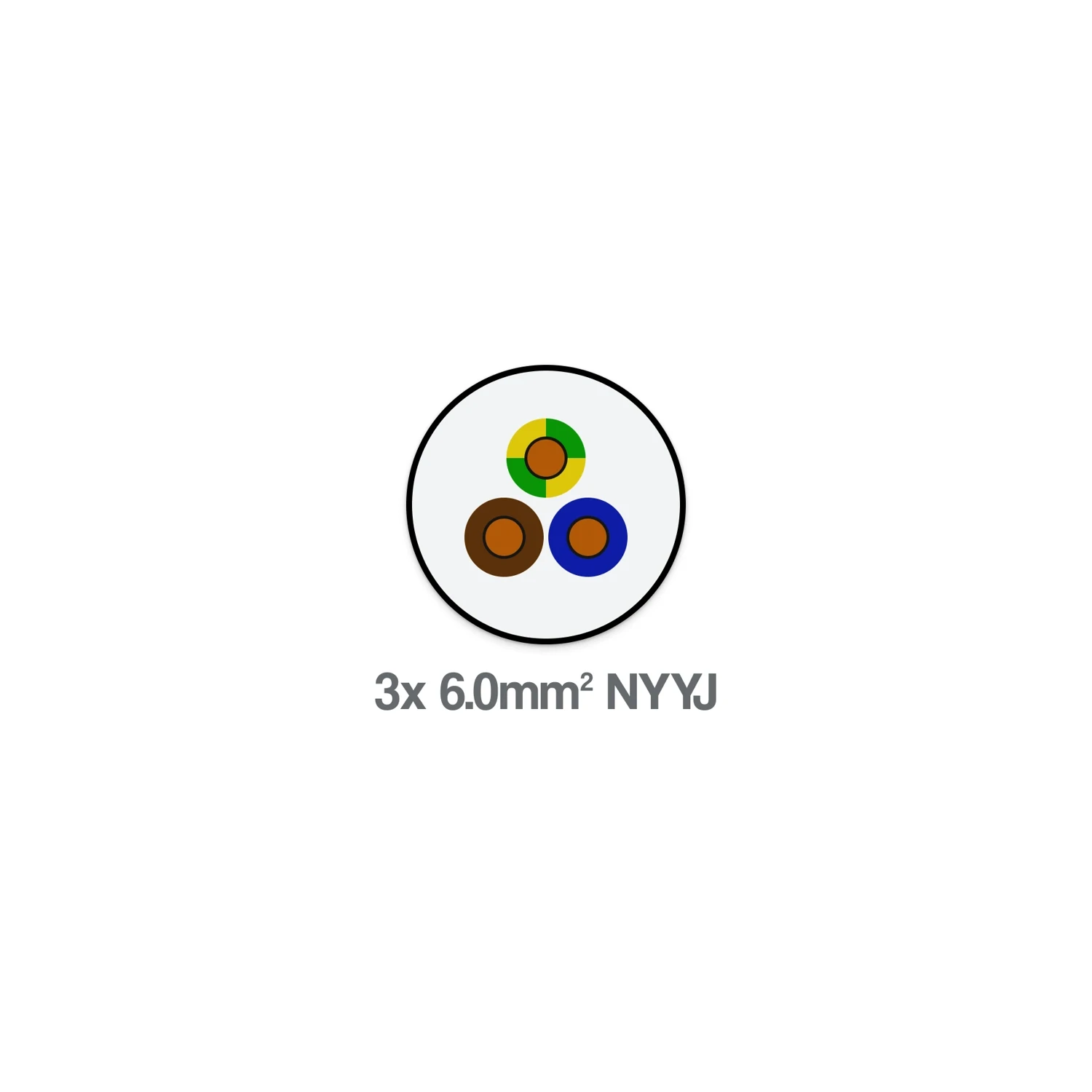

Class 1 solid copper conductors, PVC insulation and PVC outer sheath. Cores coloured Brown, Blue, and Green/Yellow.

  • Voltage rating: 600/1000V
  • Overall diameter: 14.8mm
  • Min. bending radius: 12 x OD
  • Operating temp: -15°C to +70°C
  • Gland size: 25
Specifications

Voltage Rating

600/1000V

Conductor Size

6mm²

Number of Cores

3

Conductor Type

Class 1 solid copper

Stranding

1/2.76mm

Core Colours

Brown, Blue, Green/Yellow

Insulation Material

PVC

Filler Material

PVC

Outer Sheath Material

PVC

Overall Diameter

14.8mm

Weight

420 kg/km

Min. Bending Radius

12 x overall diameter

Operating Temperature

-15°C to +70°C

Gland Size

25

Standards

VDE 0276-603, BS EN/IEC 60228, BS EN/IEC 60332-1-2, IEC 60502-1
