NYY-J 4 Core 2.5mm² Unarmoured PVC Power Cable 600 1000V

Photo is representative

NYY-J 4 Core 2.5mm² Unarmoured PVC Power Cable 600 1000V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 425NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £2.78

Gross price

£3.33

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J unarmoured power and control cable, 4 core 2.5mm². Rated 600/1000V with Class 1 solid copper conductors and full PVC insulation, filler, and outer sheath.

Suited for fixed installations on cable tray, in conduit, or surface-fixed to walls indoors where mechanical damage risk is low.

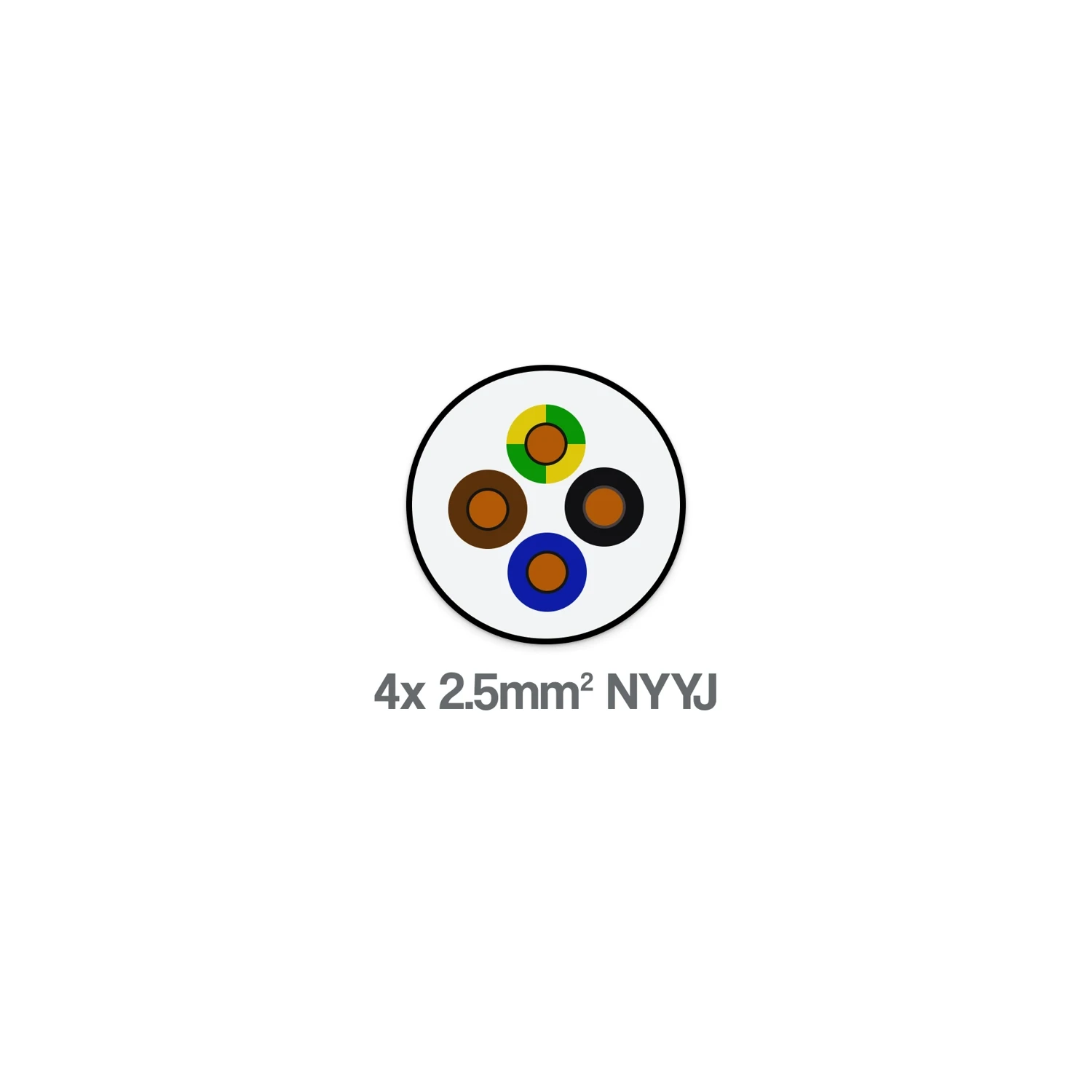

  • 4 cores: Brown, Blue, Black, Green/Yellow
  • OD: 14.8mm — gland size 25, nylon cleat 0.6
  • Min. bending radius: 12 x OD
  • Operating temp: -15°C to +70°C
  • Flame retardant to BS EN 60332-1-2
Specifications

Voltage Rating

600/1000V

Conductor Size

2.5mm²

Number of Cores

4

Conductor Type

Class 1 solid copper

Stranding

1/2.25mm

Insulation Material

PVC

Filler Material

PVC

Outer Sheath Material

PVC

Core Colours

Brown, Blue, Black, Green/Yellow

Overall Diameter

14.8mm

Weight

400 kg/km

Minimum Bending Radius

12 x Overall Diameter

Operating Temperature

-15°C to +70°C

Flame Retardancy

BS EN 60332-1-2

Standards

VDE 0276-603, BS EN/IEC 60228, BS EN/IEC 60332-1-2, IEC 60502-1
