NYY-J 3 Core 2.5mm² 600 1000V Unarmoured PVC Power Cable Brown Blue Earth

Photo is representative

NYY-J 3 Core 2.5mm² 600 1000V Unarmoured PVC Power Cable Brown Blue Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 325NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £2.41

Gross price

£2.89

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J unarmoured 3 core 2.5mm² power and control cable rated 0.6/1kV. Suited for fixed indoor installations where mechanical damage risk is low — cable tray, conduit, or wall-fixed runs.

Class 1 solid copper conductors with PVC insulation, PVC filler, and PVC outer sheath. Flame retardant to BS EN 60332-1-2.

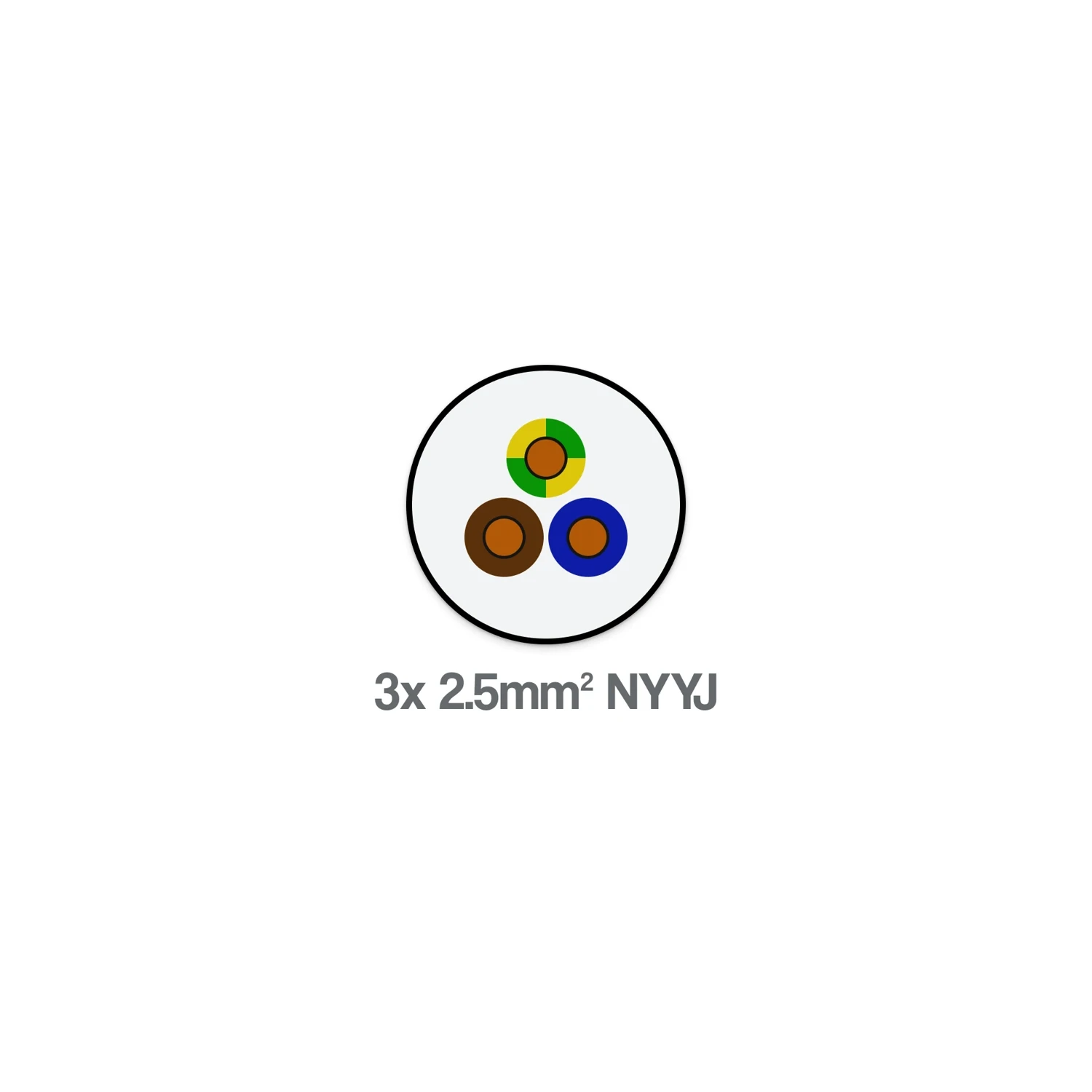

  • 3 cores: Brown, Blue, Green/Yellow
  • OD: 11.9mm — gland size 20
  • Min. bending radius: 12 × OD
  • Operating temp: -15°C to +70°C
  • Standards: VDE 0276-603, IEC 60502-1, BS EN/IEC 60228, BS EN/IEC 60332-1-2
Specifications

Voltage Rating

600/1000V

Conductor Size

2.5mm²

Number of Cores

3

Conductor Type

Class 1 solid copper

Stranding

1/1.78mm

Core Colours

Brown, Blue, Green/Yellow

Insulation

PVC

Outer Sheath

PVC

Overall Diameter

11.9mm

Gland Size

20

Min. Bending Radius

12 × overall diameter

Operating Temperature

-15°C to +70°C

Flame Retardancy

BS EN 60332-1-2

Standards

VDE 0276-603, IEC 60502-1, BS EN/IEC 60228, BS EN/IEC 60332-1-2
