NYY-J 5 Core 1.5mm2 Unarmoured PVC Power and Control Cable 600 1000V

Photo is representative

NYY-J 5 Core 1.5mm2 Unarmoured PVC Power and Control Cable 600 1000V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 515NYYJ
GTIN —
Stock status: In stock

priced per metre

Net price: £2.33

Gross price

£2.79

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

NYY-J unarmoured 5 core 1.5mm² power and control cable rated at 600/1000V. Suited to fixed indoor installations — cable trays, conduit, or wall-fixed. Not for direct burial or areas with mechanical damage risk.

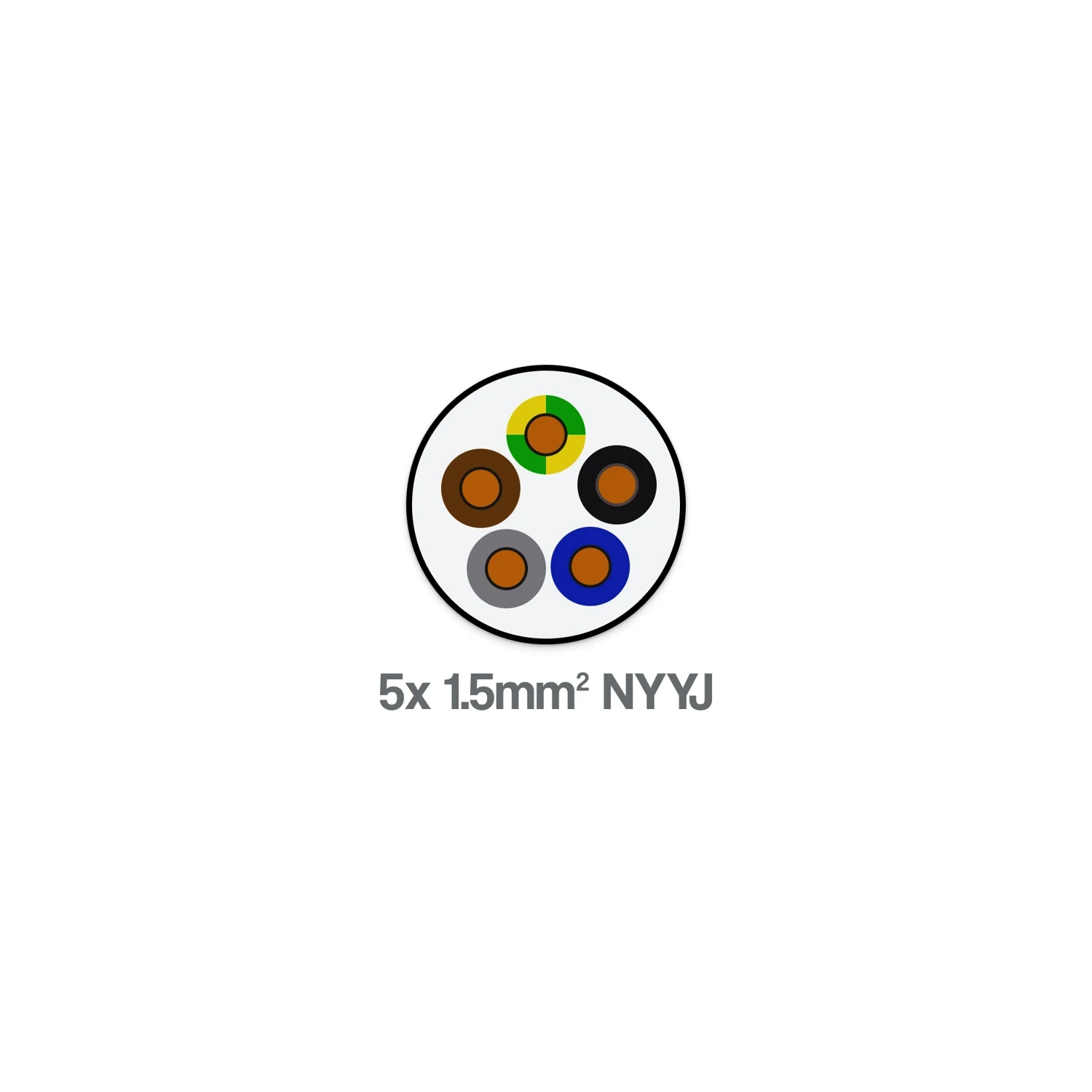

Class 1 solid copper conductors with PVC insulation, filler, and outer sheath. Core colours: Brown, Blue, Black, Grey, Green/Yellow.

  • 12.8mm overall diameter
  • Min. bending radius: 12 × OD
  • Operating temp: −15°C to +70°C
  • Flame retardant to BS EN 60332-1-2
  • Gland size: 20
Specifications

Voltage Rating

600/1000V

Conductor Size

1.5mm²

Number of Cores

5

Conductor Type

Class 1 solid copper

Stranding

1/1.38mm

Overall Diameter

12.8mm

Minimum Bending Radius

12 × overall diameter

Operating Temperature

−15°C to +70°C

Insulation Material

PVC

Outer Sheath Material

PVC

Core Colours

Brown, Blue, Black, Grey, Green/Yellow

Flame Retardancy

BS EN 60332-1-2

Weight

270 kg/km

Standards

VDE 0276-603, BS EN/IEC 60228, BS EN/IEC 60332-1-2, IEC 60502-1
