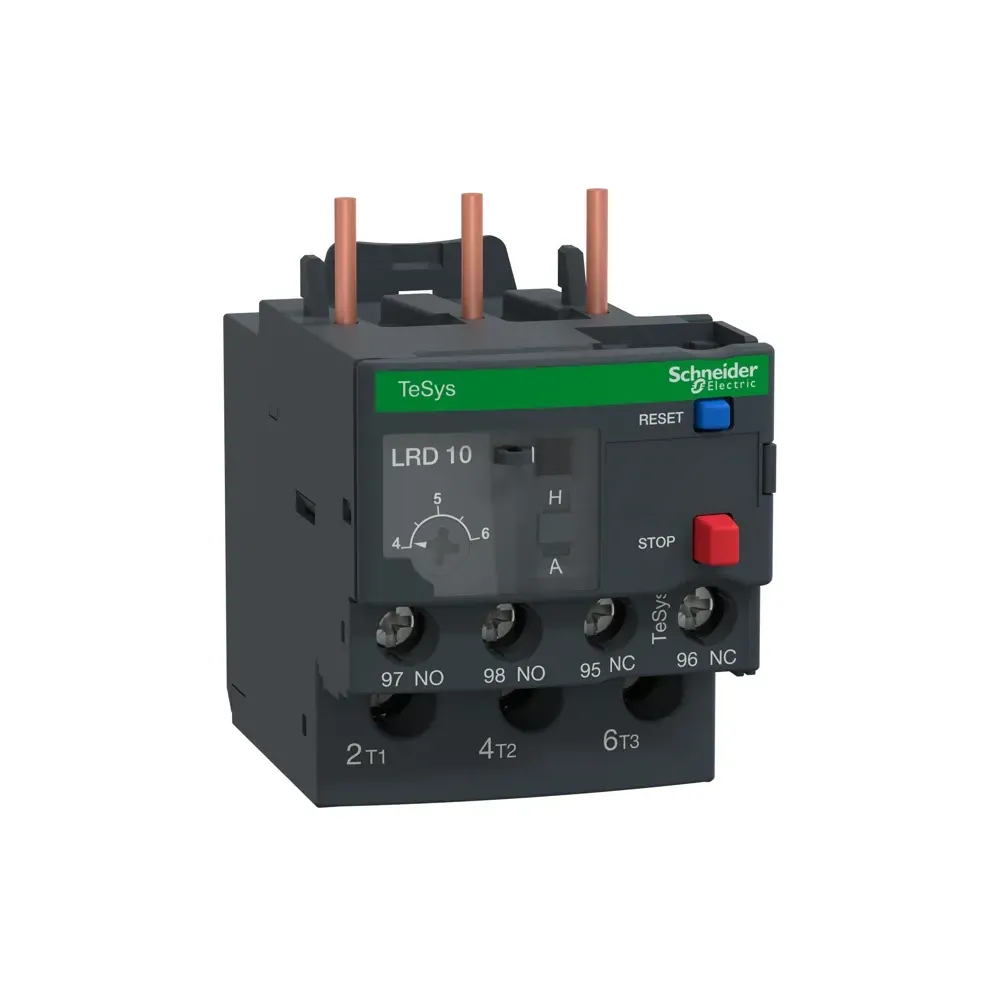

Schneider Electric LRD10 Thermal Overload Relay 4-6A Class 10A

Schneider Electric 4-6 A thermal overload relay (LRD10), TeSys Deca series, for motor protection. Class 10A trip characteristics, rated to 690 V AC (0–400 Hz). Features 1NO+1NC auxiliary contacts, manual reset (blue push-button), phase-failure sensitivity and temperature compensation. Screw-clamp terminals accept 1.5–10 mm² power conductors with 1.7 N·m tightening torque. Tripping threshold 1.14 ±0.06×Ir, IP20 protection and ambient operation −20…60 °C without derating. Direct mountable under TeSys D contactors (LC1D09–LC1D32) or on plate/rail with accessories.
