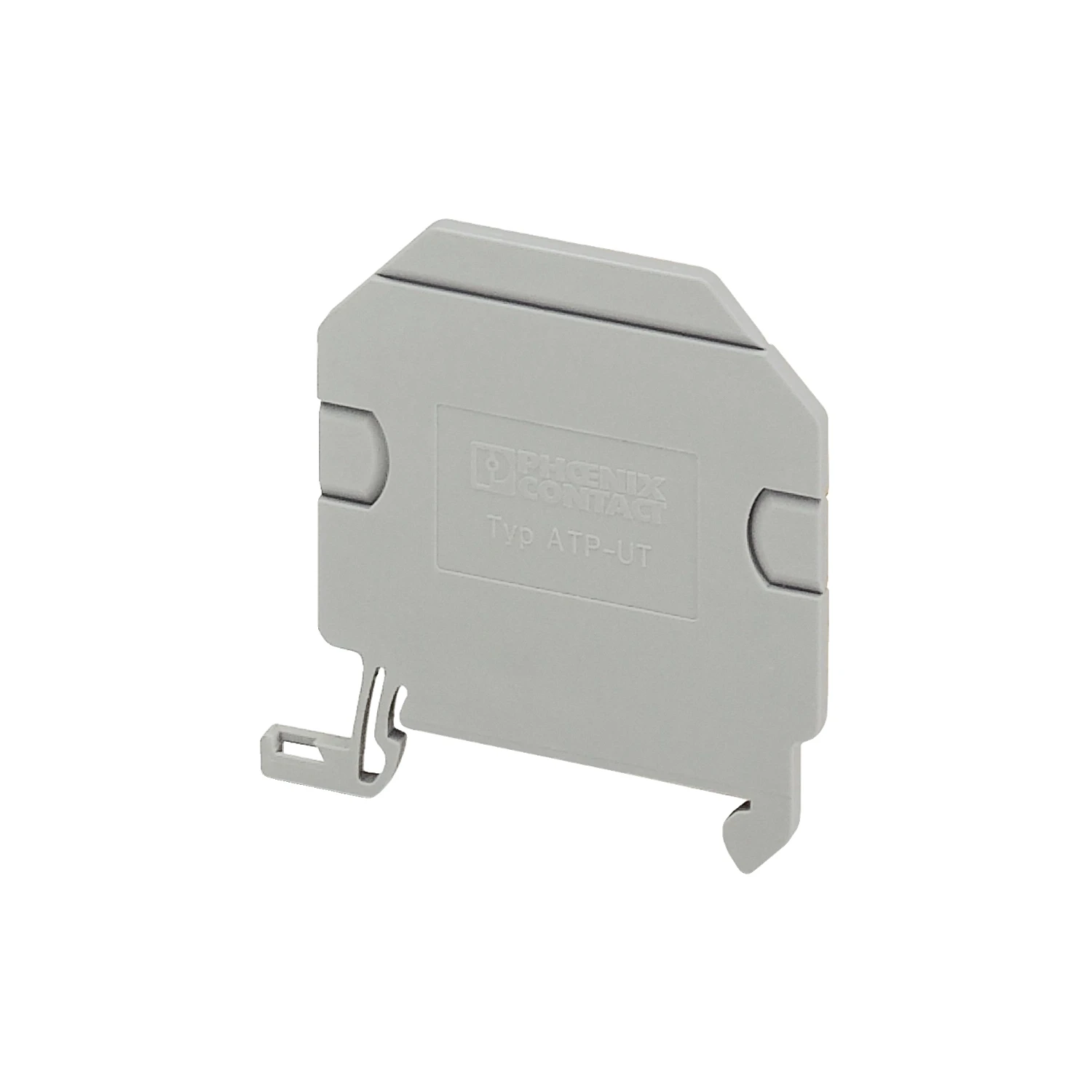

Phoenix Contact ATP-UT Partition Plate Grey for 2.5-10mm UT Terminals

Photo is representative

Phoenix Contact ATP-UT Partition Plate Grey for 2.5-10mm UT Terminals

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3047167
GTIN 4017918962159
Stock status: In stock

priced individually

Net price: £0.52

Gross price

£0.62

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Partition plate for Phoenix Contact UT series terminal blocks, sized for 2.5–10mm terminals. Fits between terminals to provide physical separation and electrical insulation within the block assembly.

Made from polyamide (PA), RAL 7042 grey, UL 94 V-0 rated.

  • Width: 2.2 mm
  • Height: 53.4 mm
  • Depth: 45.7 mm
  • Operating temp: -60 °C to +110 °C
  • Passes DIN EN 45545-2 fire protection requirements for rail vehicles (R22–R26, HL 1–HL 3)
Specifications

Material

PA (Polyamide)

Colour

Grey (RAL 7042)

Width

2.2 mm

Height

53.4 mm

Depth

45.7 mm

Flammability Rating

UL 94 V-0

Operating Temperature

-60 °C to +110 °C

Storage/Transport Temperature

-25 °C to +60 °C

Assembly Temperature

-5 °C to +70 °C

Operating Humidity

20% to 90%

Storage/Transport Humidity

30% to 70%

Insulation Material Temp Index (UL 746 B)

130 °C

DIN EN 45545-2 Fire Protection (R22–R26)

HL 1 – HL 3

Documents

datasheet Phoenix Contact 3047167 Datasheet
