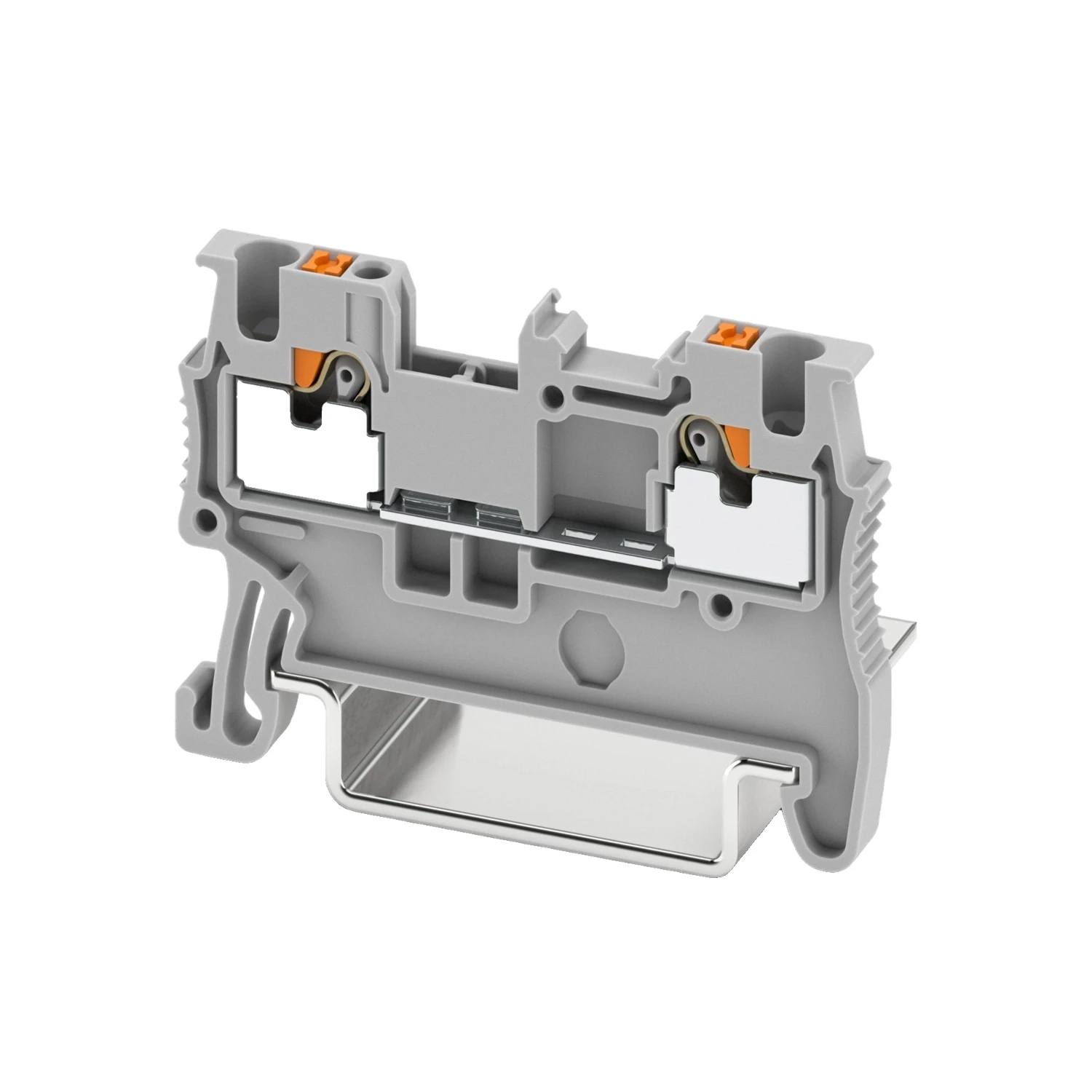

Phoenix Contact PT 1.5 S Push-In Feed-Through Terminal Block 500V Grey

Photo is representative

Phoenix Contact PT 1.5 S Push-In Feed-Through Terminal Block 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3208100
GTIN —
Stock status: In stock

priced individually

Net price: £0.78

Gross price

£0.94

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Push-in feed-through terminal from Phoenix Contact’s PT series. Single-row, single-potential, two-connection block rated at 500V and 17.5A. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Suitable for railway, machine building, and plant engineering panels — carries DIN EN 45545-2 fire protection ratings (HL 1–HL 3) and ATEX/IECEx certification (II 2 GD Ex eb IIC Gb).

  • Conductor range: 0.14–1.5mm² rigid and flexible, 26–16 AWG
  • Strip length: 8–10 mm
  • Rated surge voltage: 6 kV, Overvoltage Category III
  • Operating temp: -60°C to +110°C
  • UL 94 V-0 insulating body, PA construction
Specifications

Connection Method

Push-in connection

Nominal Voltage

500 V

Nominal Current

17.5 A

Rated Cross-Section

1.5 mm²

Conductor Cross-Section (rigid)

0.14 mm² - 1.5 mm²

Conductor Cross-Section (flexible)

0.14 mm² - 1.5 mm²

AWG Range

26 - 16

Stripping Length

8 mm - 10 mm

Rated Surge Voltage

6 kV

Overvoltage Category

III

Mounting Type

NS 35/7.5, NS 35/15

Width

3.5 mm

Height

45 mm

Depth

30.5 mm

Operating Temperature

-60 °C - 110 °C

Flammability Rating

UL 94 V-0

Insulating Material

PA

Colour

Gray (RAL 7042)

Connection Standard

IEC 60947-7-1

ATEX/IECEx Identification

II 2 GD Ex eb IIC Gb

Fire Protection (DIN EN 45545-2)

HL 1 - HL 3 (R22, R23, R24, R26)

Number of Connections

2

Potentials

1

Documents

datasheet Phoenix Contact 3208100 Datasheet
