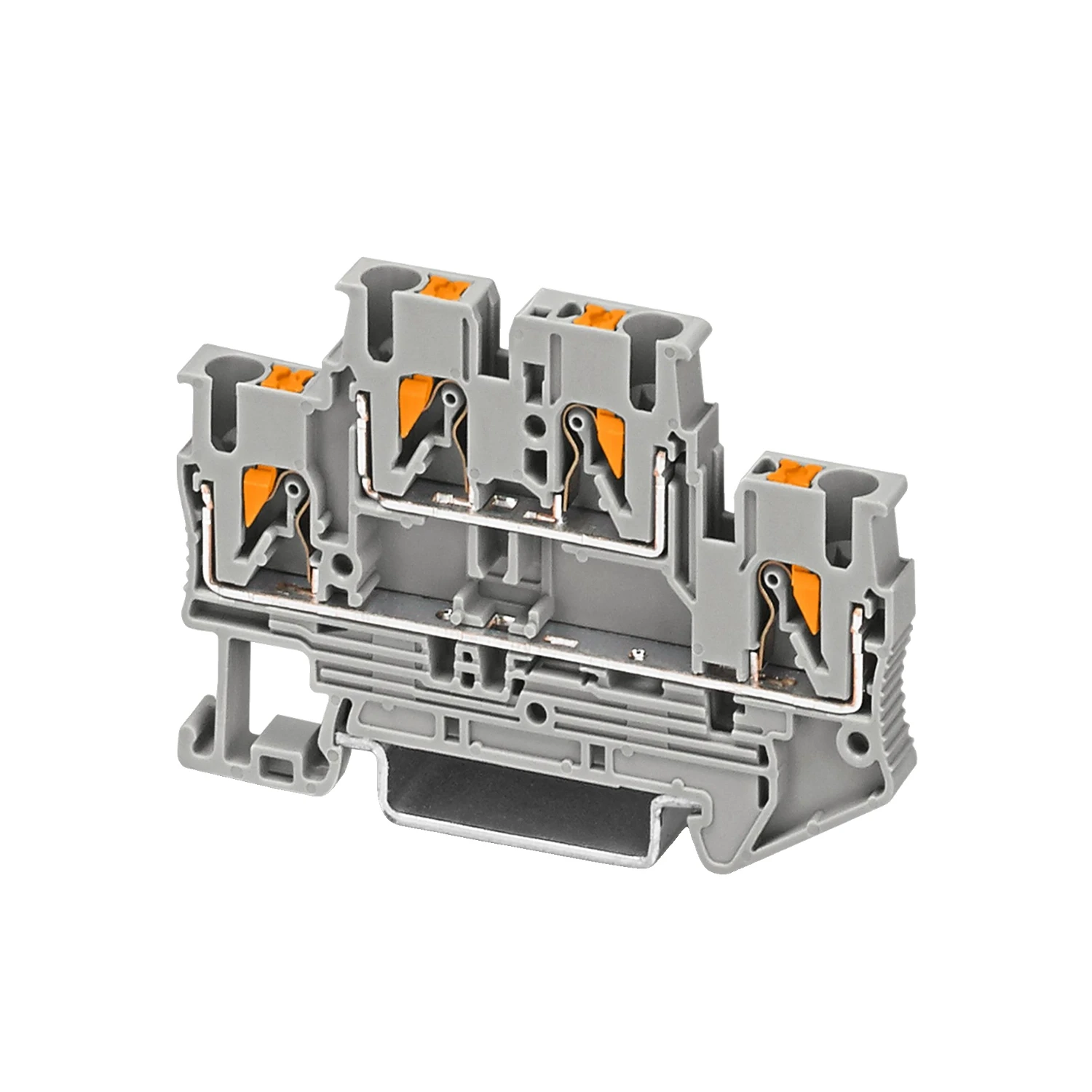

Phoenix Contact PTTB 2.5 Double Level Push-In Terminal Block 500V Grey
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3210567
GTIN
—
Stock status:
In stock
priced individually
Net price: £3.59
Gross price
£4.31
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Double-level push-in terminal from Phoenix Contact’s PT family. Two independent circuits in a single 5.2mm-wide housing — no tool needed for conductor insertion. Rated for railway industry use under DIN EN 45545-2 (HL 1–HL 3, R22–R26) and ATEX/IECEx certified (II 2 G Ex eb IIC Gb).
Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Four connections total, two per level, two potentials.
- Rated cross-section: 2.5 mm² / 22 A nominal
- Conductor range (rigid): 0.14–4 mm²
- Stripping length: 8–10 mm
- Operating temp: -60 °C to +110 °C
- Flammability: UL 94 V-0
