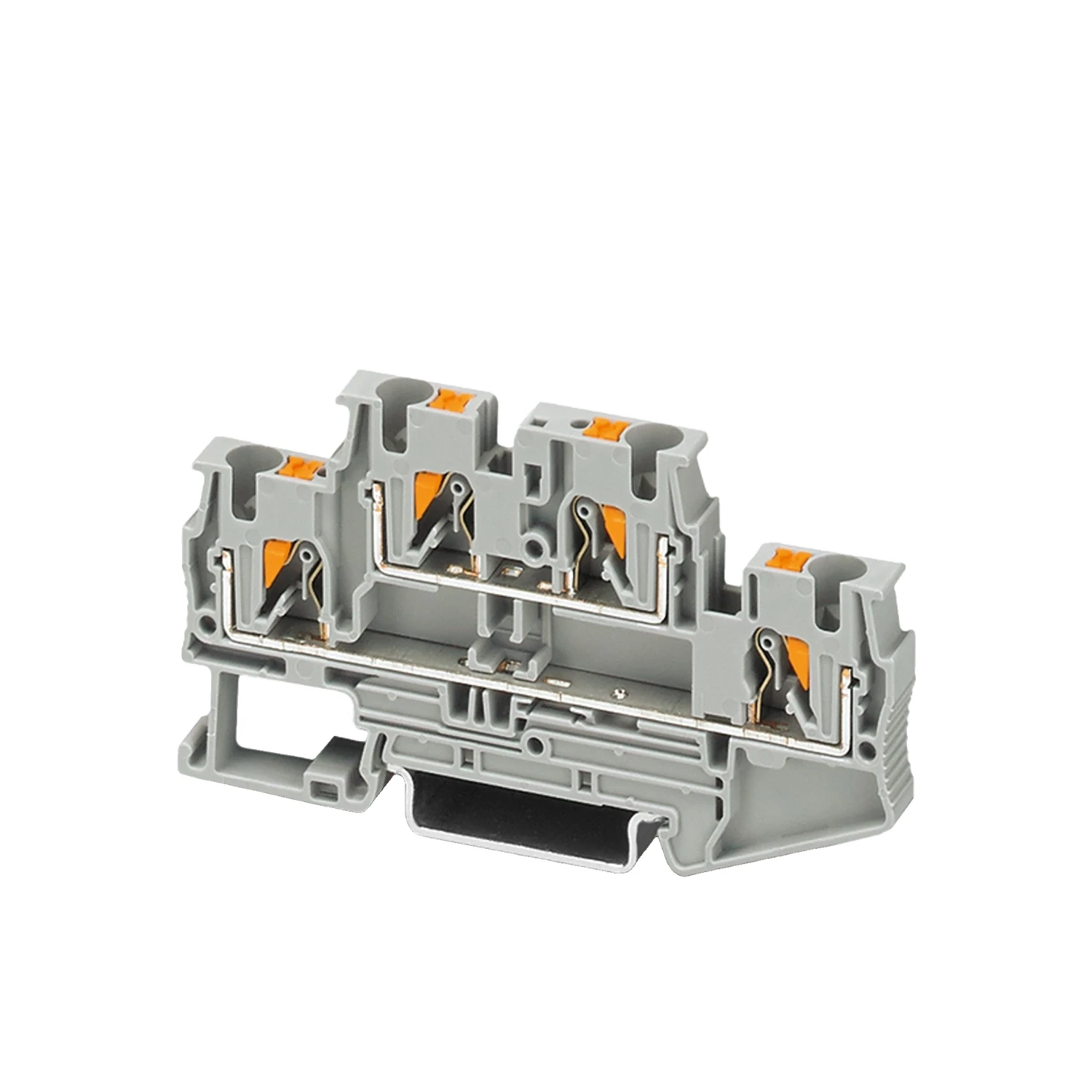

Phoenix Contact PTTB 4 Double Level Push-In Terminal Block 500V Grey
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3211786
GTIN
—
Stock status:
In stock
priced individually
More arriving soon
Net price: £1.89
Gross price
£2.27
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Double-level push-in terminal block from Phoenix Contact’s PT family. Two levels, two potentials, four connections per block. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail.
Push-in connection on both levels — no tool needed for termination. Accepts rigid and flexible conductors, including ferruled. ATEX/IECEx rated for Group II, Category 2G hazardous areas.
- Nominal voltage: 500 V | Rated surge voltage: 6 kV
- Nominal current: 28 A (4 mm²) | Max load: 32 A (6 mm² rigid)
- Conductor range: 0.2–6 mm² rigid/flexible, 24–10 AWG
- Stripping length: 10–12 mm
- Operating temp: -60 °C to +110 °C
- UL 94 V-0 insulation, PA housing, RAL 7042 grey
