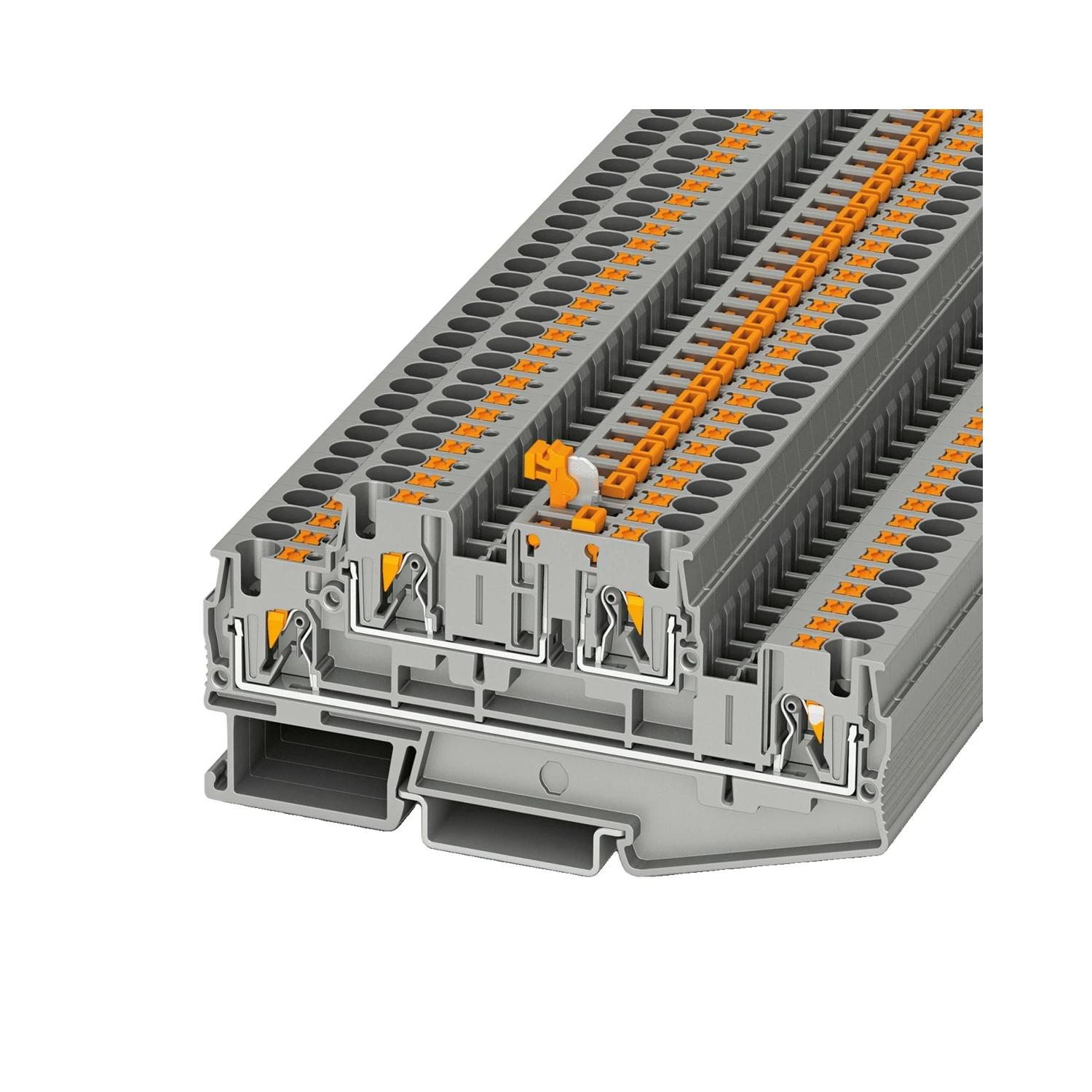

Phoenix Contact PTTB 4-MT 4mm Double Level Push-In Knife Disconnect Terminal Block 500V Gray
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3211913
GTIN
—
Stock status:
In stock
priced individually
Net price: £4.75
Gross price
£5.69
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Push-in knife disconnect terminal from Phoenix Contact’s PTTB range. Two connection levels, two separate potentials — suits plant engineering panels where in-circuit disconnection is needed without pulling conductors.
Knife disconnect lets you isolate circuits cleanly. Both levels use push-in connection; no screwdriver needed for conductor insertion on direct plug-in sizes.
- Nominal voltage: 500V, overvoltage category III
- Nominal current: 28A (level 1) / 20A (level 2)
- Conductor range: 0.2–6mm² rigid, 0.2–4mm² flexible (level 2)
- AWG range: 24–10 (level 1), 24–12 (level 2)
- Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail
- Width: 6.2mm | Height: 102.9mm
- PA insulator, UL 94 V-0, gray RAL 7042
