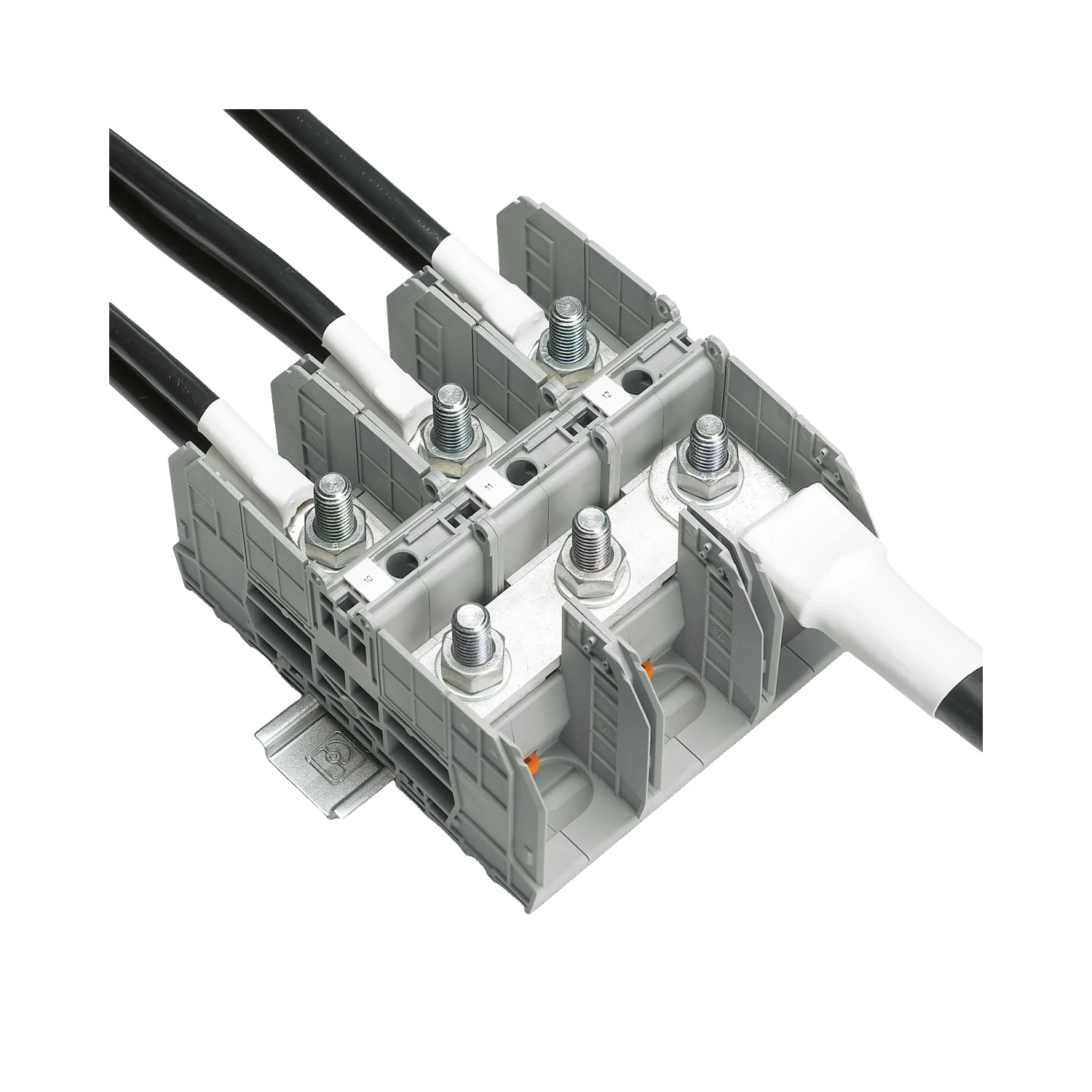

Phoenix Contact RBO 10 Bolt Connection Terminal Block 1000V 309A 150mm² Gray
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
3244614
GTIN
4046356583947
Stock status:
In stock
priced individually
Net price: £12.23
Gross price
£14.68
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Mon‐Fri · Subject to order volume Free delivery available 30 day returns
Phoenix Contact RBO 10 bolt connection terminal block for railway, machine building, and plant engineering. Mounts on NS 35⁄7.5 or NS 35⁄15 DIN rail. Rated 1000V nominal voltage and 309A with 150mm² conductors.
Accepts cable lugs to DIN 46234, DIN 46235, and DIN 46237. ATEX/IECEx rated: II 2 GD Ex eb IIC Gb. Tested to DIN EN 50155 for rail vehicle vibration and shock.
- Connection: M10 bolt, 10–20 Nm tightening torque
- Cross-section: 6–150mm² rigid and flexible
- Rated surge voltage: 8 kV, short-time withstand: 18 kA
- Operating temp: -60°C to +110°C
- Flammability: UL 94 V0, passes DIN EN 45545-2 HL1–HL3
